GE 20338 - Fan Installation Overview; Wiring and Assembly Diagram

7

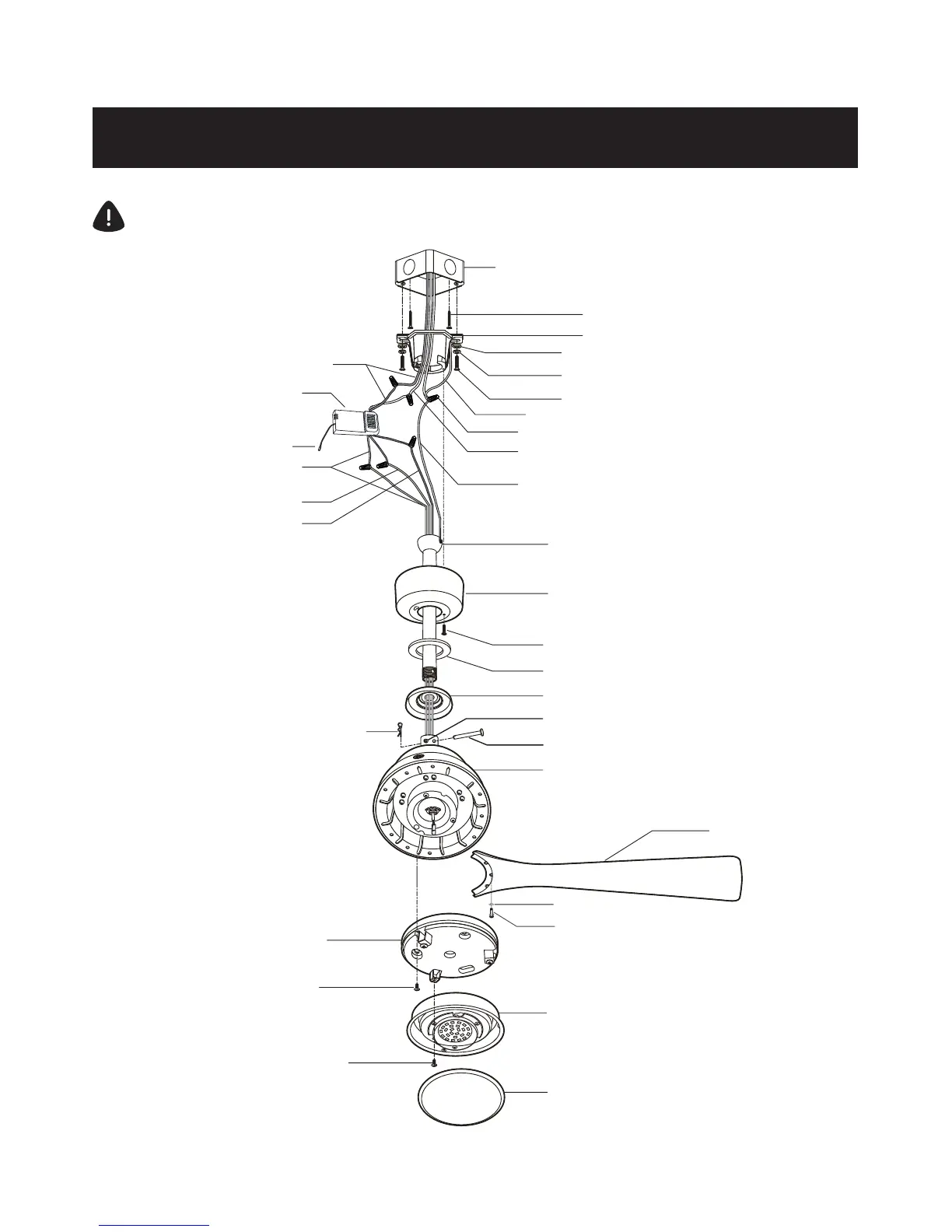

Fan installation drawing
WARNING: Review important safety instructions before installation
Outlet Box (Not Provided)
Hot Wire - Black
Receiver
White Wire
Blue Wire
Black Wire
Cotter Pin
Mounting Plate
Mounting Plate Screw
Light Kit Mounting Screw
Wood Screw (Long)
Mounting Bracket
Flat Washer
Spring Washer
Mounting Screw
Ground Wire from Mounting Bracket
Plastic Wire Nut
Neutral White Wire
Ground Wire from the Fan Motor Assembly
Ball/4.5” (11.4 cm) Downrod Assembly
Canopy
Canopy Mounting Sc rew
Canopy Bottom Co ver
Coupling Cover
Clevis Pin
Collar Set Screw
Fan Motor Assembly
LED Light Kit
Glass Shade
Blade
Blade Screw
w/spring washer
Blade flat washer
Antenna wire
