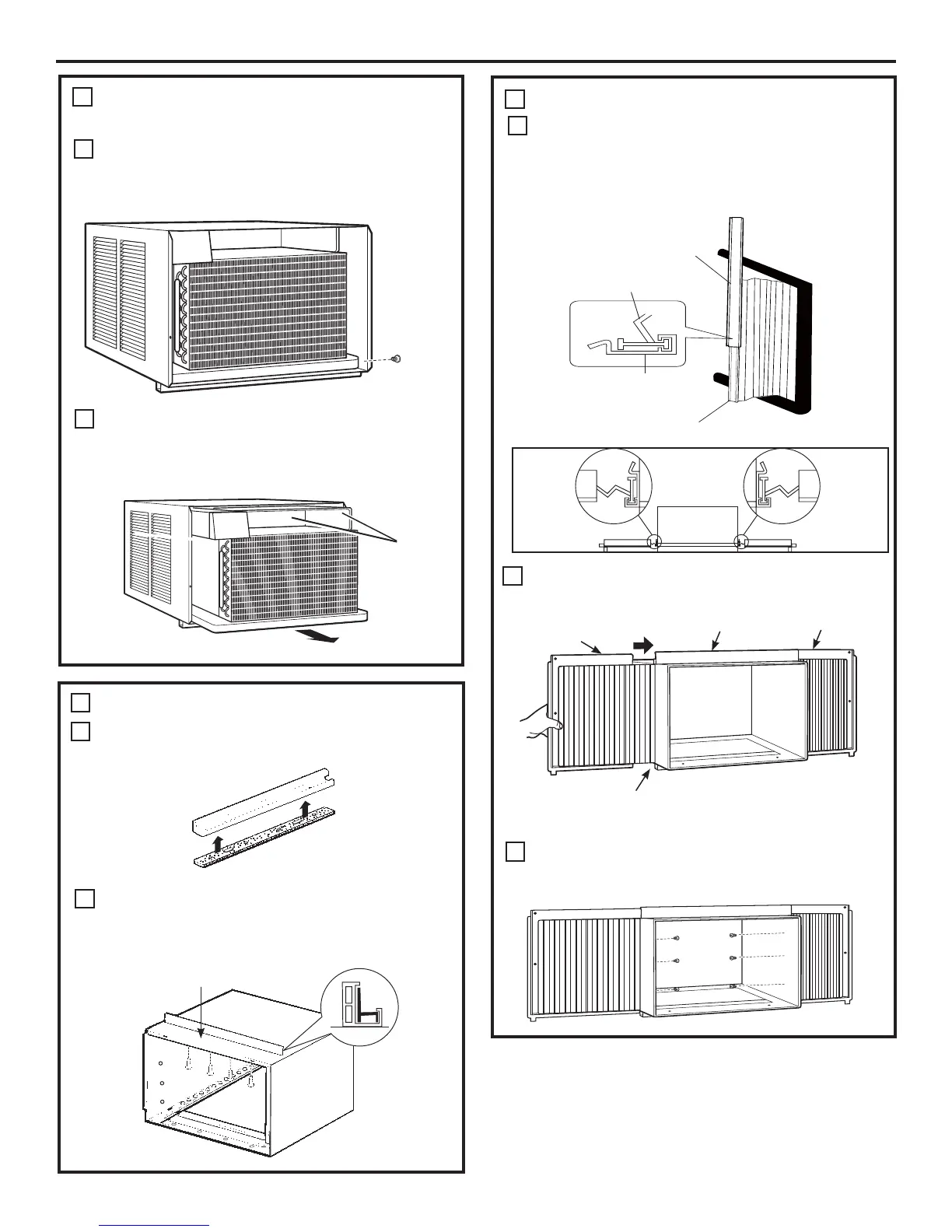

PREPARE THE AIR CONDITIONER
(continues)
Remove the ground screw from the left side of
the case. Keep it in a safe location. NOTE: Be
sure to save this screw. You will need it later
in the installation.
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case. Do not pull or
lift on the styrofoam discharge area.
3
E
F
FRONT
PREPARE THE CASE
Slide each side retainer onto the edge of
each according panel. The figure shows teh
orientation of each accordion panel and side
retainer assembly relative to the case from a
top view of the unit.
Slide the left and right accordion panels into
the top and bottom mounting rails.
Attach the side retainers to the case using 6
type A screws.
4
C
D
PREPARE THE CASE
Attach the top rail gasket to the bottom of
the top rail.
Install the top mounting rail with 4 type A
screws from the inside of the case. Press
firmly to drive the screws into the gasket and
through the top mounting rail.
A
WINDOW FILLER PANEL
WINDOW FILLER PANEL
SIDE RETAINER
SIDE RETAINER
Top mounting rail
B
4
E
Top left
Top right
Top mounting rail
Bottom mounting rail
Do not
pull or
lift in this
DUHD³
damage
to the
unit may
result
