Chapter 2. Installation
14 PanaFlow™ LC User’s Manual

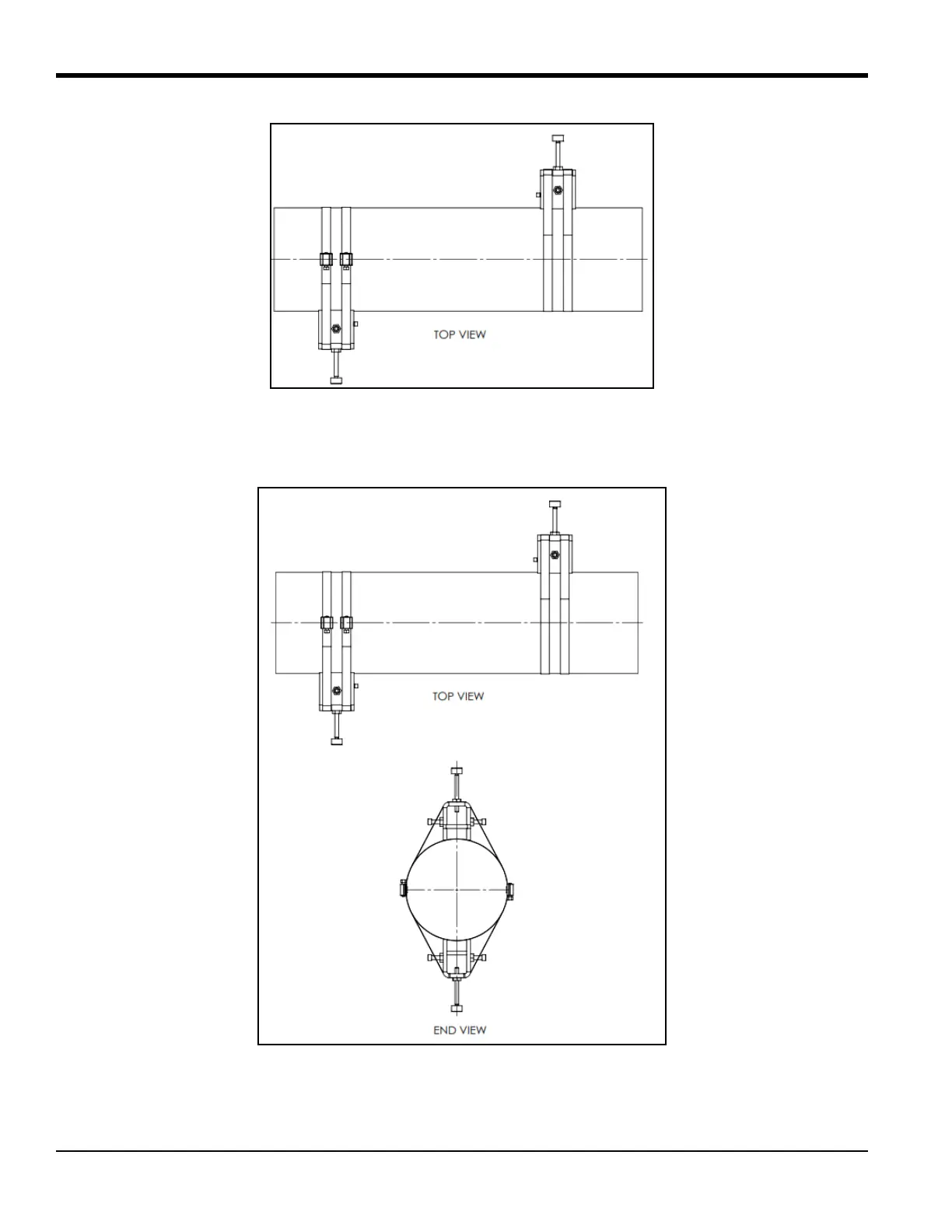

Figure 15: SCF Odd Number of Traverse Installation, Step 8
Figure 16 below shows an odd traverse installation without the transducers. Proceed to the section on
mounting the transducers later in this chapter.
Figure 16: Odd Number of Traverse SCF Installation without Transducer
