6. Read Gap Voltage
Press the GAP switch to read the Gap values for both channel A and B using the center
meter scale.

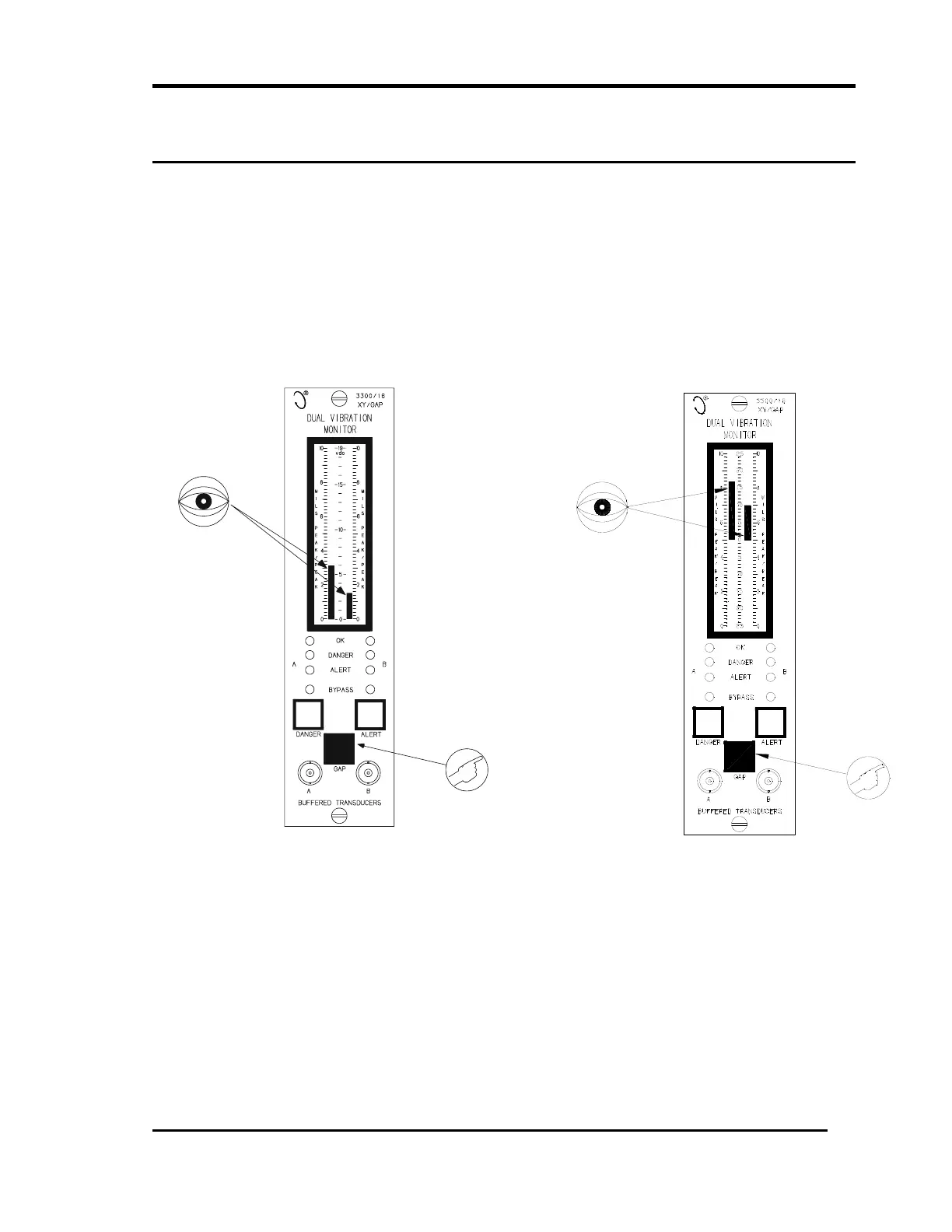

For example, this monitor is indicating a Gap voltage of 6 Vdc for channel A and 3 Vdc for
channel B. with 0 -19 Vdc Gap full scale option, Gap is displayed from the bottom scale
zero as shown below.
For all other Gap full scales, Gap is displayed from the center as shown below.
For example, this monitor is indicating a Gap value of 16 mil toward for channel A and
10 mil toward for channel B.
