Section 7 - Read Setpoint Values
13
7.2
Read Danger Setpoints

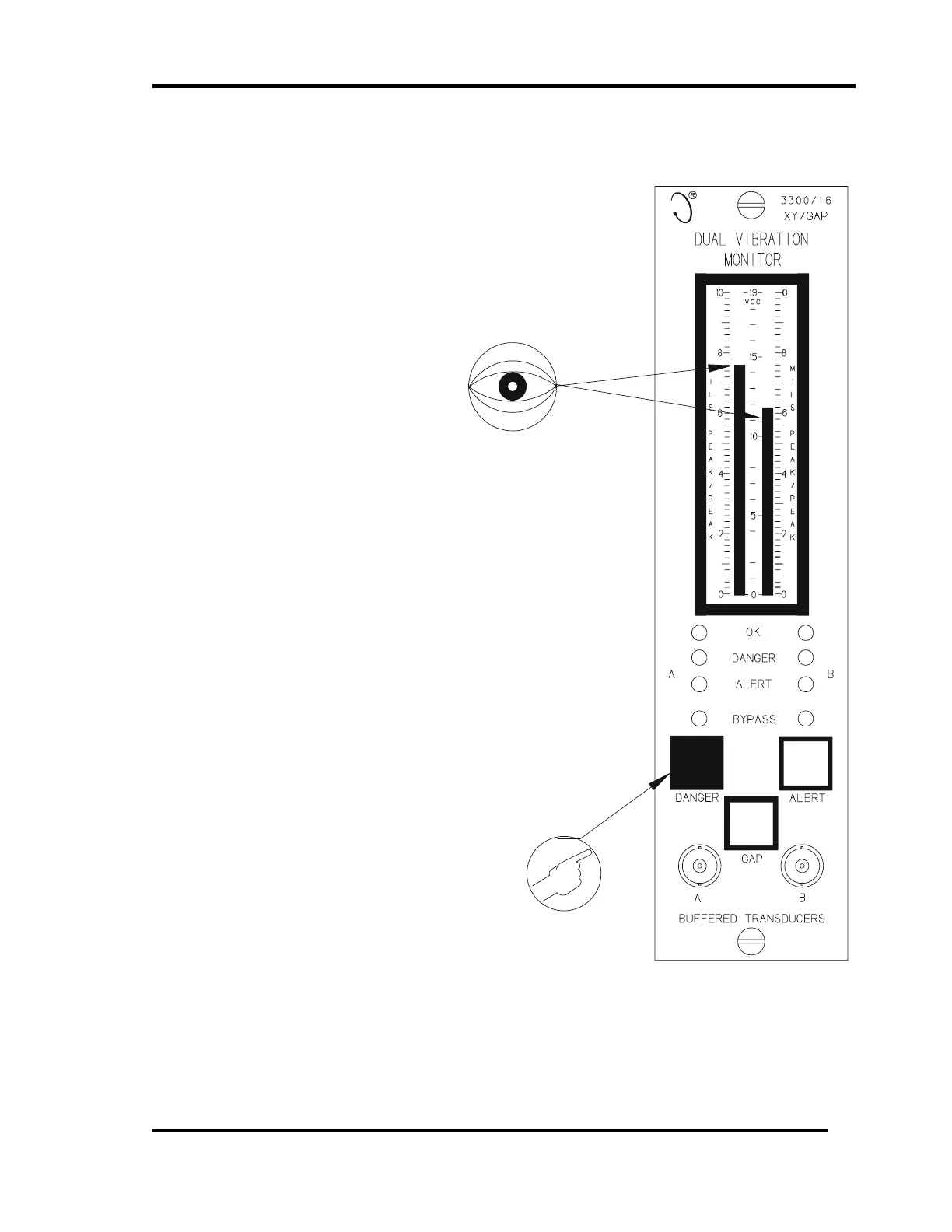

Press the
DANGER
switch to read
the Danger setpoints for both
channel A and B on the meter
scale.
This monitor shows a Danger
setpoint of 7.6 mil for channel A
and 6.2 mil for channel B.
