– 31 –

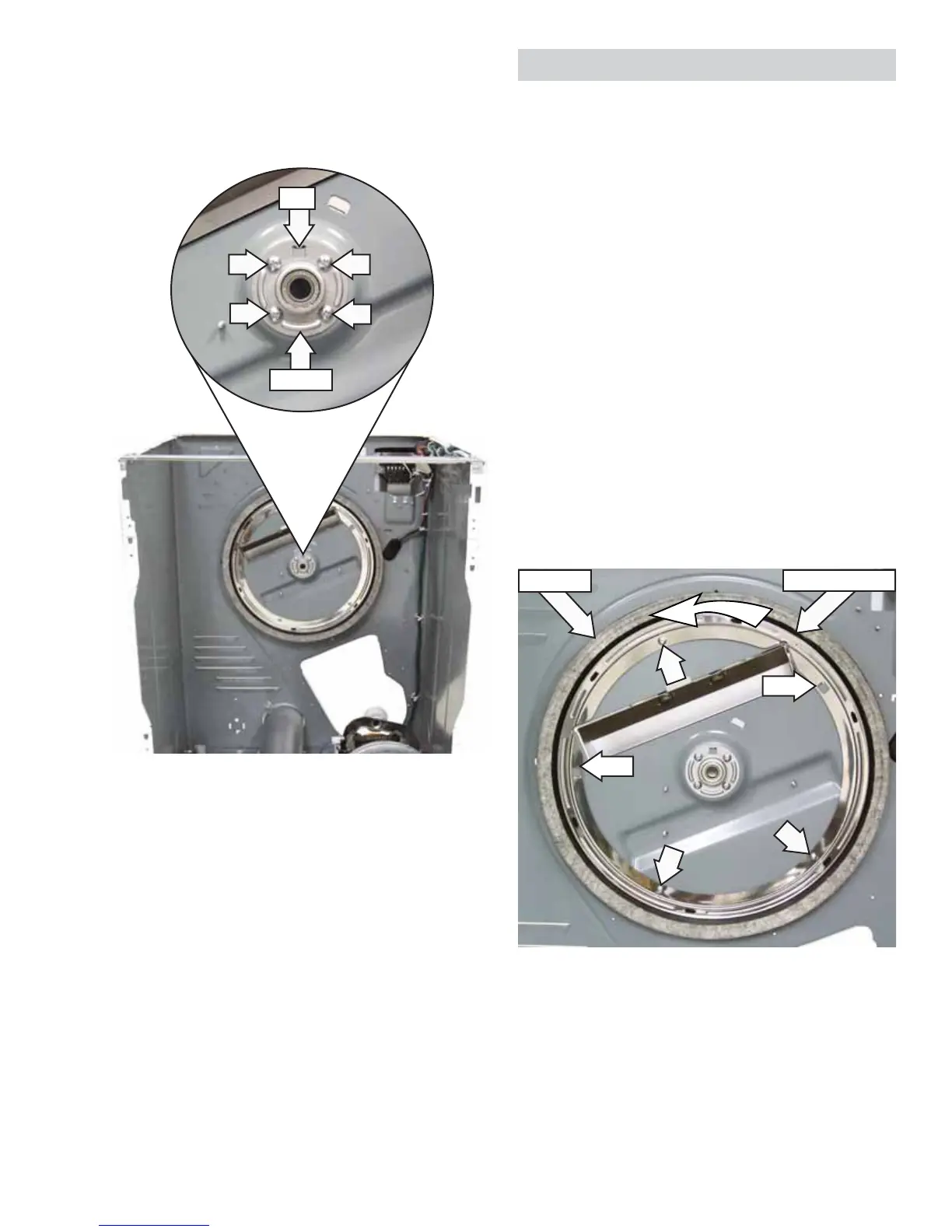

The drum shaft fi ts into the bearing located in the
center back of the cabinet.
The bearing is attached to the cabinet with 4
Phillips-head screws and a tab located at the top.
Tab
Bearing
Rear Drum Seal Assembly
The rear drum seal assembly consists of a felt seal
that is permanently attached to a rubber gasket
and a circular bracket.
The rubber gasket is attached to the back of the
circular bracket with 6 rubber tabs. The circular
bracket is attached to the inside of the cabinet with
3 Phillips-head screws and 2 metal tabs.
WARNING: Sharp edges may be exposed when
replacing the rear drum seal. Use caution to avoid
injury. Wear Kevlar gloves or equivalent protection.
To remove the rear drum seal:
Remove the drum. (See 1. Drum and Bearing.)
Remove the 3 Phillips-head screws from the 2.
circular bracket.
Rotate the rear drum seal assembly 1/2-inch 3.
counterclockwise, then pull the rear drum seal
assembly straight out from the cabinet.
4. At each tab location, pull the rubber gasket
away from the circular bracket.
Tab
Tab
Felt Seal
Rubber Gasket
