User Manual Druck DPI620 Genii
3.1.1 Assembly Instructions
Step Procedure
1
Align the two slots (a) on the calibrator with the two
posts (b) on the module carrier.
2
When the posts are fully engaged in the slots, tighten
the two screws (2) hand-tight.
3
Attach one or two PM 620 modules (4) with the
correct range and type.
4 Tighten each PM 620 module (4) hand-tight only.
5
When the symbol flashes at the top of the
display, there is communication between the module

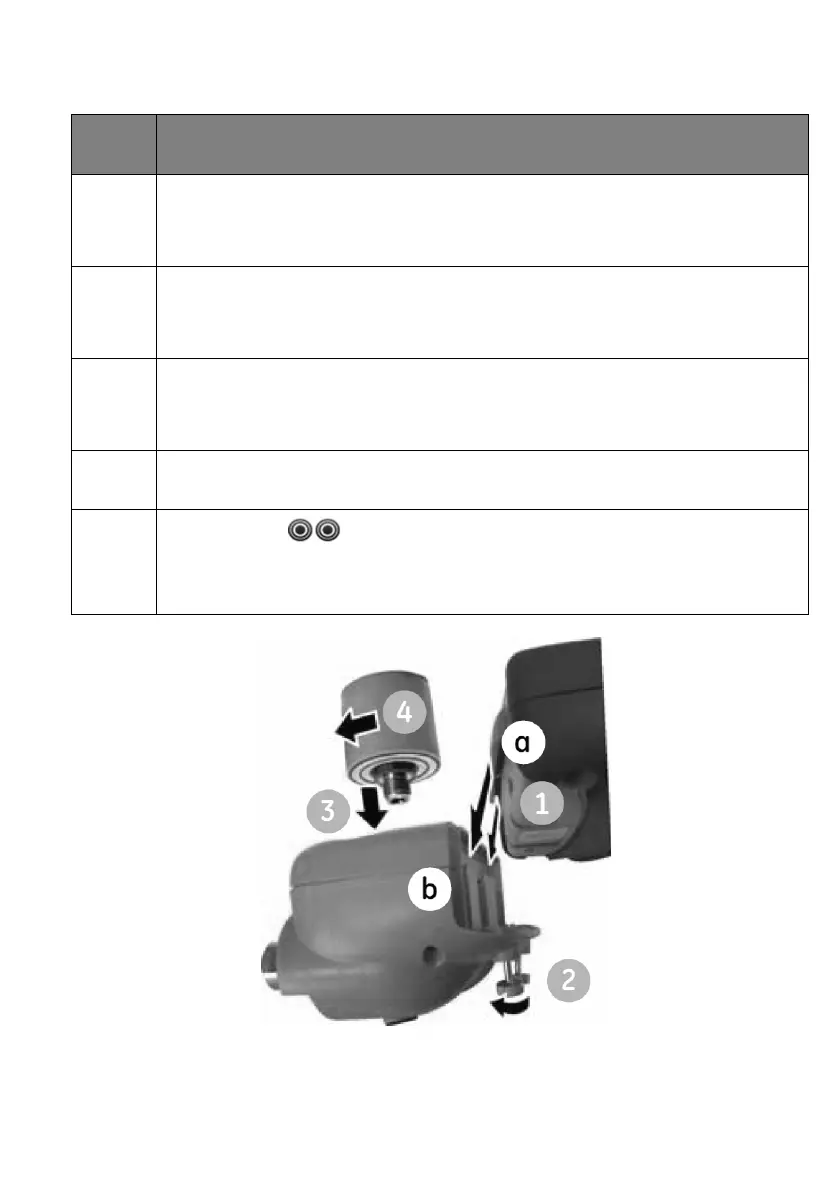

Figure 3-3 MC620 Assembly Procedure
06 June 2013 K0541 issue 1 Page 67 of 175
