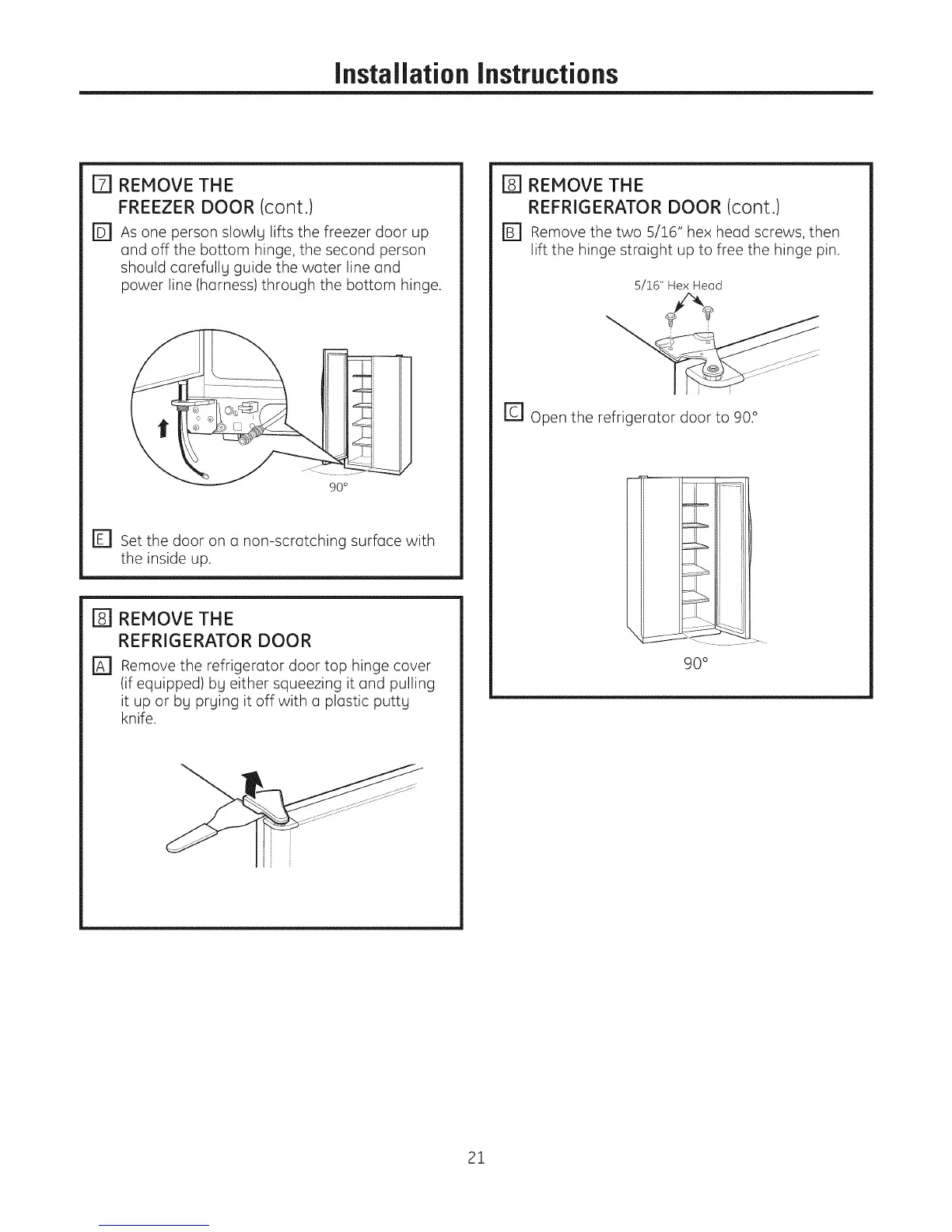

installation instructions
F71REMOVE THE
FREEZER DOOR (cont.)
F] As one person slowlg lifts the freezer door up
and off the bottom hinge, the second person
should carefullg guide the water line and
power line (harness) through the bottom hinge.
F1 Set the door on a non-scratching surface with
the inside up.
r_ REMOVE THE
REFRIGERATOR DOOR
E] Remove the refrigerator door top hinge cover
(if equipped) bg either squeezing it and pulling
it up or bg prging it off with a plastic puttg
knife.
r_ REMOVE THE
REFRIGERATOR DOOR (cont.)
r_ Remove the two 5/16" hex head screws, then
lift the hinge straight up to free the hinge pin.
5/16" Hex Head
F1 open the refrigerator door to 902
Jli i
j J
j J
90 °
21
