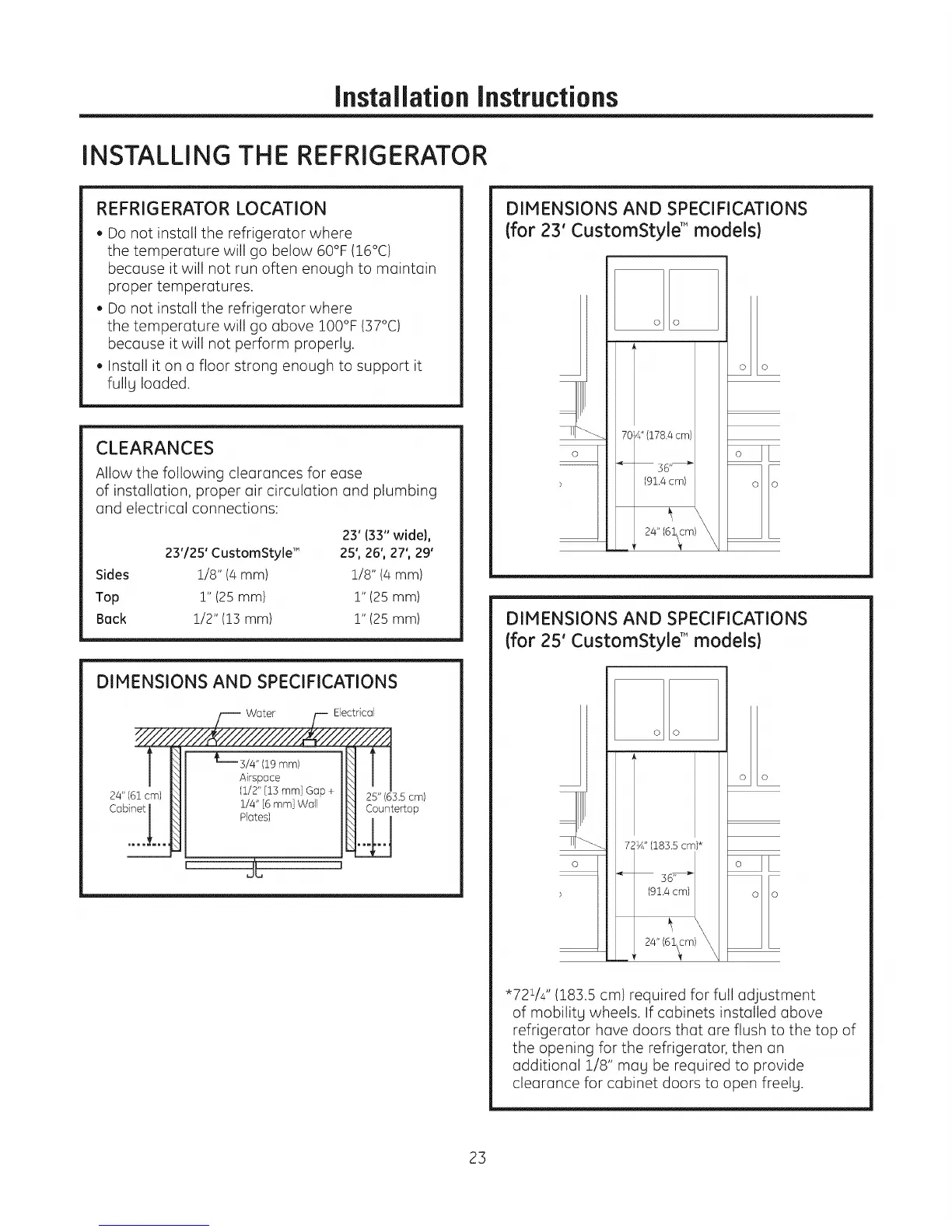

installation instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
, Do not instoll the refrigerator where
the temperoture will go below 60°F (16°C)
because it will not run often enough to maintain
proper temperatures.
, Do not install the refrigerator where
the temperature will go above 200°F (37°C)
because it will not perform properlg.
, Install it on a floor strong enough to support it
fullg loaded.
CLEARANCES
Allow the following clearances for ease
of installation, proper air circulation and plumbing
and electrical connections:
23' 133" wide),
23'/25' CustomStyle T" 25', 26 °,27', 29'
Sides 1/8" (4 mm) 1/8" (4 mm)
Top 1" (25 mm) 1" (25 mm)
Back 1/2" (!3 mm) 1" (25 mm)
DIMENSIONS AND SPECIFICATIONS
' JL
DIMENSIONS AND SPECIFICATIONS
(for 23' CustomStyle T"models}
70¼" (178.4 cm)
36"_
(91.4 cm)
_ 24" (61_cm)
DIMENSIONS AND SPECIFICATIONS
(for 25' CustomStyle T"models}
72_" (183.5 cm)*
_, 36_
191.4cm)
24" (61_cm)
"72V4" (18].5 cm) required for full adjustment
of mobilitg wheels. If cabinets installed above
refrigerator have doors that are flush to the top of
the opening for the refrigerator, then an
additional 1/8" mag be required to provide
clearance for cabinet doors to open freelg.
23
