Chapter 7: Repair Procedures
Canopy Removal for Service
7-10 Service Manual
h. Remove the north seal.
11. Install south parts on the upside-down canopy:
a. Install the south guide rail with the four button head screws (2.5 mm hex key), washers, and lock
washers provided with the kit. Install all hardware finger-tight.
b. Slide seal on, for alignment purposes. Lift the seal assembly to the upper limit of the holes.
c. Tighten all nuts and screws until they feel snug.
d. Remove seal and verify that the lock washers are compressed flat. If necessary, tighten with
10 mm open-end wrench and 2.5 mm hex key.
e. Install and remove seal to check for easy installation.
Caution: Do not over-tighten the hardware.

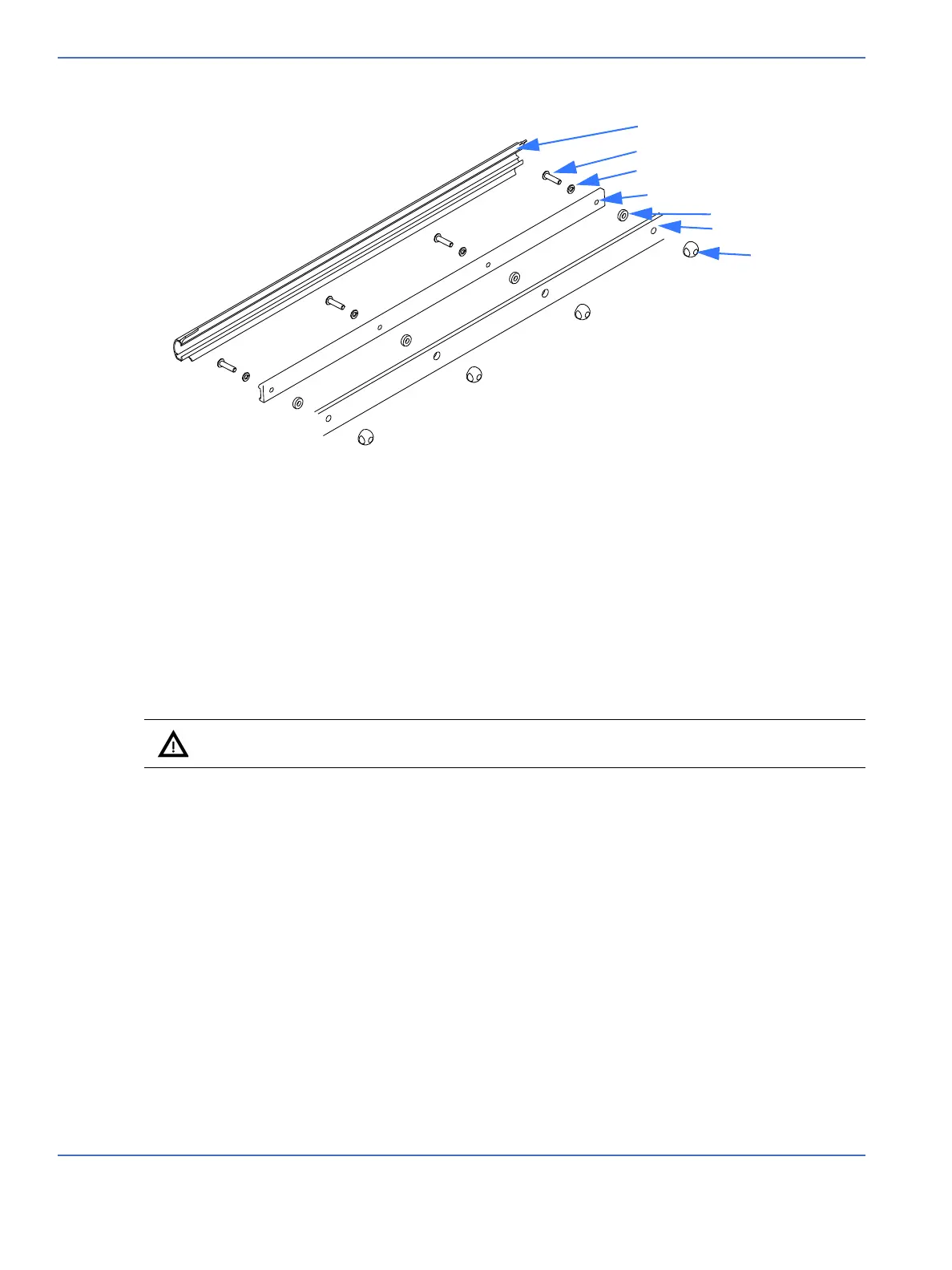

FIGURE 7-13. South Seal Parts
INSIDE OF
CANOPY
South seal
OUTSIDE OF
CANOPY
M4x16 buttonhead socket cap screw
M4 splitlock washer
South rail
Spacer washer
Canopy
Smooth nut
To Next Page
