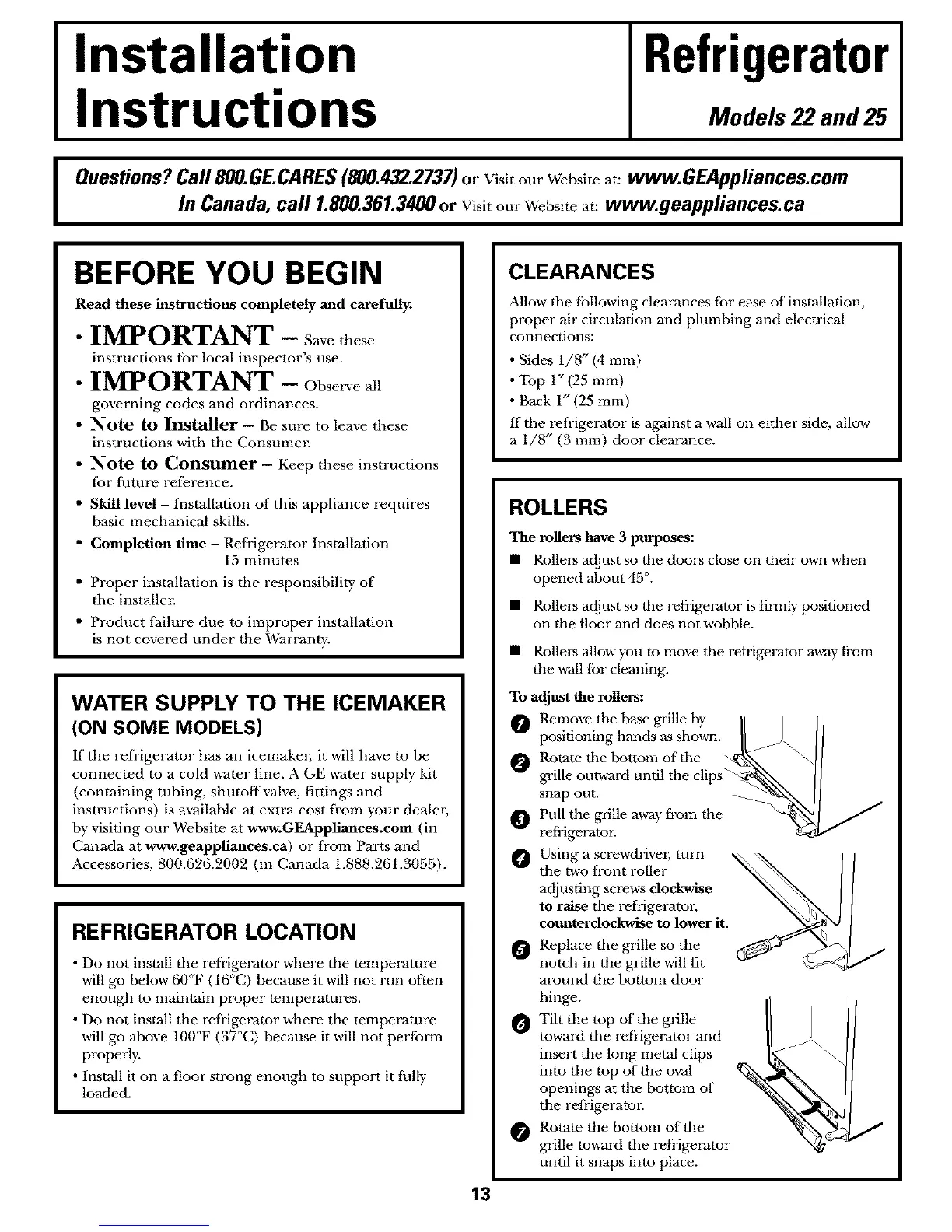

Installation
Instructions
Refrigerator
Models 22and 25
Questions?Call800.GE.CARES(800.432.2737)or Visitour Wehsite at: www.GEAppliances.com
In Canada,call 1.800.361.3400or VisitourWehsiteat:www.geappliances.ca
I
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Obso ,,oall
governing codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumm:
• Note to Consumer - Keep these instructions
fbr future reference.
• Skill level - Installation of this appliance requires
basic mechanical skills.
• Completion time - Refrigerator Installation
15 minutes
• Proper installation is tile responsibility of
tile installm:
• Product failure due to improper installation
is not covered under the Warranty.
WATER SUPPLY TO THE ICEMAKER
(ON SOME MODELS)
If the refrigerator has an icemakm; it will have to be
connected to a cold v_-ater line. AGE w-ater supply kit
(containing tubing, shutoff valve, fittings and
instructions) is available at extra cost from your dealm;
by visiting our Website at www.GEApplianees.com (in
Canada at www.geappllanees.ea) or from Parts and
Accessories, 800.626.2002 (in Canada 1.888.261.3055).
REFRIGERATOR LOCATION
• Do not install tile refrigerator where the temperature
will go below 60°F (16°C) because it will not run often
enough to maintain proper temperatures.
• Do not install the refrigerator where the temperature
will go above 100°F (37°C) because it will not perform
properly.
• Install it on a floor strong enough to support it fully
loaded.
13
CLEARANCES
Allow the following clearances 1or ease of installation,
proper air circulation and plumbing and electrical
connections:
• Sides 1/8" (4 mm)
• Top 1" (25 mm)
• Back 1" (25 mm)
If the refrigerator is against a wall on either side, allow
a 1/8" (3 mm) door clearance.
ROLLERS
The rollers have 3 pmlmses:
• RolleL'sadjust so the doors close on their own when
opened about 45°.
• Rollel_ at!just so the refrigerator is firmly positioned
on the floor and does not wobble.
the wall for cleaning.
Rollm_ allow you to move the refrigerator a_a_yfrom
To adjust the rollers:
O Remove the base grille by
positioning hands as shown. |1 J
Rotate the bottom of the "_bx_ "_>
grille outward until the clips _
snapout. _
Pull the grille away from the "_
retiigerator.
Using a screwdrivm; turn
the two front roller
adjusting screws clockwise
to raise the refiigeratol.
counterclockwise to lower it.
Replace the grille so the
notch in the grille will fit
around the bottom door
hinge.
Tilt the top of the grille
toward the refrigerator and
insert the long metal clips
into the top of the o'_al
openings at the bottom of
the refrigeraton
Rotate the bottom of the
grille to,a_ard the refrigerator
until it snaps into place.
To Next Page
