– 55 –

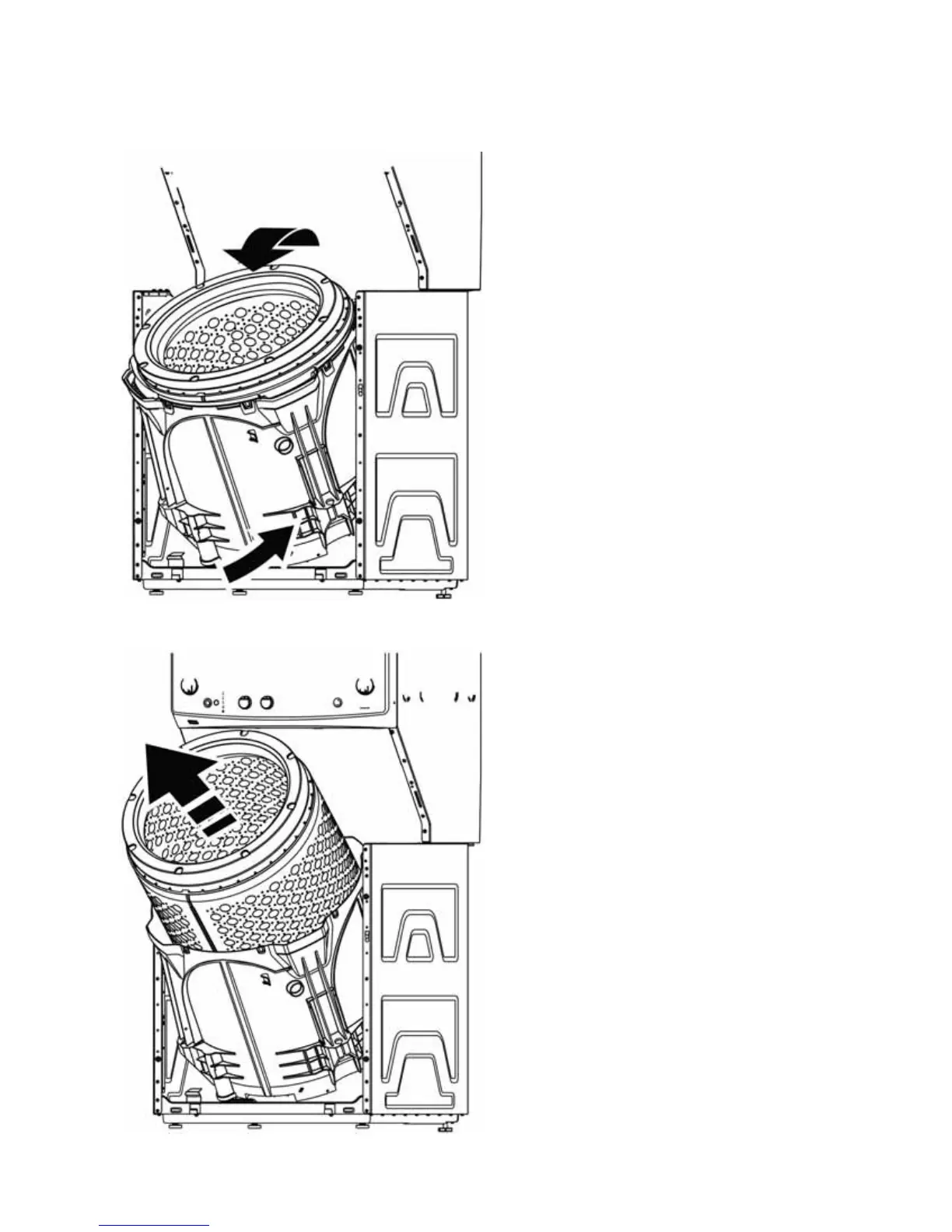

10. Lean the tub forward. Then lift and push the
bottom of the tub assembly toward the rear of
the washer cabinet to be able to pull the top
of the tub out from under the top front support
bracket.
11. Pull basket out of tub by lifting out as shown.
12. Reverse procedure for reassembly.
Outer Tub Removal
1. Remove the front panel, top cover assembly,
water valve mounting bracket, rod and spring
assemblies, agitator and basket assembly.
(See those sections.)
2. Once the tub is removed from the cabinet,
turn the tub upside down. Ensure to wipe
up any excess residual water that may have
been left in the tub.
3. Remove the pulleys, drive motor, mode
shifter, main harness, and platform from the
tub bottom from the tub.
To Next Page
