10
INLET/OUTLET PLUMBING
REQUIREMENTS

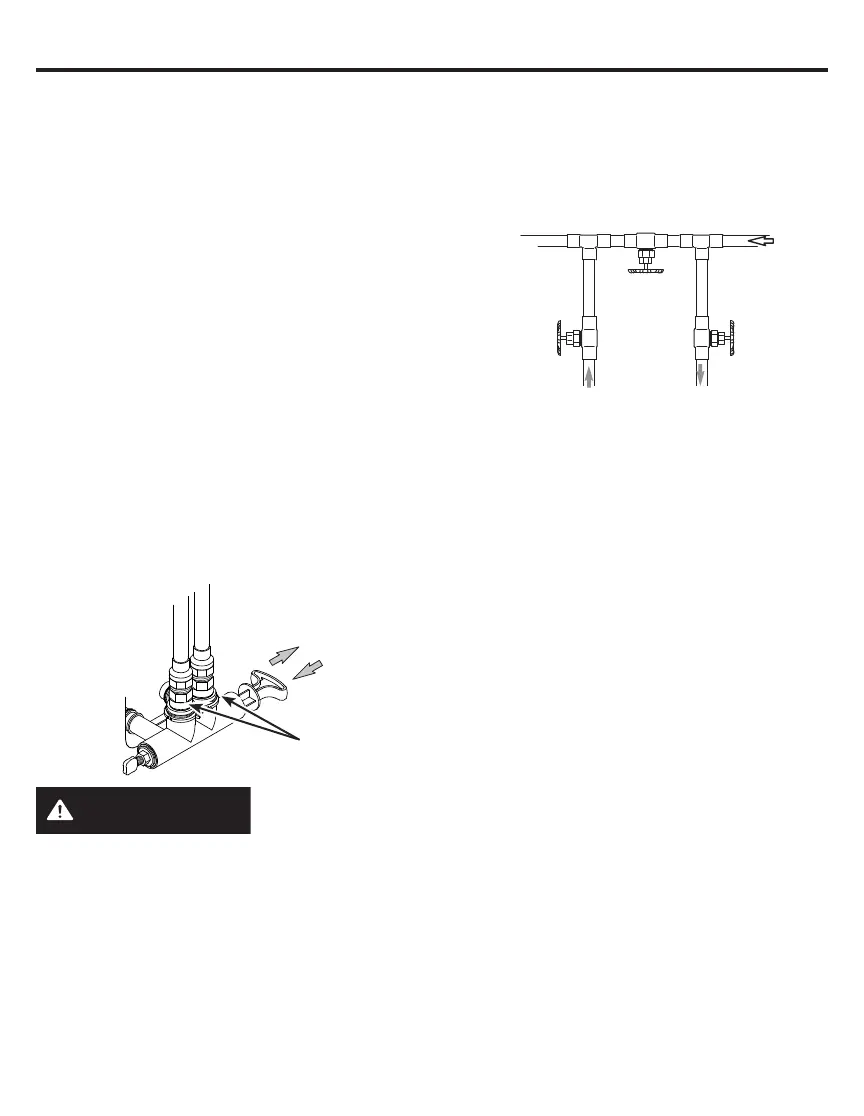

Always install either a single bypass valve
(provided),as shown in Figure 4, or, if desired,
parts for a 3 valve bypass system (not
included) can be purchased and assembled, as
shown in Figure 5. Bypass valves allow you to
turn off water to the softener for maintenance if
needed, but still have water in house pipes.
Pipe fittings must be 1/2” minimum.
Use:
Copper pipe
Threaded pipe
PEX (Crosslinked Polyethylene) pipe
CPVC plastic pipe
Other pipe approved for use with potable
water
IMPORTANT: Do not solder with plumbing
attached to installation adaptors and single
bypass valve. Soldering heat will damage the
adaptors and valve.
WARNING
A copper or
galvanized cold water pipe may be used to
ground electrical outlets in the home. Failure to
maintain this ground path may result in an
electric shock hazard. If the cold water pipe is
used to ground electric outlets, please refer to
Installing the Ground Wire section before
cutting the pipe.
3-VALVE BYPASS SYSTEM
For soft water service: Open the inlet and
outlet valves and close the bypass valve.
For bypass hard water: Close the inlet and
outlet valves and open the bypass valve.
Installation Requirements
3 VALVE BYPASS
Bypass
Valve
Outlet
Valve
Inlet
Valve
From Water
Softener
To Water
Softener
Figure 5
SINGLE BYPASS VALVE
Pull out for “Service”
(Soft water)
Push in for
“Bypass”
Figure 4
Installation
adaptors
