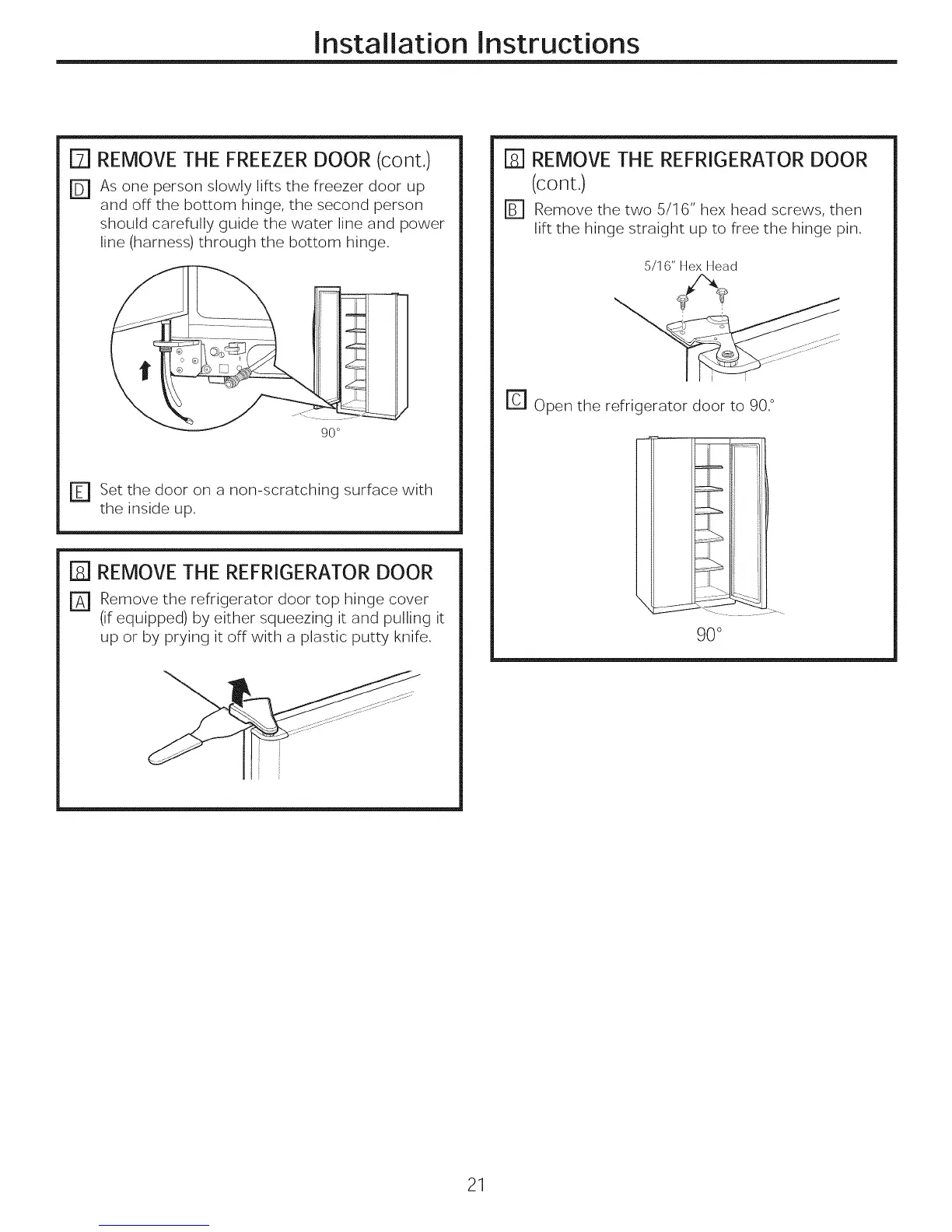

Installation Instructions
F1 REMOVE THE FREEZER DOOR (cont.)
r_ As one person slowly lifts the freezer door up
and off the bottom hinge, the second person
should carefully guide the water line and power
line (harness) through the bottom hinge.
r_ Set the door on a non-scratching surface with
the inside up.
[] REMOVE THE REFRIGERATOR DOOR
r_ Remove the refrigerator door top hinge cover
(if equipped) by either squeezing it and pulling it
up or by prying it off with a plastic putty knife.
D REMOVE THE REFRIGERATOR DOOR
(cont,)
_] Remove the two 5/16" hex head screws, then
lift the hinge straight up to free the hinge pin.
5/16" Hex Head
r_ Open the refrigerator door to 90.°
J
J
.... [
j -- • .......... >
90 °
21
To Next Page
