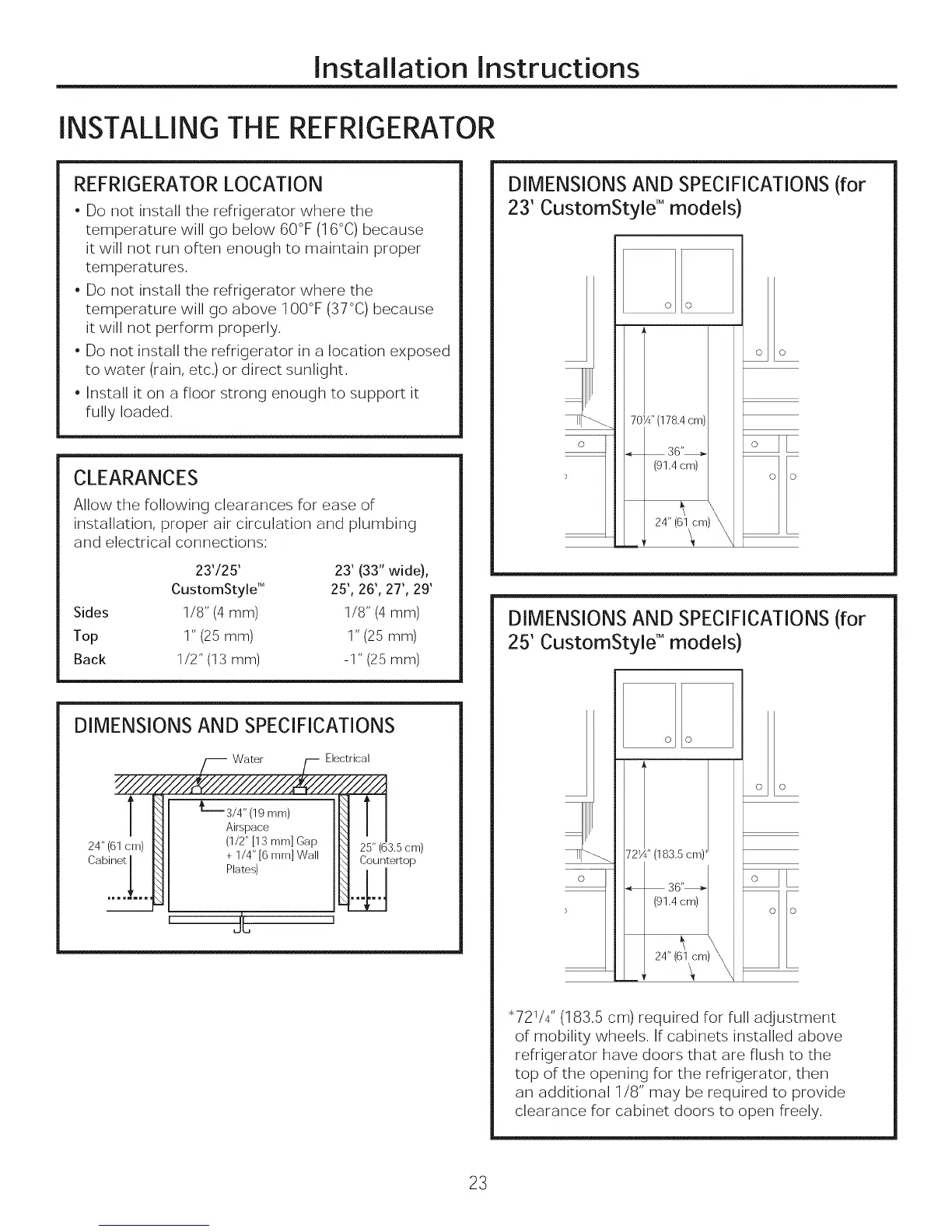

Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Do not install the refrigerator where the
temperature will go below 60°F (16°C) because
it will not run often enough to maintain proper
temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C) because
it will not perform properly.
• Do not install the refrigerator in a location exposed
to water (rain, etc.) or direct sunlight.
• Install it on a floor strong enough to support it
fully loaded.
CLEARANCES
Allow the following clearances for ease of
installation, proper air circulation and plumbing
and electrical connections:
Sides
Top
Back
23'/25' 23' (33" wide),
CustomStyle 'M 25', 26', 27', 29'
1/8" (4 mm) 1/8" (4 mm)
1" (25 mm) 1" (25 mm)
1/2" (13 mm) -1" (25 mm)
DIMENSIONSAND SPECIFICATIONS
Water Electrical
_(19 mm)
Airspace
24" (61 cm) (1/2" [13 mm] Gap 3.5 cm)
+ 1/4" [6 mm] Wall Countertop
DIMENSIONS AND SPECIFICATIONS (for
23' CustomStyld Mmodels)
o
)
o o
70¼" (178.4 cm)
(91.4cm)
24" (61cm)
DIMENSIONS AND SPECIFICATIONS (for
25' CustomStyld Mmodels)
©
)
o ©
72¼" (183.5 cm)
36"_
91.4 cm
24" (61cm)
_
"721/4" (183.5 cm) required for full adjustment
of mobility wheels. If cabinets installed above
refrigerator have doors that are flush to the
top of the opening for the refrigerator, then
an additional 1/8" may be required to provide
clearance for cabinet doors to open freely.
23
