2 System Cable Information
2.1 Physical Runs
2.1.1 Physical Run Synoptic

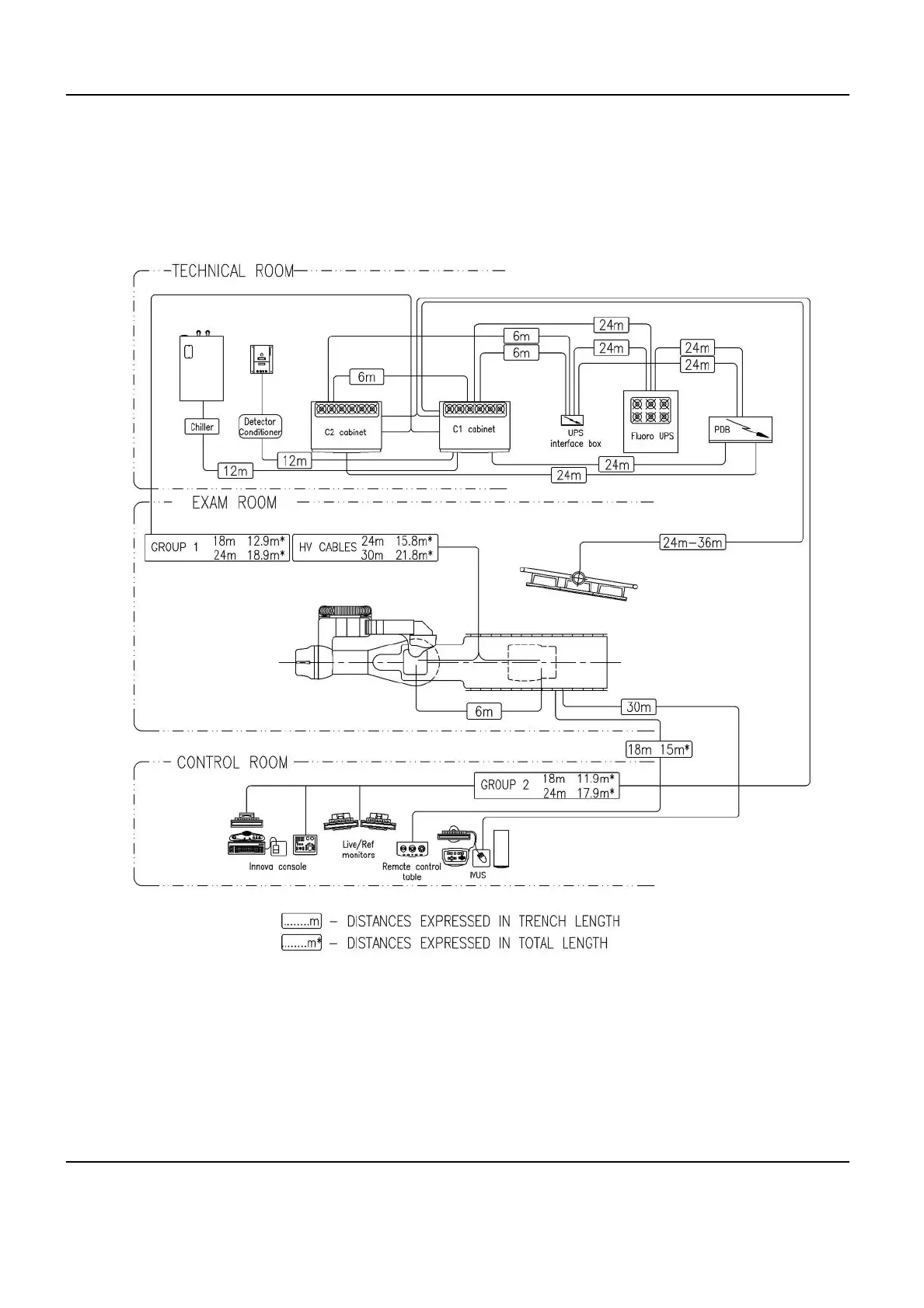

Illustration 5-3: Mini / Maxi Interconnection Length (system with LCD monitors)
NOTE:
A 24 m Emergency UPS stop cable 27561A is available in FRU.
Innova
TM
IGS 520, Innova
TM
IGS 530, Innova
TM
IGS 540 Pre-Installation Manual
Direction 5499972-1-1EN, Revision 2
206 2 System Cable Information
