GE Innova IGS 540 - 3.3.3.3.3 2286398 - On grade, Floor anchor; 3.3.3.3.4 2285052 - Above grade, Floor anchor with insert

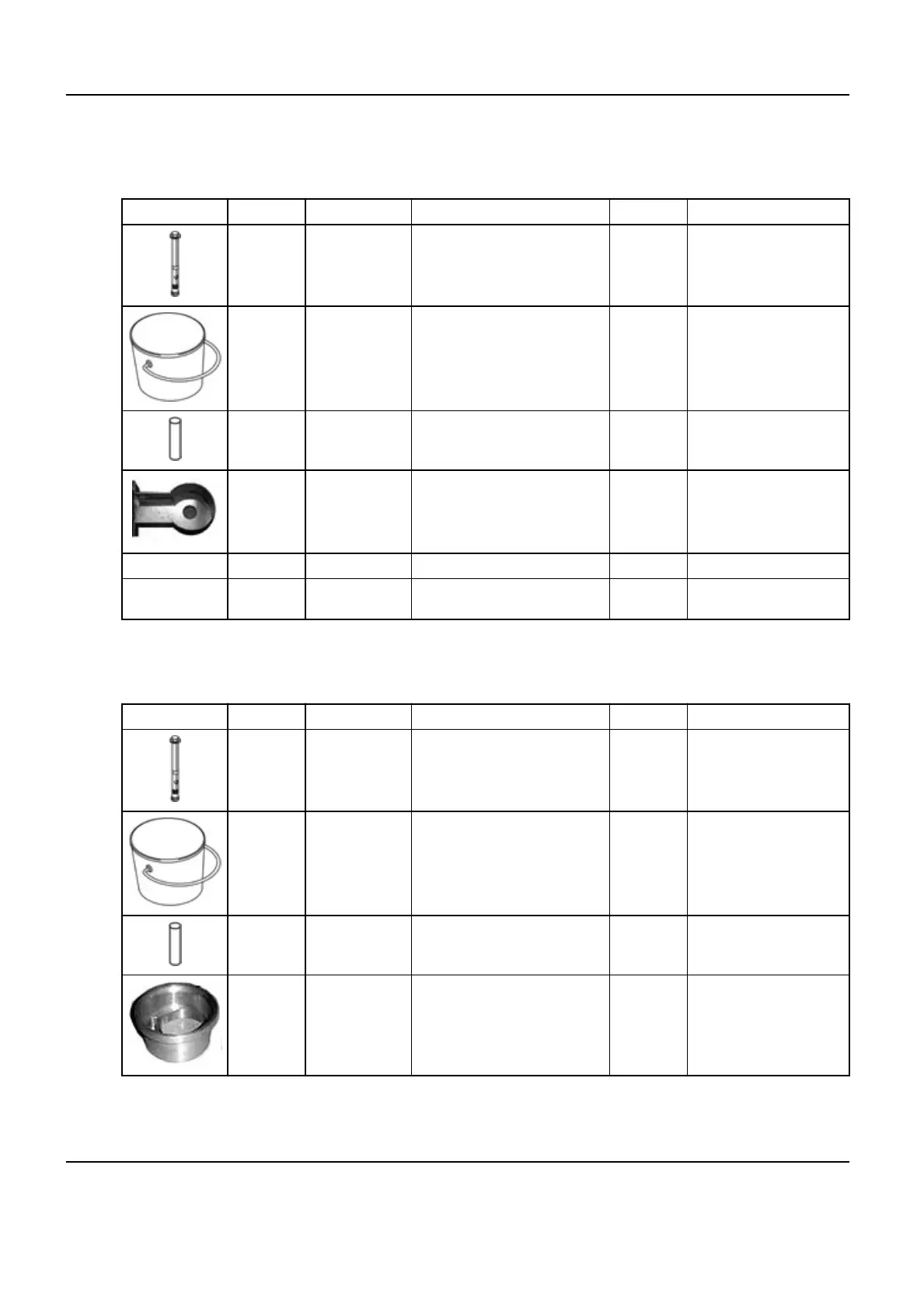

3.3.3.3.3 2286398 – On grade, Floor anchor
Table 2-16:
Item Name Part # Description Quan. Notes
Floor An‐
chor
46-302265P1 Floor Anchor Bolt; 5/8-10 x 6 in.
12 anchors for LC Positioner and
4 anchors for Table
16 pc
On Grade anchor mounting
method hardware
Grout assy 2285055 - 10 kg Powdered Mortar Ardex
K-15
- RTV Silicon Rubber Adhesive
- 18 mm making tape adhesive
- Open cell foam
1 kit
Used in constructing LC
Positioner grout dam
Dowel 2290937-2 Wood Dowel; 16 mm diameter 12 pc
Cable Con‐
duit
2285057 Cable conduit - sheet metal part 1 pc
Vinyl Trim 2296890 Gripping Range; 1.5 to 3 mm THK 1 m
Vinyl Trim 2296891 Vinyl trim with segmented metal
core 12 mm
1 m
3.3.3.3.4 2285052 – Above grade, Floor anchor with insert
Table 2-17:
Item Name Part # Description Quan. Notes
Floor An‐
chor
46-302265P1 Floor Anchor Bolt; 5/8-10 x 6 in.
drilling
12 anchors for LC Positioner and
4 anchors for Table
16 pc
Above Grade anchor
mounting method hardware
Grout assy 2285055 - 10 kg Powdered Mortar Ardex
K-15
- RTV Silicon Rubber Adhesive
- 18 mm making tape adhesive
- Open cell foam
1 kit
Used in constructing LC
Positioner grout dam
Dowel 2290937-2 Wood Dowel; 16 mm diameter 12 pc
Water Elec‐
tric Separa‐
tor
2268647
Manufactured part introduced in
Positioner key hole to fit 1 electri‐
cal conduit of 6”.
1 pc
Electrical and water con‐
duits separated inch size.
Innova
TM
IGS 520, Innova
TM
IGS 530, Innova
TM
IGS 540 Pre-Installation Manual
Direction 5499972-1-1EN, Revision 2
154 3 Room Structural Requirements
