GE JGBP29

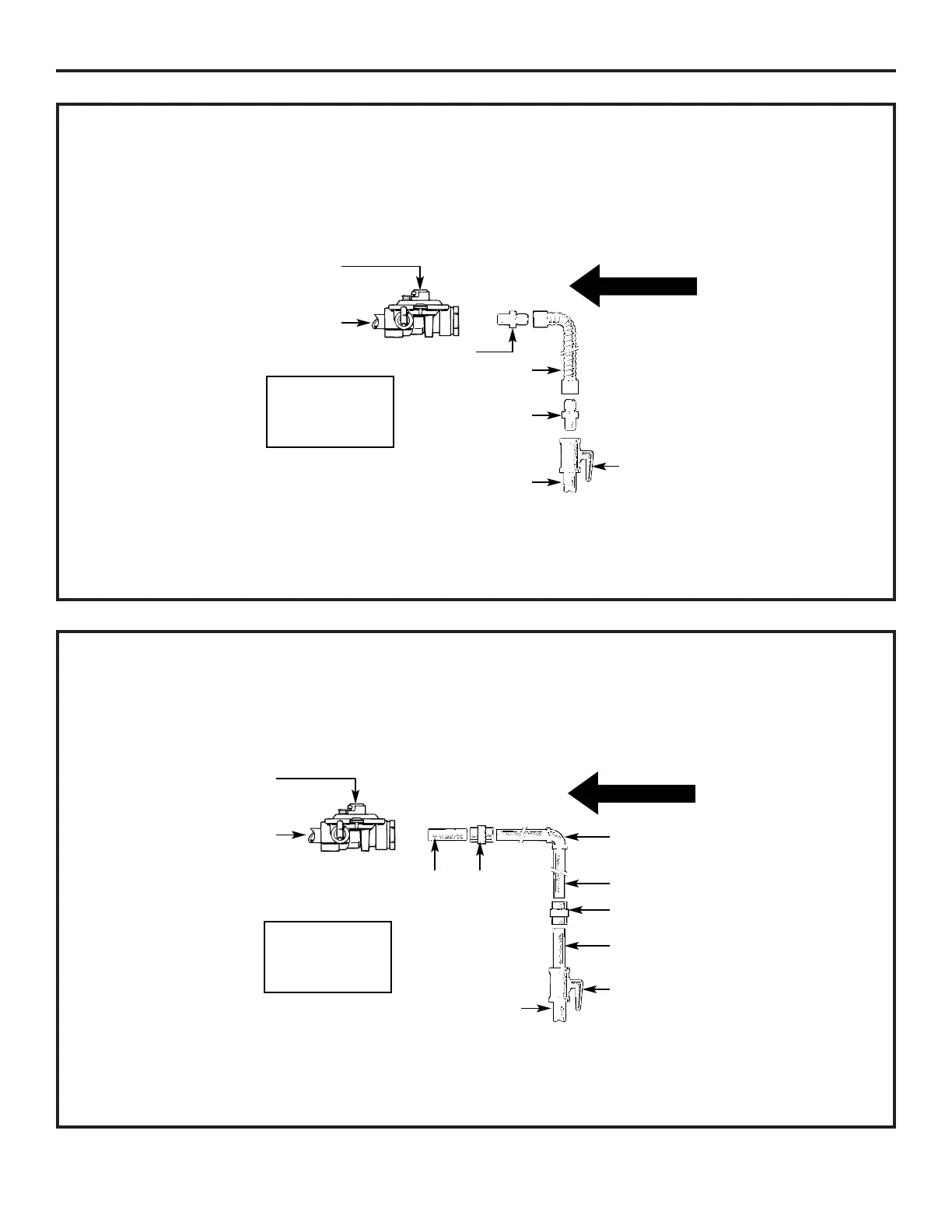

RIGID PIPE HOOKUP
(for models equipped with Standard Twin Burners)
FLEXIBLE CONNECTOR HOOKUP (for models equipped with Standard Twin Burners)
Installation Instructions
39
Adapter
1/2″ or 3/4″ Gas pipe
Adapter
Flex connector
(6 ft. max.)
Manifold pipe
Pressure regulator
Gas shut-off valve
UnionNipple
Manifold pipe
Pressure regulator
1/2″ or 3/4″ Gas pipe
Gas shut-off valve
Nipple
Union
Black iron pipe
90° Elbow
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
Gas Flow into Range
Gas Flow into Range
