Installation Instructions
47
Recommended area for 120V outlet
on rear wall and area for through-
the-wall connection of pipe stub
and shut-off valve.
Recommended area for
through-the-floor
connection of pipe stub
and shut-off valve.
9”
30
2
4
4
24
13
14
1
/2
2
1
/2
3
6
1
/2
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection
of pipe stub and shut-off valve.
Recommended area for
through-the-floor connection
of pipe stub and shut-off valve.

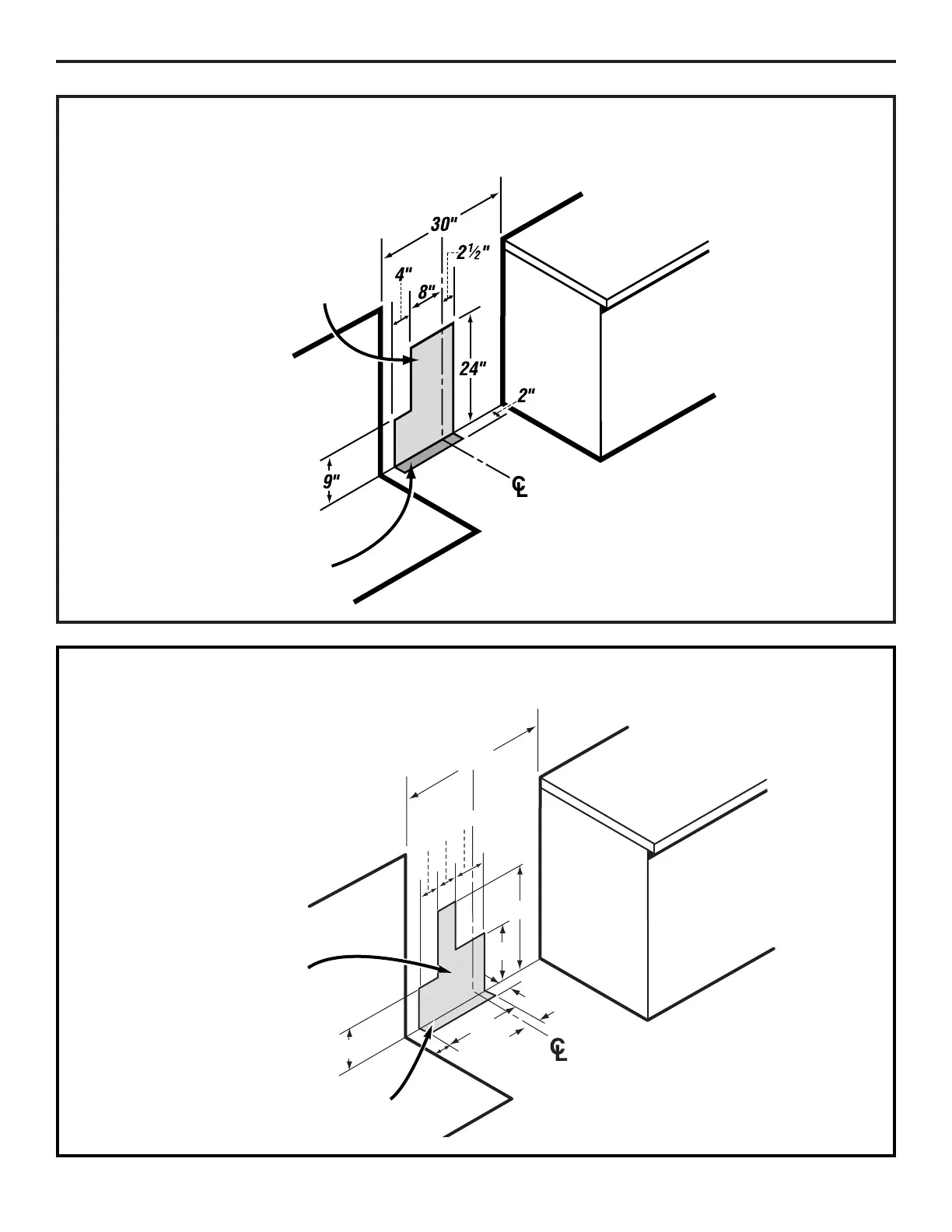

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
For models JGBP85, JGBP88, JGBP89, JGBP90, JGBP92, PGB900, PGB908 and PGB910 only.
(See the below section for models
PGB916, PGB918 and PGB975.)
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
For models PGB916, PGB918 and PGB975 only.
(See the above section for models JGBP85,
JGBP88, JGBP89, JGBP90, JGBP92,
PGB900, PGB908 and PGB910.)
