instatlation instructions

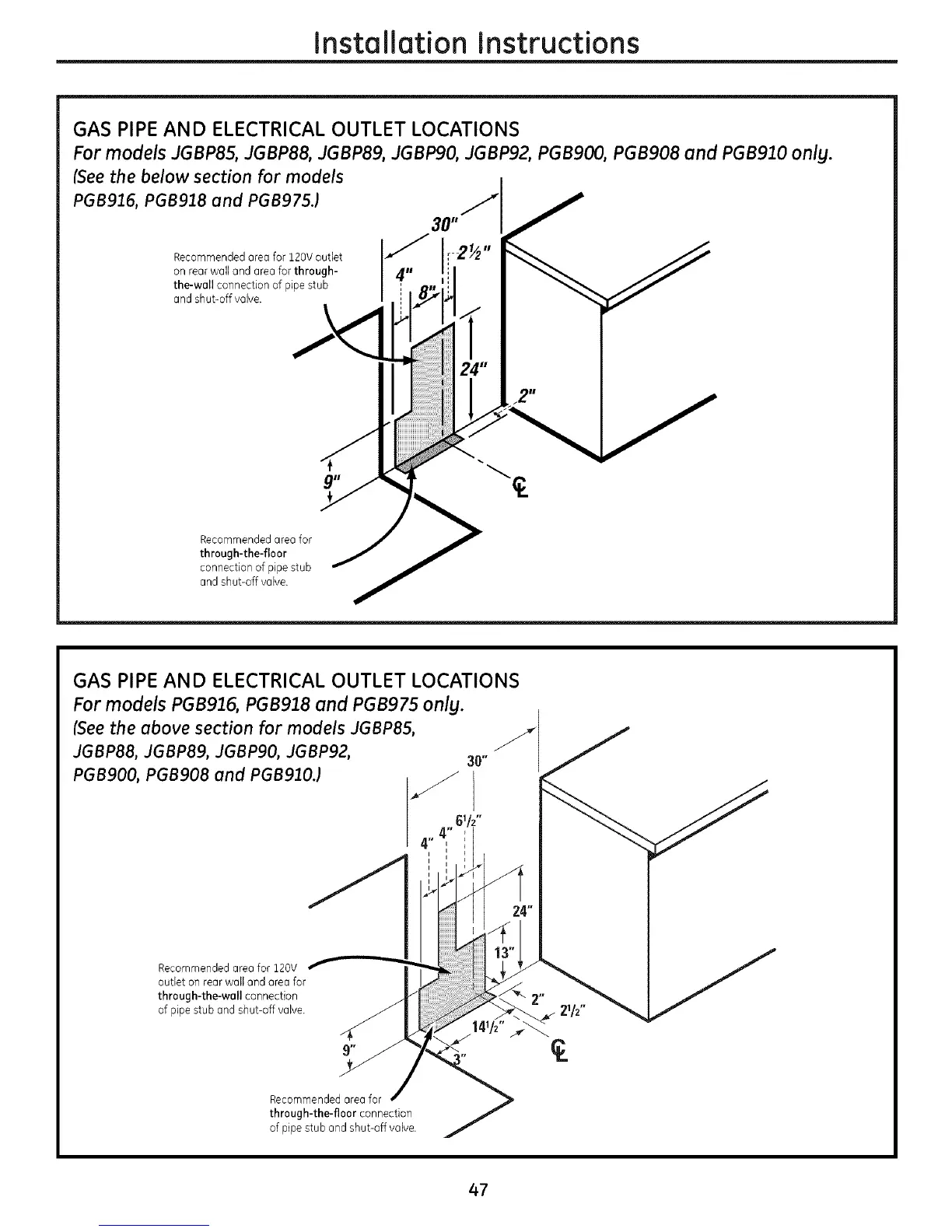

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
For models JGBP85, JGBP88, JGBP89, JGBP90, JGBP92, PGB900, PGB908 and PGB910 onlg.
(See the below section for models
PGB926, PGB928 and PGB975.) 30,,_.. _
Recommendedarea for 120Voutlet
on rear wall and area for through-
the-wall connection of pipestub
and shut-off valve.
Recommendedarea for
through-the-floor
connection of pipestub
and shut-off valve.
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
For models PGB916, PGB918 and PGB975 onlg.
(See the above section for models JGBP85,
JGBP88, JGBP89, JGBP90, JGBP92,
PGB900, PGB908 and PGB910.)
Recommendedarea for 120V
outlet on rear wall and area for
through-the-wall connection
of pipe stub andshut-off valve.
i
Recommendedareafor
through-the-floor connection
of pipestub and shut-off valve.
47
