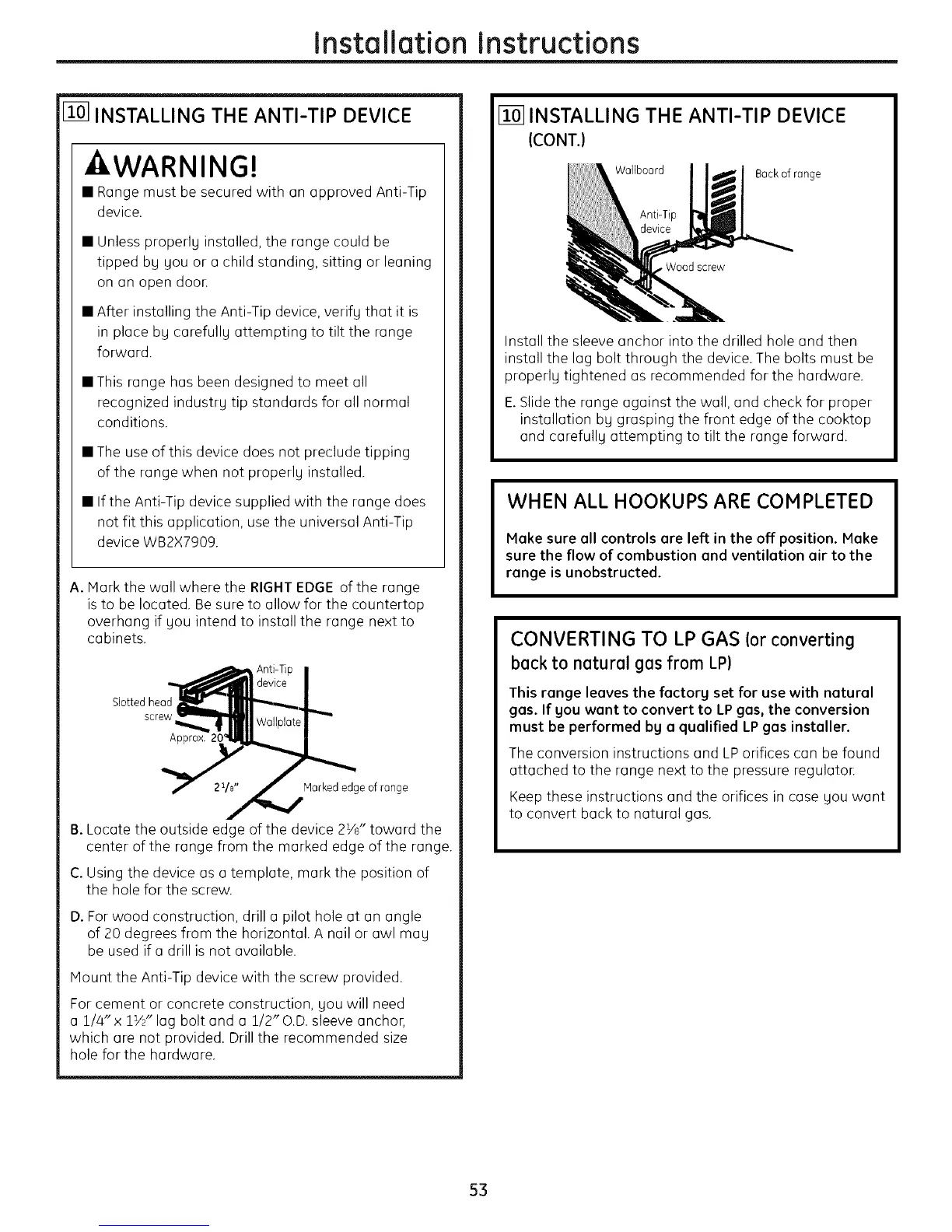

instatlation instructions
[] INSTALLING THE ANTI-TIP DEVICE
kWARNING!
• Range must be secured with an approved Anti-Tip
device.
Unless properly installed, the range could be
tipped bg gou or a child standing, sitting or leaning
on an open door.
After installing the Anti-Tip device, verifg that it is
in place bg carefullg attempting to tilt the range
forward.
• This range has been designed to meet all
recognized industrg tip standards for all normal
conditions.
The use of this device does not preclude tipping
of the range when not properly installed.
If the Anti-Tip device supplied with the range does
not fit this application, use the universal Anti-Tip
device WB2X7909.
A. Mark the wall where the RIGHT EDGE of the range
is to be located. Be sure to allow for the countertop
overhang if Uou intend to install the range next to
cabinets,
Slotted head
screw
Markededge of range
B. Locate the outside edge of the device 2_/8" toward the
center of the range from the marked edge of the range.
C. Using the device as a template, mark the position of
the hole for the screw.
D. For wood construction, drill a pilot hole at an angle
of 20 degrees from the horizontal. A nail or awl mag
be used if a drill is not available.
Mount the Anti-Tip device with the screw provided.
For cement or concrete construction, gou will need
a 1/4" x 11/2"lag bolt and a 1/2" O.D.sleeve anchor,
which are not provided. Drill the recommended size
hole for the hardware.
[] INSTALLING THE ANTI-TIP DEVICE
(CONT.)
Wallboard
Backof range
Install the sleeve anchor into the drilled hole and then
install the lag bolt through the device. The bolts must be
properlg tightened as recommended for the hardware.
E.Slide the range against the wall, and check for proper
installation bg grasping the front edge of the cooktop
and carefullg attempting to tilt the range forward.
WHEN ALL HOOKUPS ARE COMPLETED
Make sure all controls are left in the off position. Hake
sure the flow of combustion and ventilation air to the
range is unobstructed.
CONVERTING TO LP GAS (or converting
back to natural gas from LP)
This range leaves the factorg set for use with natural
gas. If gou want to convert to LP gas, the conversion
must be performed bg a qualified LPgas installer.
The conversion instructions and LP orifices can be found
attached to the range next to the pressure regulator
Keep these instructions and the orifices in case gou want
to convert back to natural gas.
53
