31-7000173 Rev. 0 39

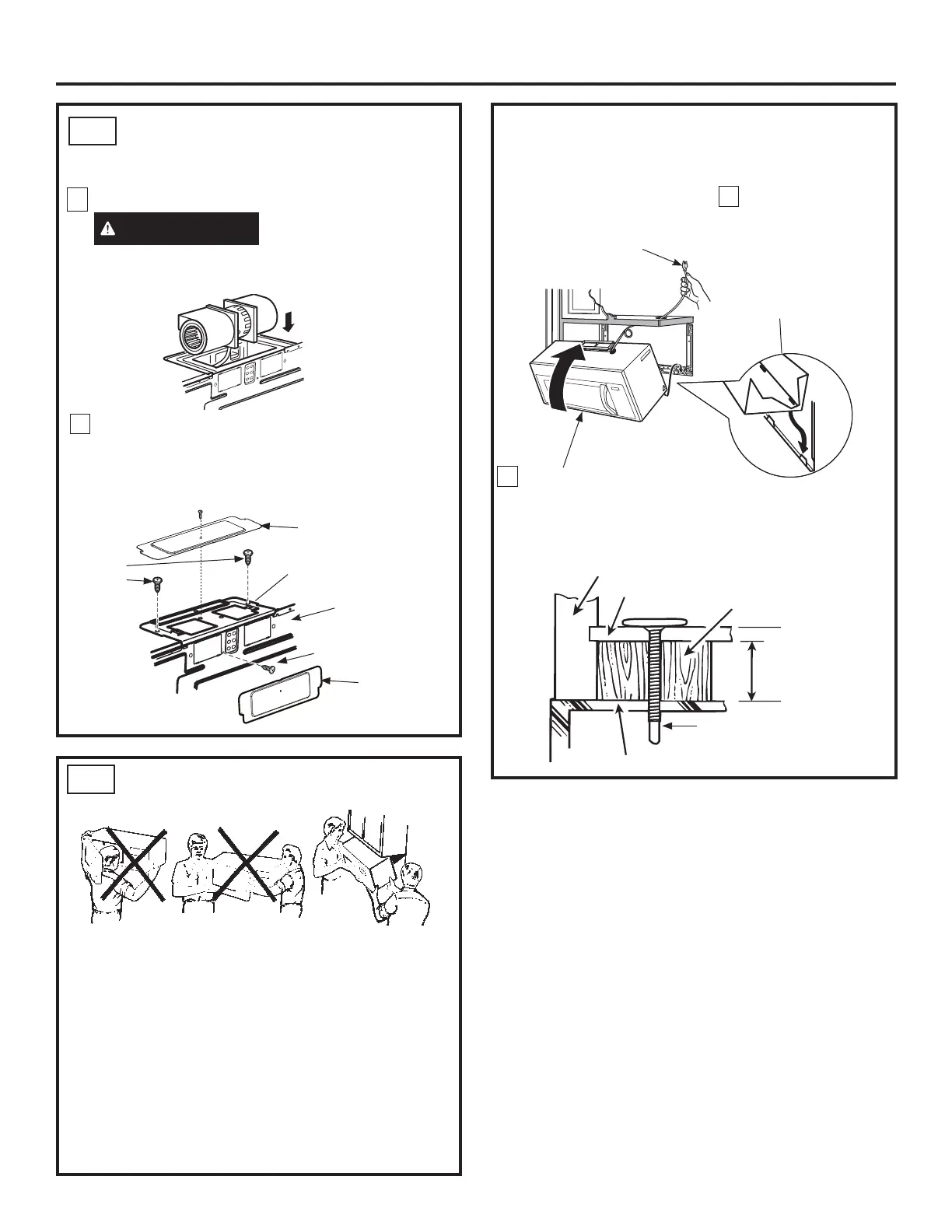

Coloque la unidad del calefactor de nuevo en la abertura
.
PRECAUCIÓN
No tire ni estire los
cables del calefactor.
Cerciórese de que los alambres no están
pellizcados.
1
6
5
CÓMO ADAPTAR EL
CALEFACTOR PARA LA
RECIRCULACIÓN
(continuación)
C3.
Reinstale el plato del calefactor y los tornillos del plato
del calefactor y del motor retirados en el Paso 1.
Coloque la cubierta en la placa del soplador (incluya
un tornillo), vuelva a colocar la placa en la parte
posterior.
Frente del gabinete
Estante del fondo del gabinete
Bloque de relleno
Parte superior del horno
Equivalente a
la profundidad
del retroceso
del gabinete
Instrucciones de instalación
2
Gire el frente del horno
contra el fondo del
gabinete.
MONTAJE DEL HORNO
C4.
PARA UNA INSTALACIÓN MÁS FÁCIL Y EN POS DE LA
SEGURIDAD PERSONAL, SE RECOMIENDA QUE DOS
PERSONAS INSTALEN ESTE HORNO.
IMPORTANTE: No agarre ni use la manija de la puerta
durante la instalación.
NOTA: Si su gabinete es de metal, use la arandela de nilón
alrededor del cable eléctrico para evitar que el mismo sea
cortado.
NOTA: Recomendamos el uso de bloques de relleno si
el frente del gabinete cuelga por debajo del estante del fondo
del gabinete.
IMPORTANTE: Si no se usan bloques de relleno, podrían
ocurrir daños por apretar demasiado los tornillos.
NOTA: Cuando se encuentre
montando el horno, enrosque
el cable eléctrico a través
del agujero en el fondo del
gabinete superior. Manténgalo
tenso a través de los Pasos del
1-3. No pellizque el cable ni
tire el horno por el cable.
Levante el horno,
inclínelo hacia
adelante, y enganche
las ranuras en el
extremo inferior
posterior en dos
orejillas inferiores
del plato de montaje.
Tornillos autoalineables
Plato del calefactor
Parte posterior
del horno
Tornillos
del plato
calefactor
Tornillo del motor
del calefactor
Placa de
cubierta
Placa de
cubierta
