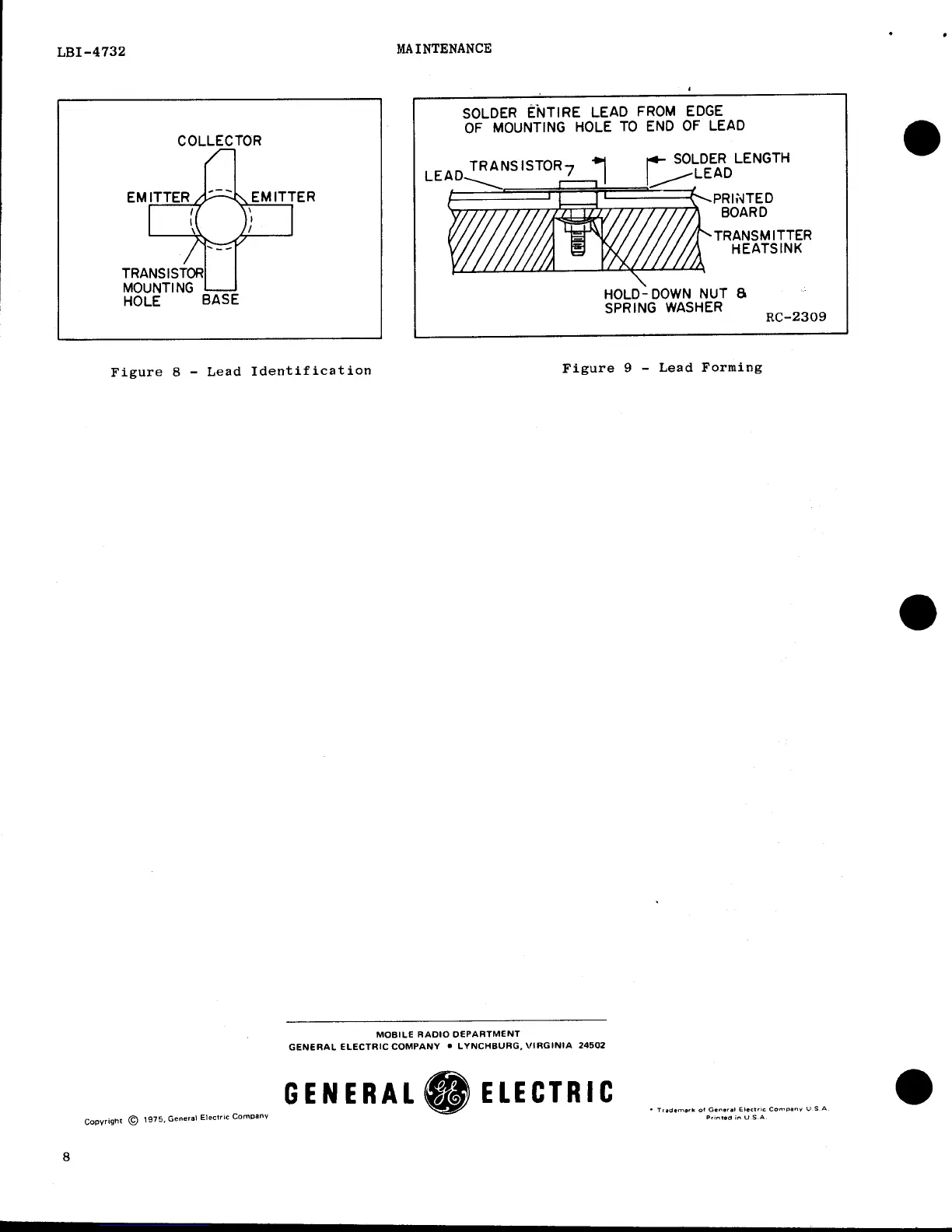

LBI-4732
COLLECTOR
MAINTENANCE
SOLDER
ENTIRE
LEAD
FROM
EDGE
OF
MOUNTING
HOLE
TO
END
OF
LEAD
HOLD-
DOWN
NUT
S
SPRING
WASHER
RC-2309
Figure
8
-
Lead
Identification
Figure
9
-
Lead
Forming
Copyright
©
1975,
General
Electnc
Company
8
MOBILE
RADIO
DEPARTMENT
GENERAL
ELECTRIC
COMPANY
o
LYNCHBURG,
VIRGINIA
24502
GENERAL.
ELECTRIC
•
Tritdemark
of
General
Electric
Company
US
A
Prmted
in
U
S.A
•
•
•
9
11
Table of Contents
Table of Contents
2
Description
3
Circuit Analysis
3
Exciter
3
Icoms
3
Audio Preamplifier
5
Audio IC
5
Frequency Divider IC
6
Phase Modulators, Amplifiers & Multipliers
6
Power Amplifier
7
RF Amplifiers
7
Power Control Circuit
8
Maintenance
8
Disassembly
8
Access to Power Amplifier (Rear View)
8
PA Transistor Replacement
9
Alignment Procedure
11
Test Procedures
12
Power Output
12
Tone Deviation
12
Voice Deviation
12
Duty PA Assembly
14
Outline Diagrams
15
Continuous Duty PA Assembly
15
Frame Assembly
16
PARTS LIST and PRODUCTION CHANGES Exciter
17
Exciter
18
Power Amplifier (Intermittent Duty)
19
Power Amplifier (Intermittent Duty)
20
Power Amplifier (Continuous Duty)
21
Power Amplifier (Continuous Duty)
22
