6-2 MIFII Digital Feeder Relay GEK-106237P
6.1 INPUT CONFIGURATION (FOR OPTIONS 1 AND 2) 6 I/0 CONFIGURATION
6
INPUT CONFIGURATION WITH MORE THAN ONE FUNCTION (OR). EXAMPLE
As shown on the figure below, input 1 is assigned to an OR. Clicking on that OR checkbox, a second screen named "OR
ASSIGNMENT" is displayed, where the user can select the group that contains the desired elements (in this example,
"INHIBITIONS BY DIGITAL INPUT 1"). This group includes 8 elements, from which we can select the ones we want to
operate in the input, and invert them by clicking on the NOT checkbox. In the example below, all functions have been
assigned to the input, and all of them have been inverted. Finally, to validate the selected configuration, the user must click
on the OK button both in the "OR ASSIGNMENT" and the "I/O CONFIGURATION" screens.

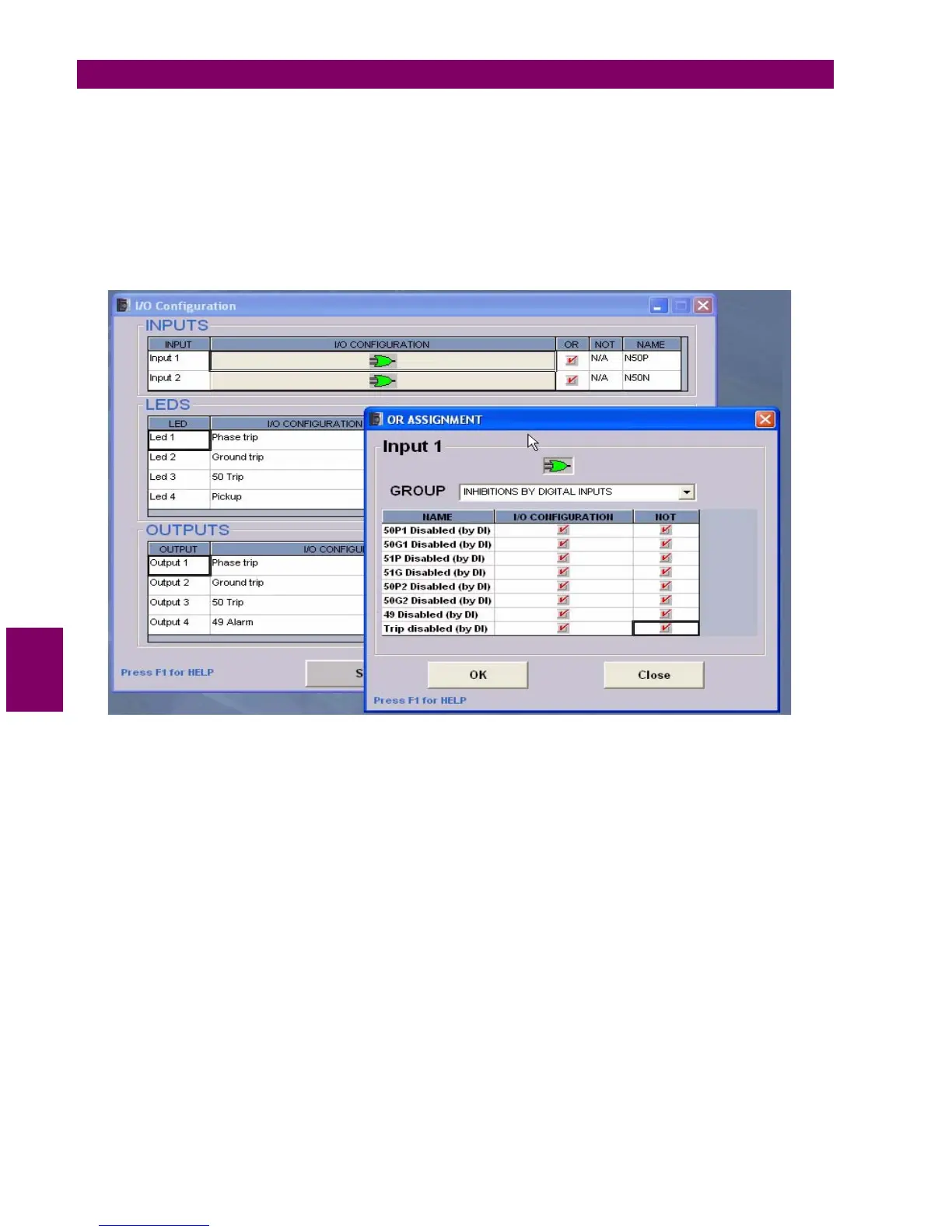

Figure 6–2: INPUT CONFIGURATION WITH MORE THAN ONE FUNCTION (OR)
