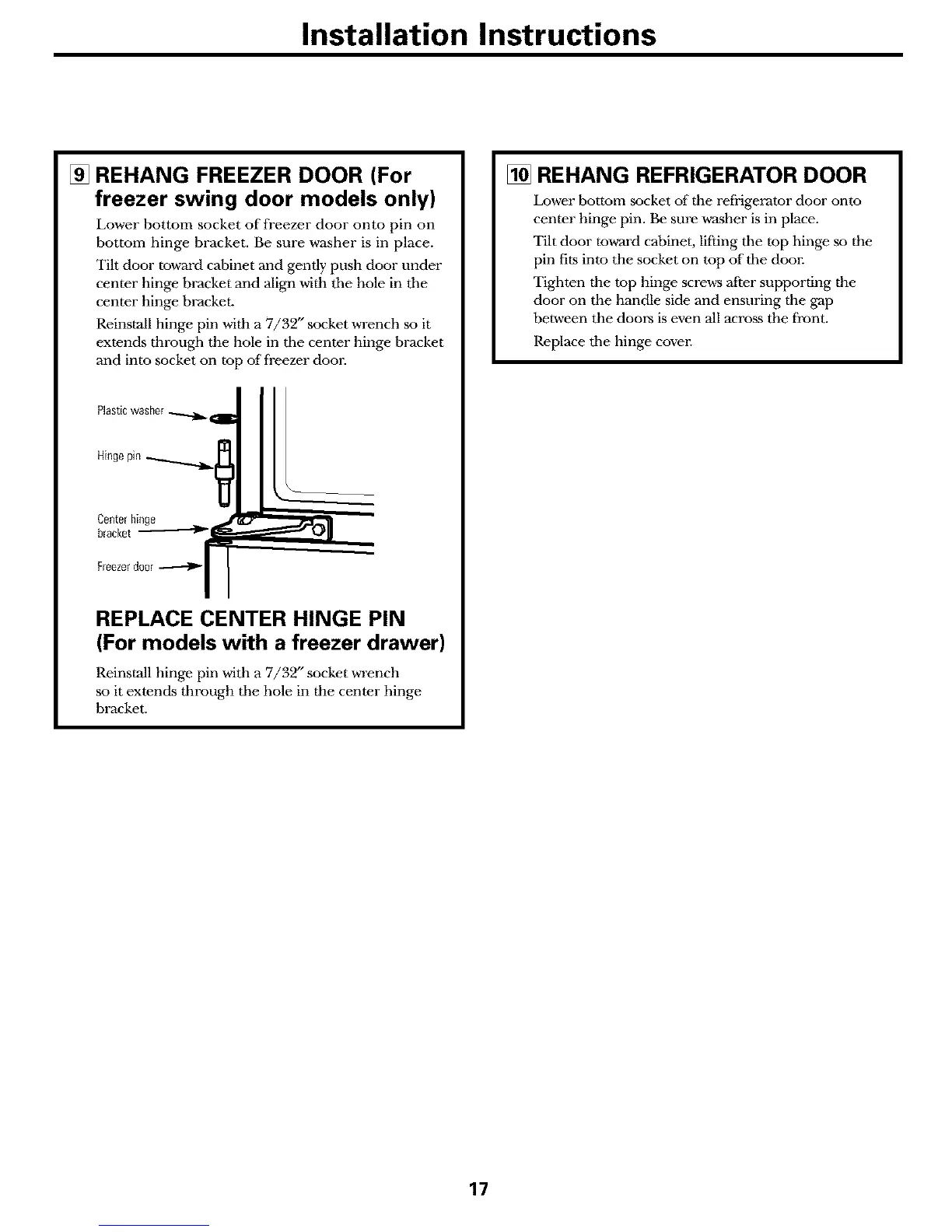

Installation Instructions
[] REHANG FREEZER DOOR (For
freezer swing door models only)
Lower bottom socket of freezer door onto pin Oil
bottom hinge bracket. Be sure washer is in place.
Tilt door toward cabinet and gently push door under
center hinge bracket and align with tile hole in tile
center hinge bracket.
Reinstall hinge pin with a 7/32" socket wrench so it
extends tbrougb the hole in tile center hinge bracket
and into socket on top of freezer door.
fil
Hingepie ........._
U
Centerhinge _ _ _'_l
bracket _5,_,_,---_P-_
Freezerd°°r_l I
REPLACE CENTER HINGE PIN
(For models with a freezer drawer)
Reinstall hinge pin with a 7/32" socket wrench
so it extends tbrough tile hole in the center hinge
bracket.
[] REHANG REFRIGERATOR DOOR
Lower bottom socket of the refi'igerator door onto
center hinge pin. Be sure washer is in place.
Tilt door toward cabinet, lifting tim mp hinge so the
pin fits into the socket on top oftbe door.
Tighten the top hinge screw,s after supporting the
door on the handle side and ensuring the gap
between the doors is even all across the front.
Replace tim hinge cover.
17
