GEK-113000T F650 Digital Bay Controller 1-3
1 GETTING STARTED 1.1 IMPORTANT PROCEDURES
1
1.1.1.2 MAGNETIC MODULE TERMINALS
The transformer module for the VTs and CTs is already connected to a female connector screwed to the case. The
current inputs incorporate shorting bars, so that the module can be extracted without the need to short-circuit the
currents externally. It is very important, for safety reasons not to change or switch the terminals for CTs and VTs.

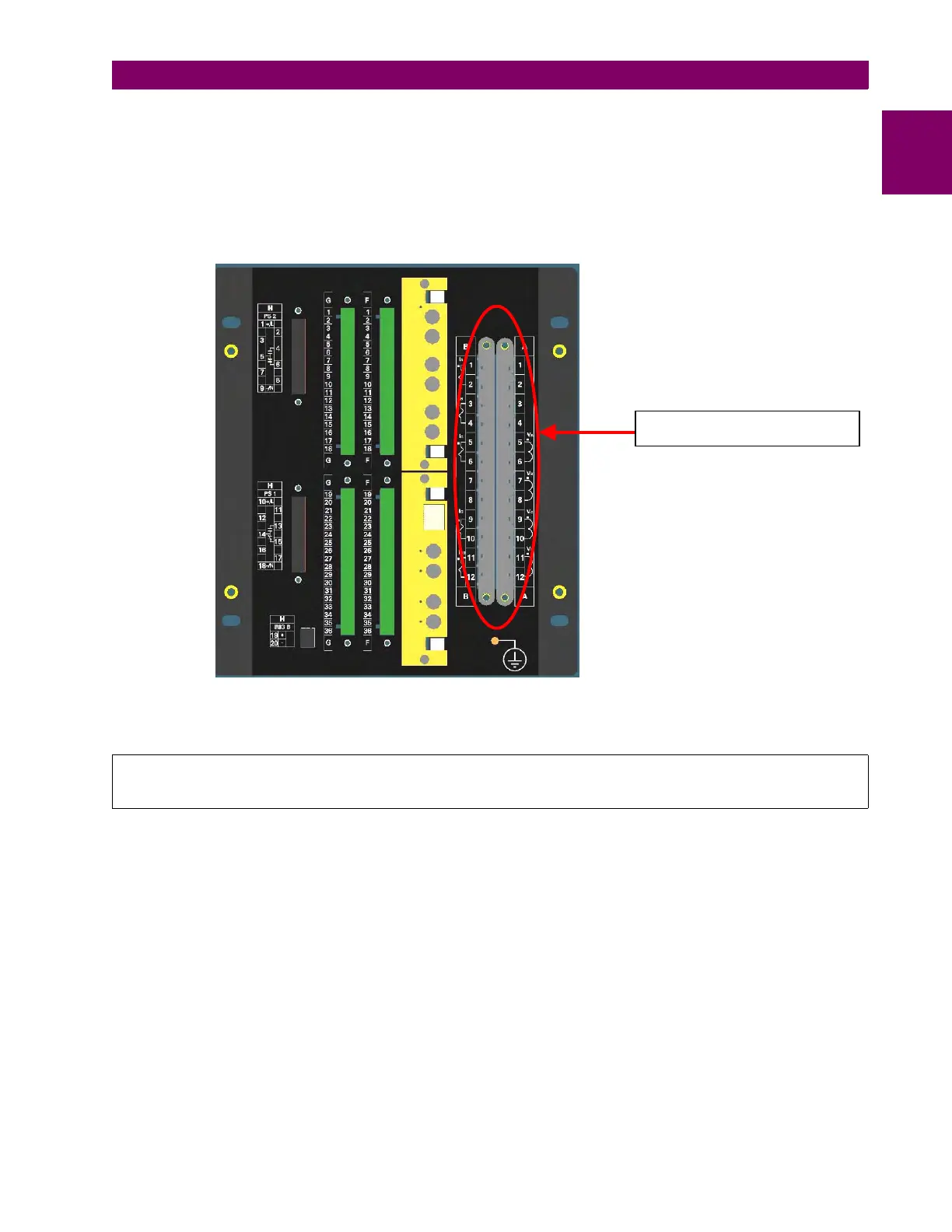

Figure 1–3: REAR VIEW OF F650 UNIT
GE Multilin
will not be responsible for any damage of the relay, connected equipment or personnel
whenever these safety rules are not followed.
AC Input Terminals
