– 34 –
J5
J4
J3

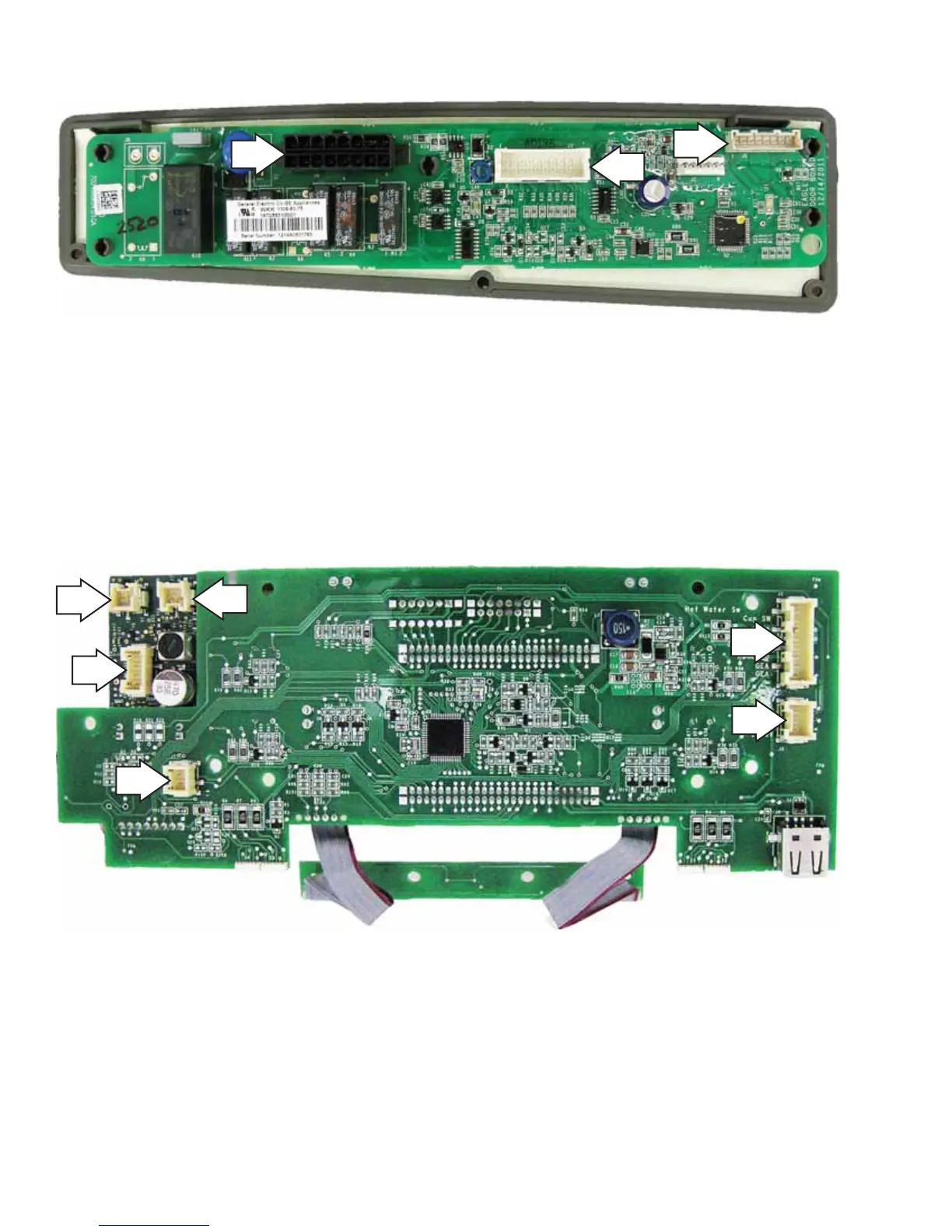

Door Board
J3 - Ice Box Heater Gasket, Freezer LEDs, Articulating Mullion Heater, Icemaker Feeler Arm Sensor, Duct Door
Motor, Flowmeter, Recess Heater, Icemaker Ejector Rake Sensor, Paddle Switch, Icemaker Fill Tube Heater
J4 - L1 Supply, Icemaker Rake Motor, Icemaker Water Valve, Switched L1 Auger Input, Auger Motor, Dispenser
Water Valve, Icemaker Mold Heater, A/C Neutral
J5 - Icemaker Thermistor, 5 VDC, Ice Box Thermistor
Dispenser Board
J7
J2
J3
J3
J4
J5
J2 - Communication, Hot H
2
O LED, 12 VDC, Board Ground, Hot H
2
O Cut Switch
J3 - Paddle Switch
J7 - Sound Module
Sensor Section:
J3 - Upper Ultrasonic Sensor
J4 - Upper Ultrasonic Sensor
J5 - Lower Ultrasonic Sensors
