– 79 –

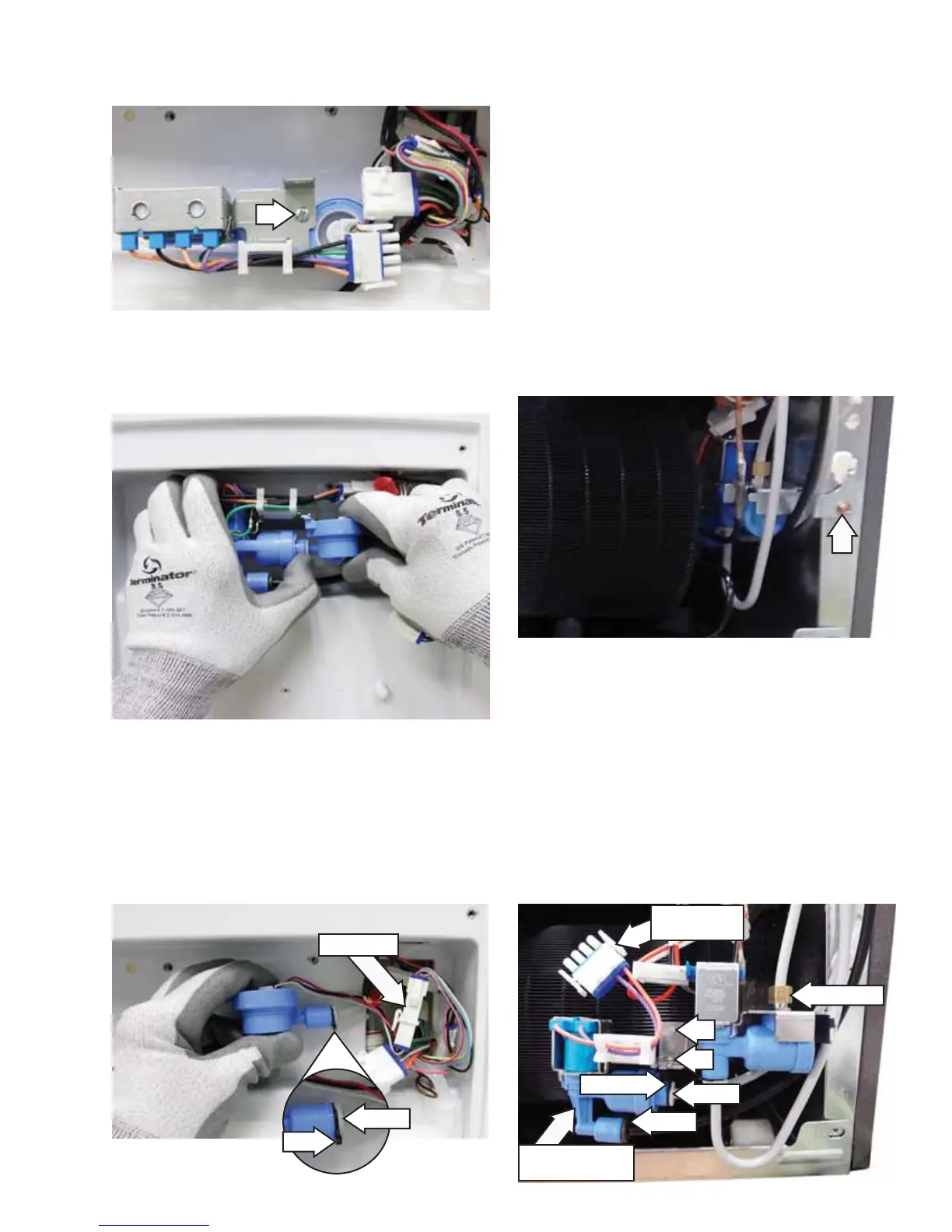

6. Rotate the water valve and remove the Phillips-
head screw from the top of the fl owmeter.
7. Carefully push the fl owmeter collar in while
simultaneously rotating and pulling the fl ow-
meter out from the coupling.
8. Using a fl at blade screwdriver, push the plastic
lock clip off the fl owmeter inlet coupling.
9. Carefully push the fl owmeter inlet collar in while
pulling the inlet water line out from the coupling.
10. Disconnect the fl owmeter wire harness.
Disconnect
Clip
Collar
Freezer Icemaker Water Valve GE/Adora Models
The freezer icemaker water valve receives fi ltered
water and supplies this water to the freezer
icemaker. The valve coil has an approximate
resistance value of 400 Ω.
The freezer icemaker water valve is located in the
machine compartment to the right of the condenser
and is attached to the isolation valve bracket.
To remove the freezer icemaker water valve:
1. Remove the machine compartment cover. (See
Machine Compartment Cover.)
2. Remove the 1/4-in. hex-head screw and valve
assembly from the cabinet.
3. Shut off water supply to refrigerator and then
remove the 1/2-in. nut that attaches the water
supply line to the isolation water valve.
4. Disconnect the water valve wire harness.
5. Remove the plastic lock clips from the couplings,
then carefully push each collar in while pulling
each water line out from the valve.
Note: See note on page 78 regarding lock clips.
6. Remove the 2 Phillips-head screws from bracket.
1/2-in. Nut
Freezer Icemaker
Water Valve
Lock Clip
Collar
Collar
Disconnected
Harness
To Next Page
