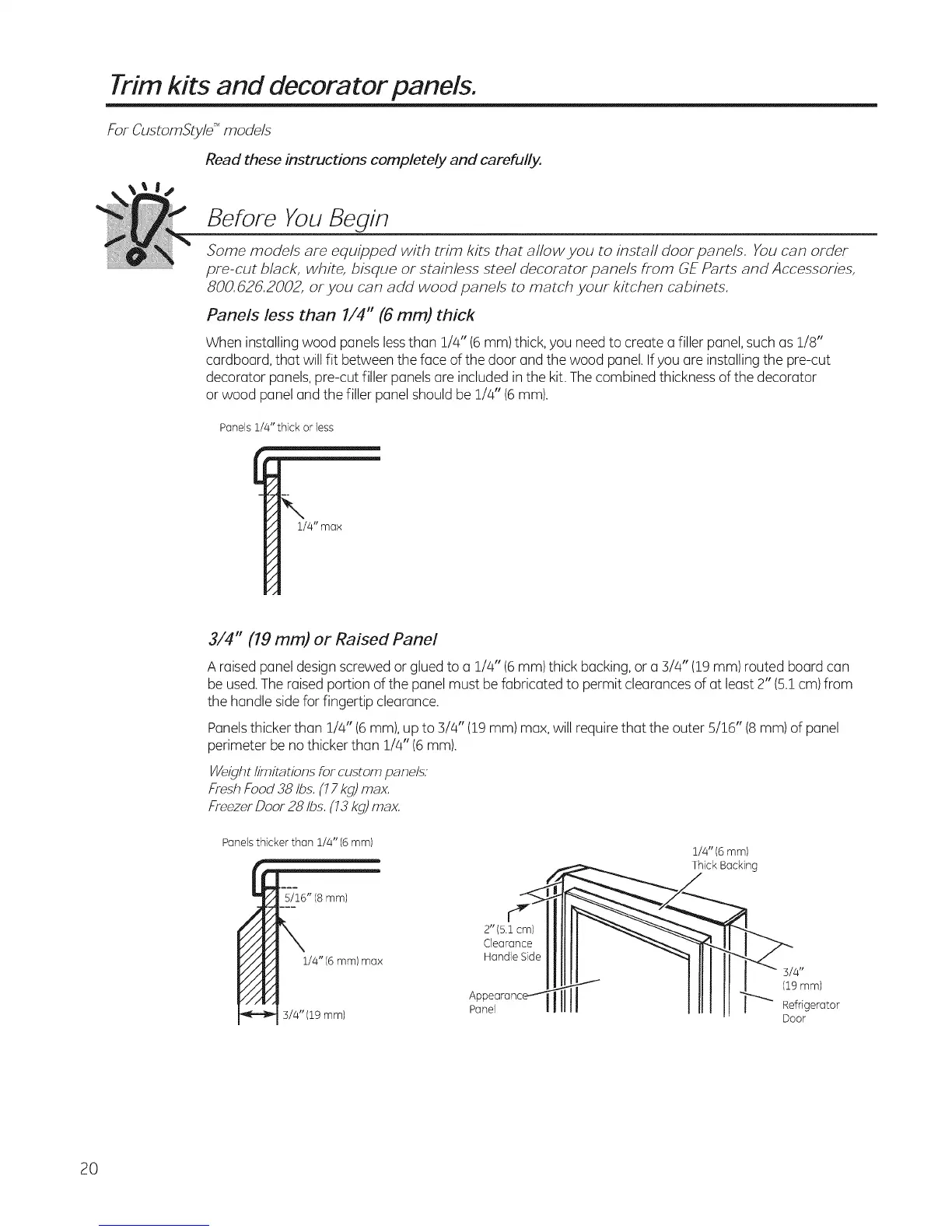

Trim kits and decorator panels.
For CustomSty/e _'_models
Read these instructions completely and carefully.
Before You Begin
Some models are equipped with trim kits that a//ow you to install door panels. You can order
pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories,
800.626.2002, or you can add wood panels to match your kitchen cabinets.
Panels less than 1/4" (6 mm) thick
When installing wood panelslessthan 1/4" (6mm) thick, you need to create u filler panel,such us 1/8"
cardboard, that will fit between the face of the door and the wood panel.Ifyou are installing the pre-cut
decorator panels,pre-cut filler panels are included in the kit.The combined thicknessof the decorator
or wood panel and the filler panel should be 1/4" (6 mm).
Panels 1/4"thick or less
\
1/4" max
3/4" (19 mm) or Raised Panel
A raised panel design screwed or glued to @!/a" (6mm) thick bucking,or @3/4" (19 mm) routed board can
be used.The raised portion of the panel must be fabricated to permit clearances of at least 2" (5.1cm)from
the handle side for fingertip clearance.
Panelsthicker than !/4" (6 mm),up to 3/4" (19 mm) max, will requirethat the outer 5/16" (8mm) of panel
perimeter be no thicker than !/4" (6mm).
Weight limitations for custom panels;
Fresh Food 38 Ibs, (17 kg) max,
Freezer Door 28 Ibs, (73 kg) max,
Panelsthicker than 1/4" (6mm)
5/16" (8 ram)
1/4" (6 ram) max
3/4" (19 ram)
1/4" (6ram)
Thick Backing
ooo;
20
