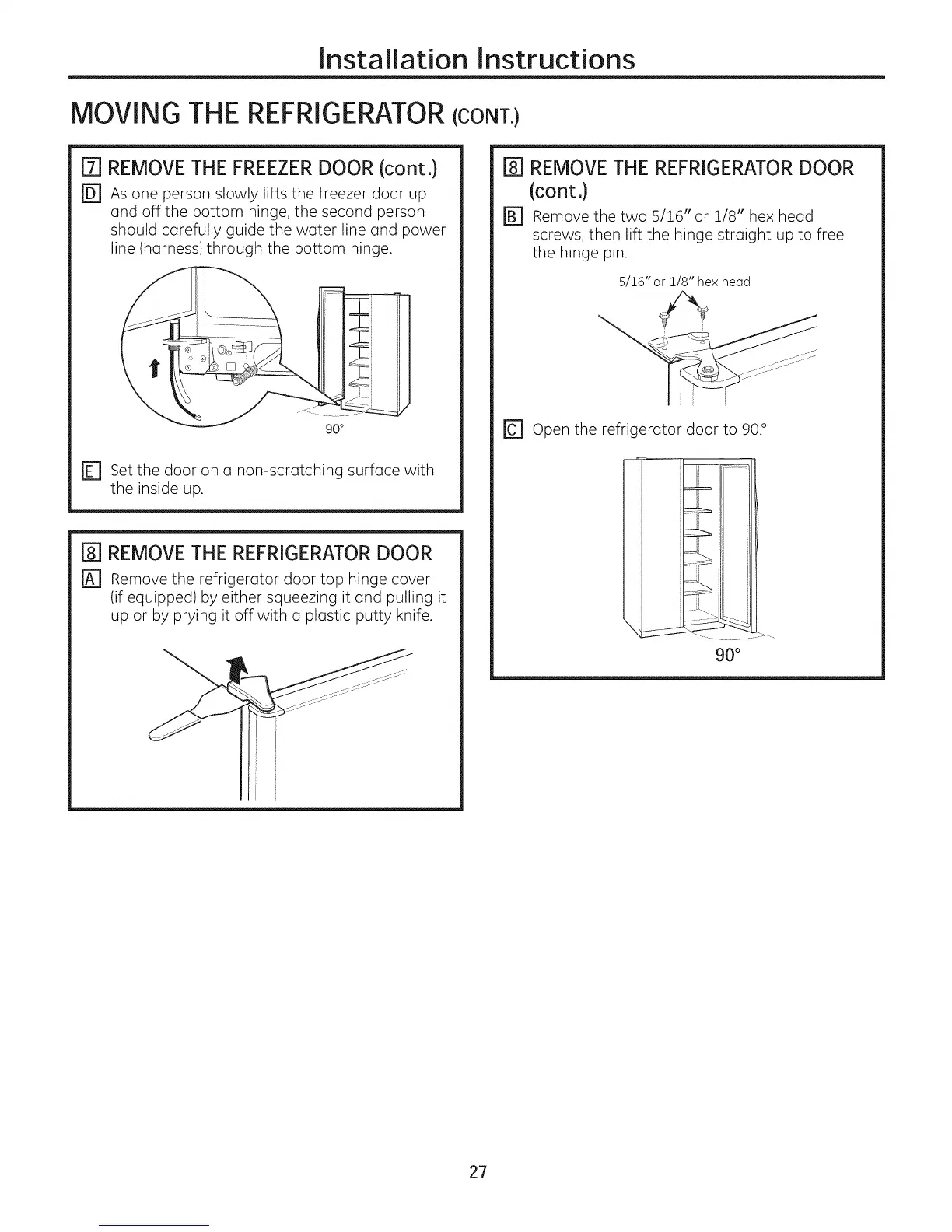

Installation Instructions
MOVING THE REFRIGERATOR(CONT.)
[Z] REMOVE THE FREEZER DOOR (cont.)
rD1 As one person slowly lifts the freezer door up
and off the bottom hinge, the second person
should corefully guide the water line and power
line (harness) through the bottom hinge.
r_ set the door on a non-scratching surface with
the inside up.
[] REMOVE THE REFRIGERATOR DOOR
[A1 Remove the refrigerator door top hinge cover
(if equipped) by either squeezing it and pulling it
up or by prying it off with a plastic putty knife.
[] REMOVE THE REFRIGERATOR DOOR
(cont.)
rB1 Remove the two 5/16" or 1/8" hex head
screws, then lift the hinge straight up to free
the hinge pin.
5/16" or 1/8" hex head
[] Open the refrigerator door to 90.°
J
H
u.
90 °
27
