Page 10
III. SERVICE GUIDE

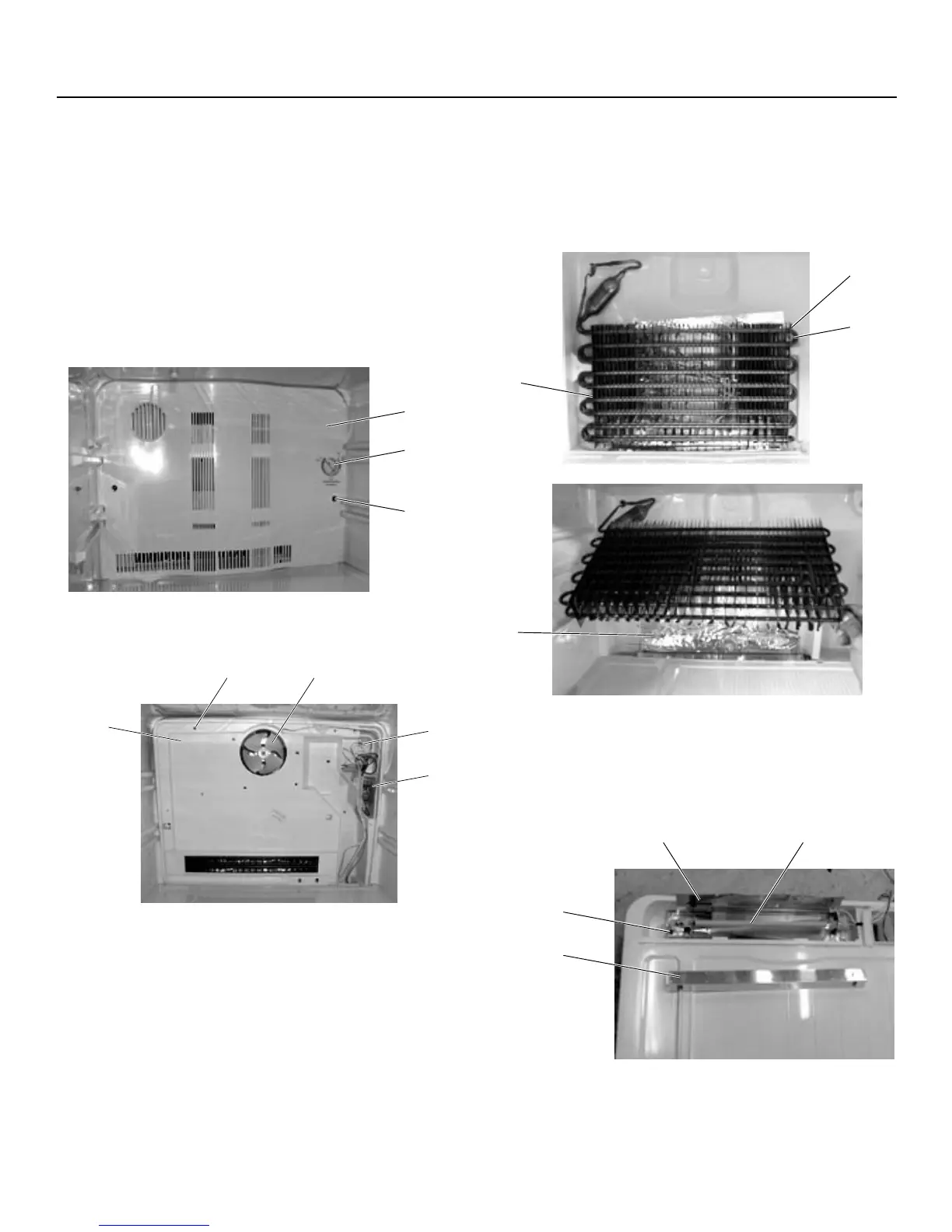

3.2 REPLACEMENT OF HEATER
3.2.1 Draw out the ice storage box.
3.2.2 Pull the case holder of ice silder.
3.2.3 Remove screw and F knob.
3.2.4 Remove F louver and pull the connector.
3.2.5 Remove EV cover screw and remove the
EV cover.
3.2.6 Remove the EV screw and up the EV
assy.
3.2.7 Remove the heater cover.
3.2.8 Remove the screws (2 pcs).
3.2.9 Rend the al. foil and remove heater
support.
3.2.10 Remove heater.
F knob
screw
F louver
F-THM
connector
EV cover assy
fanscrew
EV assy
screw
screw
foil
screw
heaterheater support
heater cover
To Next Page
