Page 12
III. SERVICE GUIDE
3.5 REPLACEMENT OF DAMPER THERMO
3.5.1 Remove the lamp cover.
3.5.2 Remove the multi air louver screw.
3.5.3 Remove the wiring cover.
3.5.4 Remove the multi air louver assy.
3.5.5 Remove the R control box scrwe.
3.5.6 Remove the R control box assy.
3.5.7 Remove the R air guide.
3.5.8 Remove the damper thermo and replace.

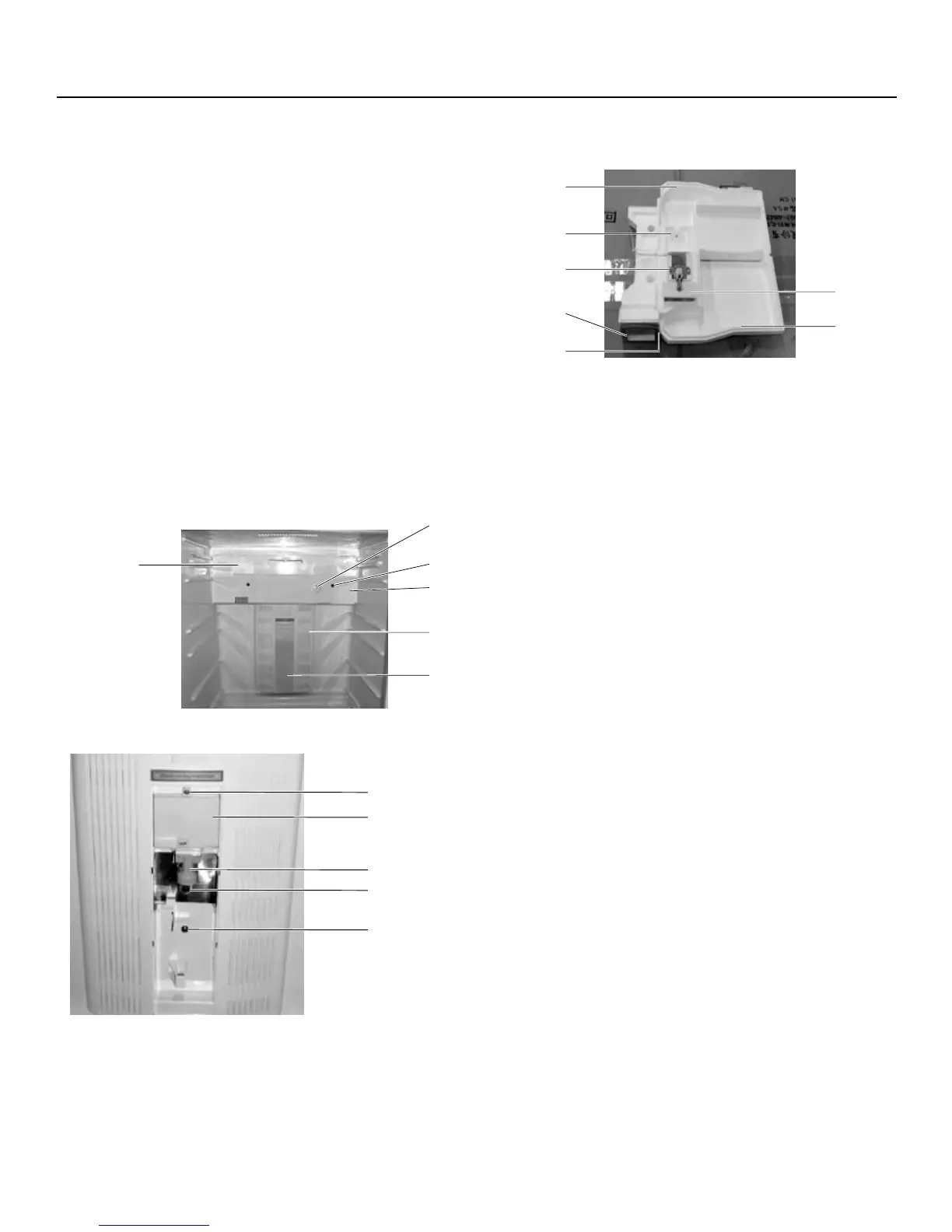

R control box assy
multi air louver
lamp cover
drain hole cover
screw
F knob
lamp
wiring cover
lamp holder
screw
screw
R air guide bottom
damper thermo
R knob sealer
screw
R air guide top
B-THM support
R air guide sealer
