Page 14
III. SERVICE GUIDE
3.8 REPLACEMENT OF PTC & OLP
OVERLOAD RELAY
3.8.1 Remove the compressor cover.
3.8.2 Remove electric box clamp.
3.8.3 Remove electric box.
3.8.4 Remove PTC & OLP and replace PTC &
OLP.

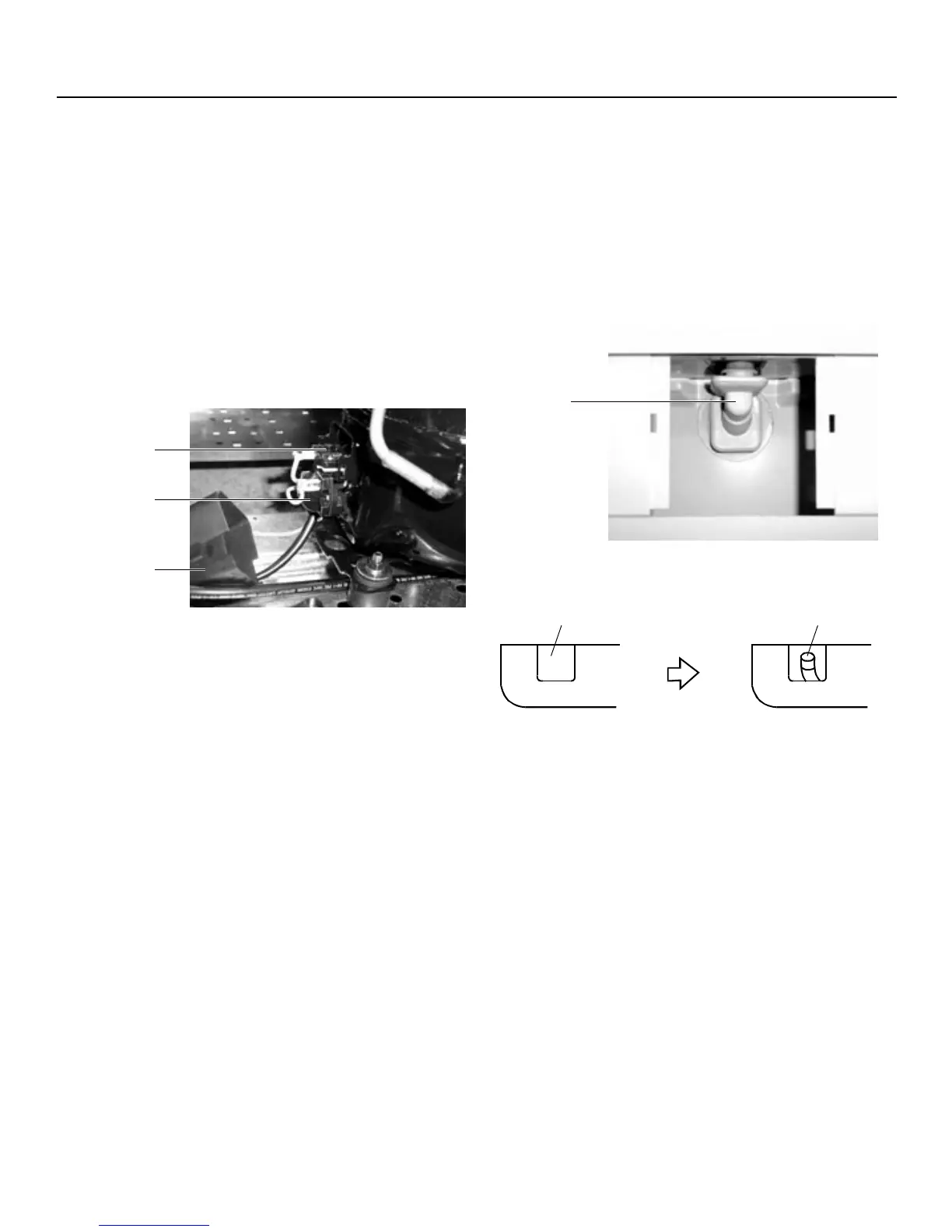

electric box
start relay
OLP overload relay
3.9 HOW TO CLEAN DRAIN PIPE
3.9.1 Remove drain hole cover.
3.9.2 Remove drain connector.
3.9.3 Clean connector & drain pipe.
drain connector
Dismounting and Cleaning of Drainage Pipe
Control box
Drainage hole cover Drainage pipe
Before opening the box After opening the box
3.9.4 Water Drainage
i. The water drainage adapter in the
drawer should be cleaned every 6
months to 1 year to keep it from being
obstructed. This avoids poor drainage
and refrigeration.
ii. The water drained from the refrigerator
is drained into the evaporation pan
from the drainage system.
iii. Water in the evaporation pan shall be
duly evaporated by the radiator. There
is no need to remove it.
iv. After some time, dust or impurity
builds up in the evaporation pan and
produces odor. This should be
cleaned once a month.
