Installation Instructions
28

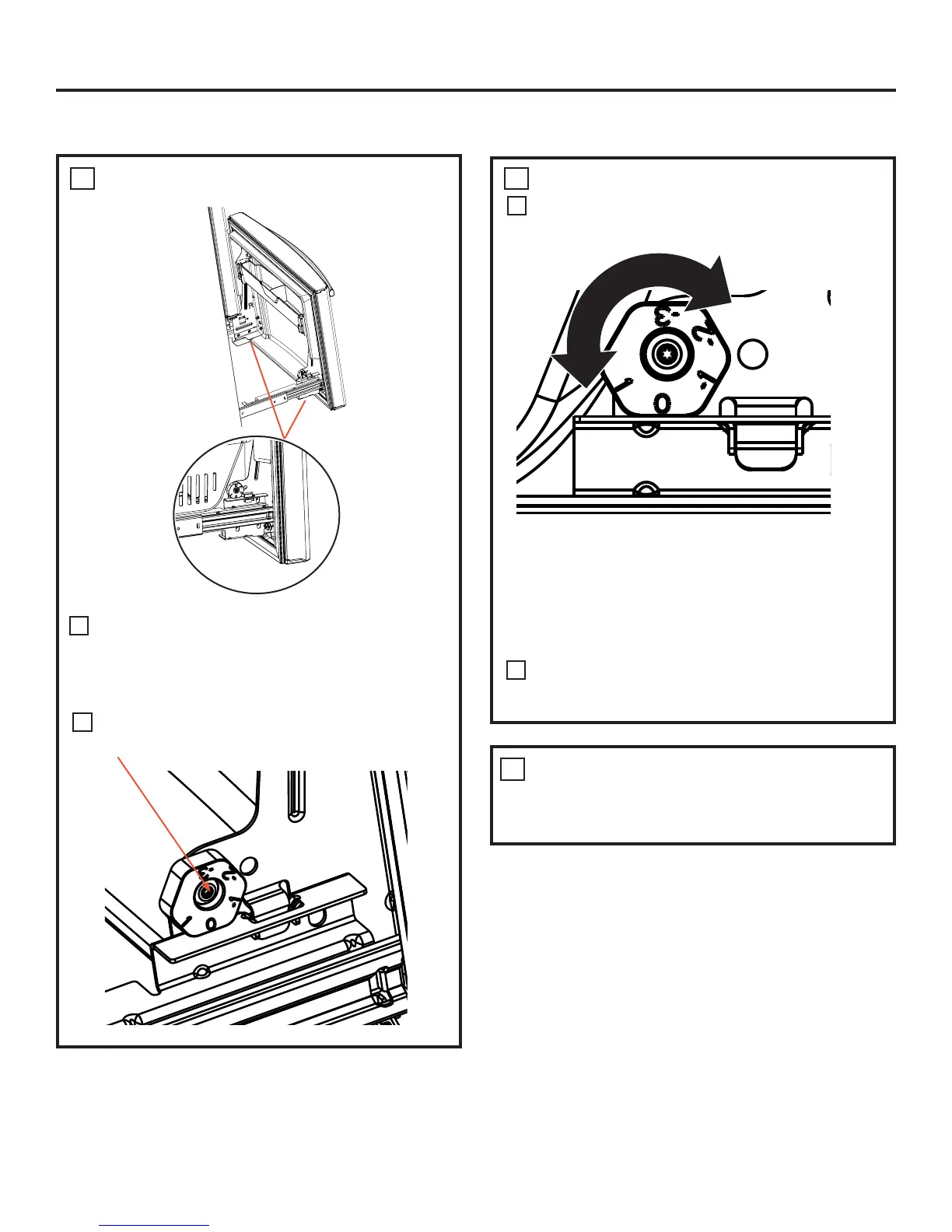

LEVEL THE FREEZER DOOR
Locate the height adjuster cam in the freezer
door. Slightly loosen the three door attachment
screws on both sides using a 3/8” hex socket
driver.
Locate and loosen the cam screw using the
T-27 screw driver.
8
A
B
REMOVE PACKAGING
A) Remove all tape, foam and protective
packing from shelves and drawers.
10
LEVEL THE FREEZER DOOR (cont.)
Lift the door on the side requiring adjustment,
rotate the cam to required position.
After adjustment tighten the 3 attachment
screws using to 65 in-lb.
9
INSTALLING THE REFRIGERATOR (cont.)
0 - Initial position
1 - Lift by 0.050”
-1 - Lower by 0.050”
-2 - Lower by 0.100
-3 - Lower by 0.150”
A
B
To Next Page
