GFK-2958E RSTi-EP User Manual 178

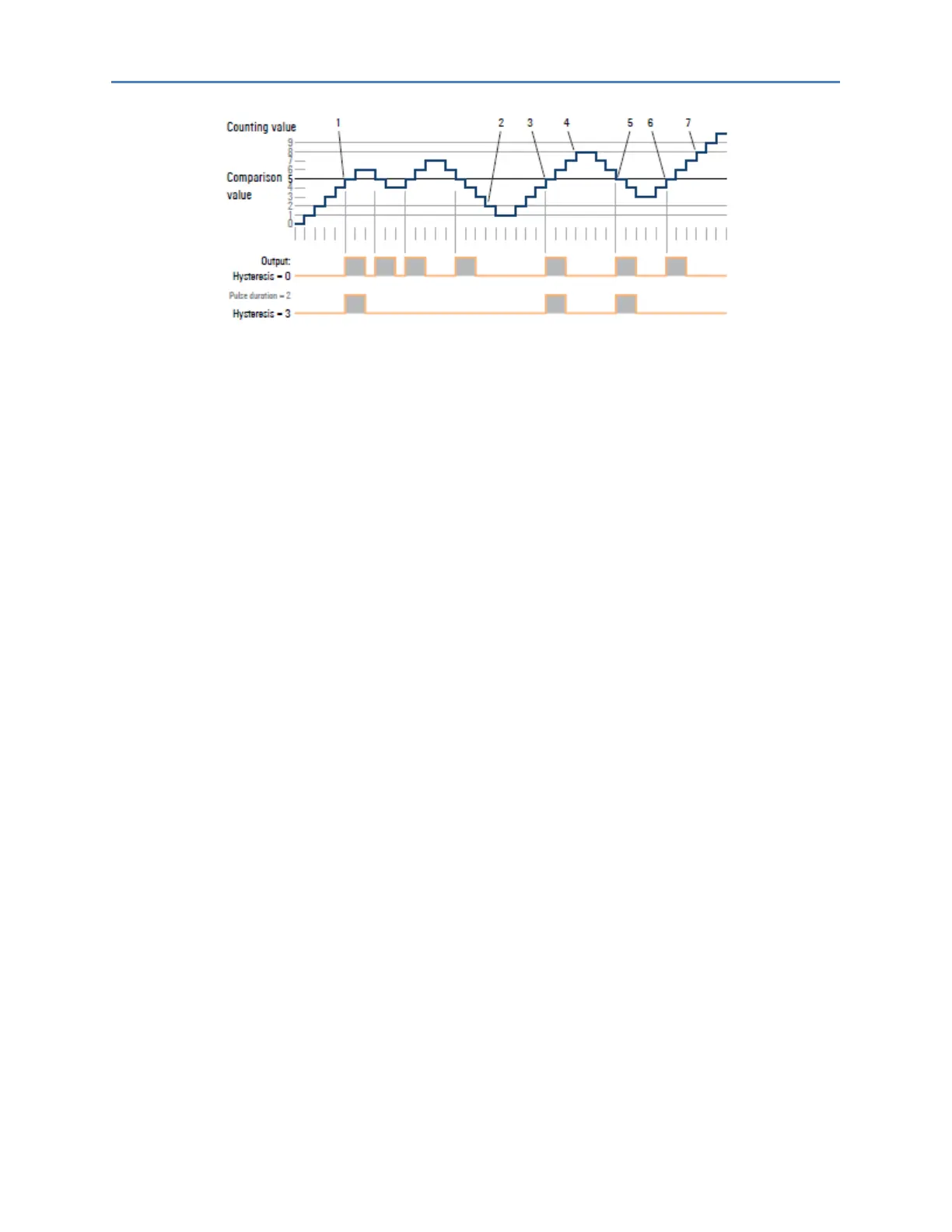

Operating Principle of the Hysterersis when Counter Value = Comparison Value, Pulse Duration 2
1 Comparison condition met ➝ pulse of the parameterised duration is output, hysteresis activated
2 Leaving the hysteresis range ➝ hysteresis deactivated
3 Comparison condition met ➝ pulse of the parameterised duration is output, hysteresis activated
4 Leaving the hysteresis range ➝ hysteresis deactivated
5 Comparison condition met ➝ pulse of the parameterised duration is output, hysteresis activated
6 Comparison condition met and hysteresis active ➝ no pulse
7 Comparison condition not met, leaving the hysteresis range ➝ hysteresis deactivated
