Ld3catim

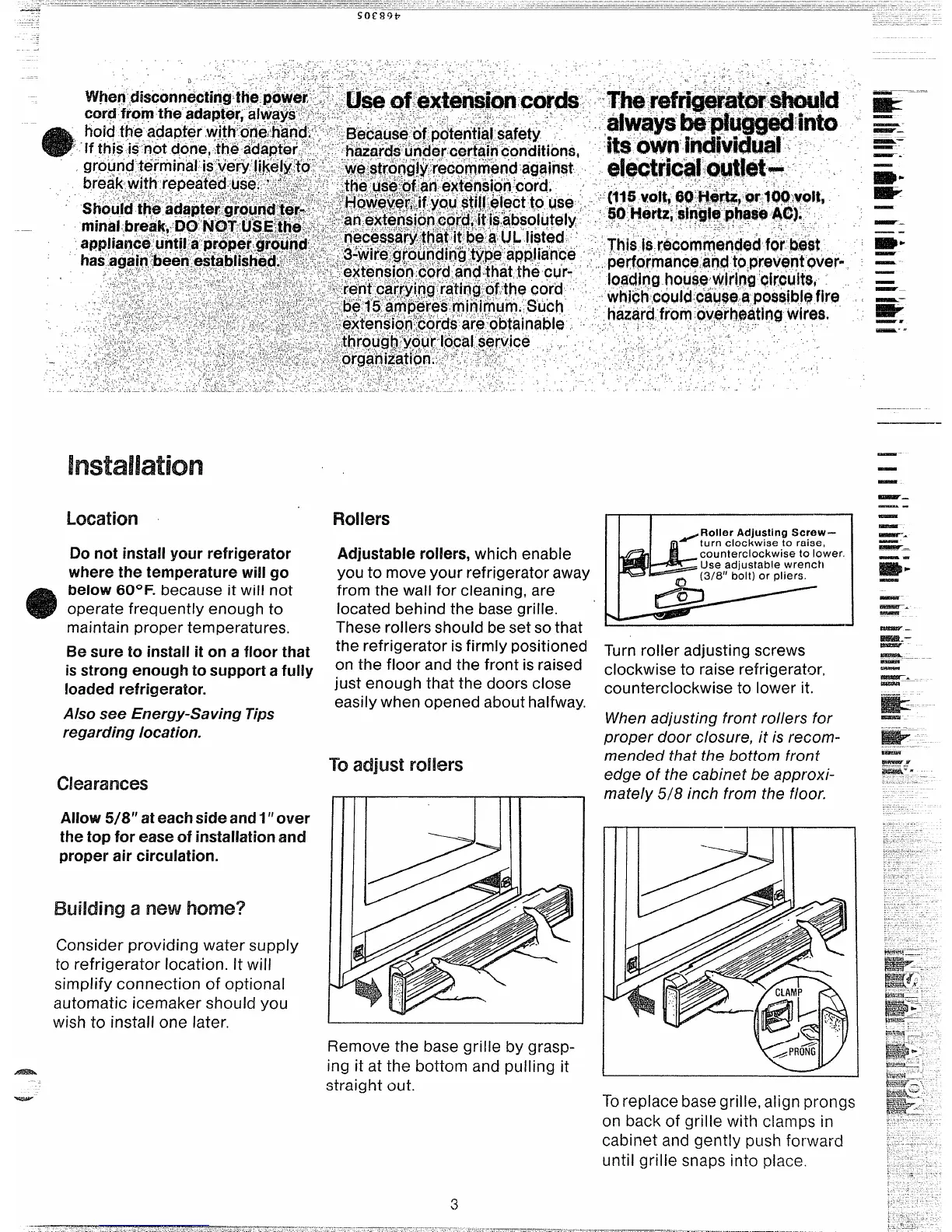

Do not install your refrigerator
where the temperature will go
below 60°F. because it will not
operate frequently enough to
maintain proper temperatures.
Be sure to install it on a floor that
isstrong enough to support a fully
loaded refrigerator.
Also see Energy-Saving Tips
regarding location.
——
—
—.
Allow 5/8” ateach side and 1”over
the top for ease of installationand
proper air circulation.
Consider providing water supply
to refrigerator location. It will
simplify connection of optional
automatic icemaker shou!d you
wish to install one later.
Rollers
Adjustable rollers, which enable
you to move your refrigerator away
from the wall for cleaning, are
located behind the base grille.
These rollers should be set so that
the refrigerator is firmly positioned
on the floor and the front is raised
just enough that the doors close
easily when opened about halfway.
-lbadjust rdkm
Clearances
Remove the base grille by grasp-
ing it at the bottom and pulling it
straight out.
,!,
., ‘
ml--f%?
I
1Ill
_ Roller Adjusting Screw-
turn clockwise to raise,
1
-counterclockwise to lower.
I
= lJse adjustable wrench
I v~
.+ (3/8” bolt) or pliers.
I
Turn roller adjusting screws
clockwise to raise refrigerator,
counterclockwise to lower it.
When adjusting front rollers for
proper door closure, it is recom-
mended that the bottom front
edge of the cabinet be approxi-
mately 5/8 inch from the floor.
To replace base grille, align prongs
on back of grille with clamps in
cabinet and gently push forward
until grille snaps into place.
3
—
—-
—.
—
