Probes and Biopsy
5-26 Venue 50 – Basic User Manual
Direction 5446729-100 English
Rev. 7
Displaying the Guidezone (continued)

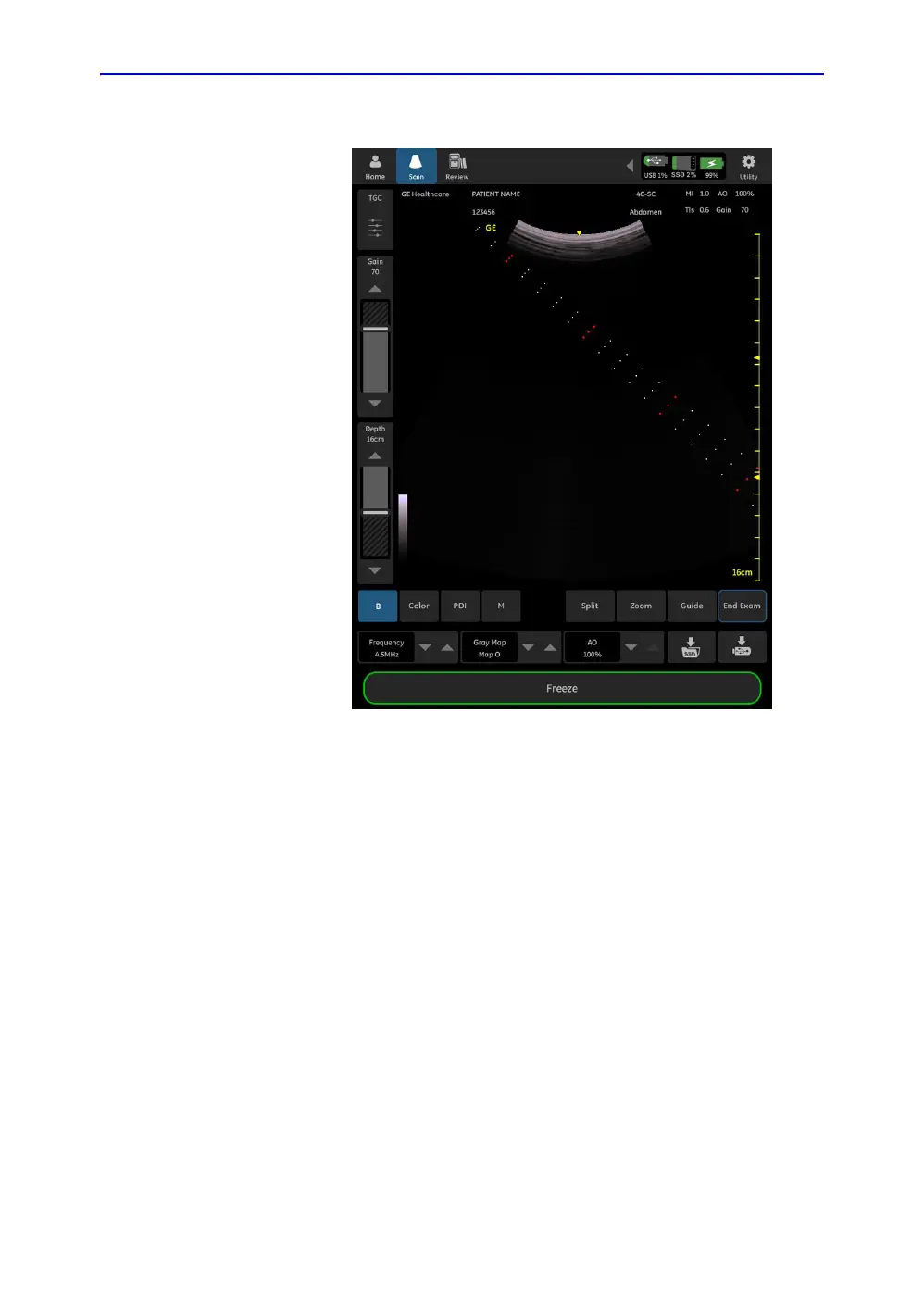

Figure 5-4. Biopsy Guidezones
The biopsy guidezone represents a path of the needle. The dots
which make up the guidezones indicates the depth readout
where:
• White represents 1 cm increments.
• Red represents 5 cm increments.
The display should be carefully monitored during a biopsy for
any needle deviation from the center line or guidezone.
Before scanning, verify the needle can be visualized within the
imaging plane. Use the appropriate needle to reach target area.
