System Setup
3-16 Venue 50 – Basic Service Manual
5447566-100 English Rev. 7
Unpacking Docking Cart
1. Cut the adhesive tape.
2. Open the top cover of paper carton.
3. Rotate the plastic locker counter clockwise and pull it out.
Unlock all the four plastic lockers.
4. Remove the carton frames on both sides.
5. Remove all the foam and the ESD bag, cut the wire ties on
the chassis. Take out the Docking Cart.

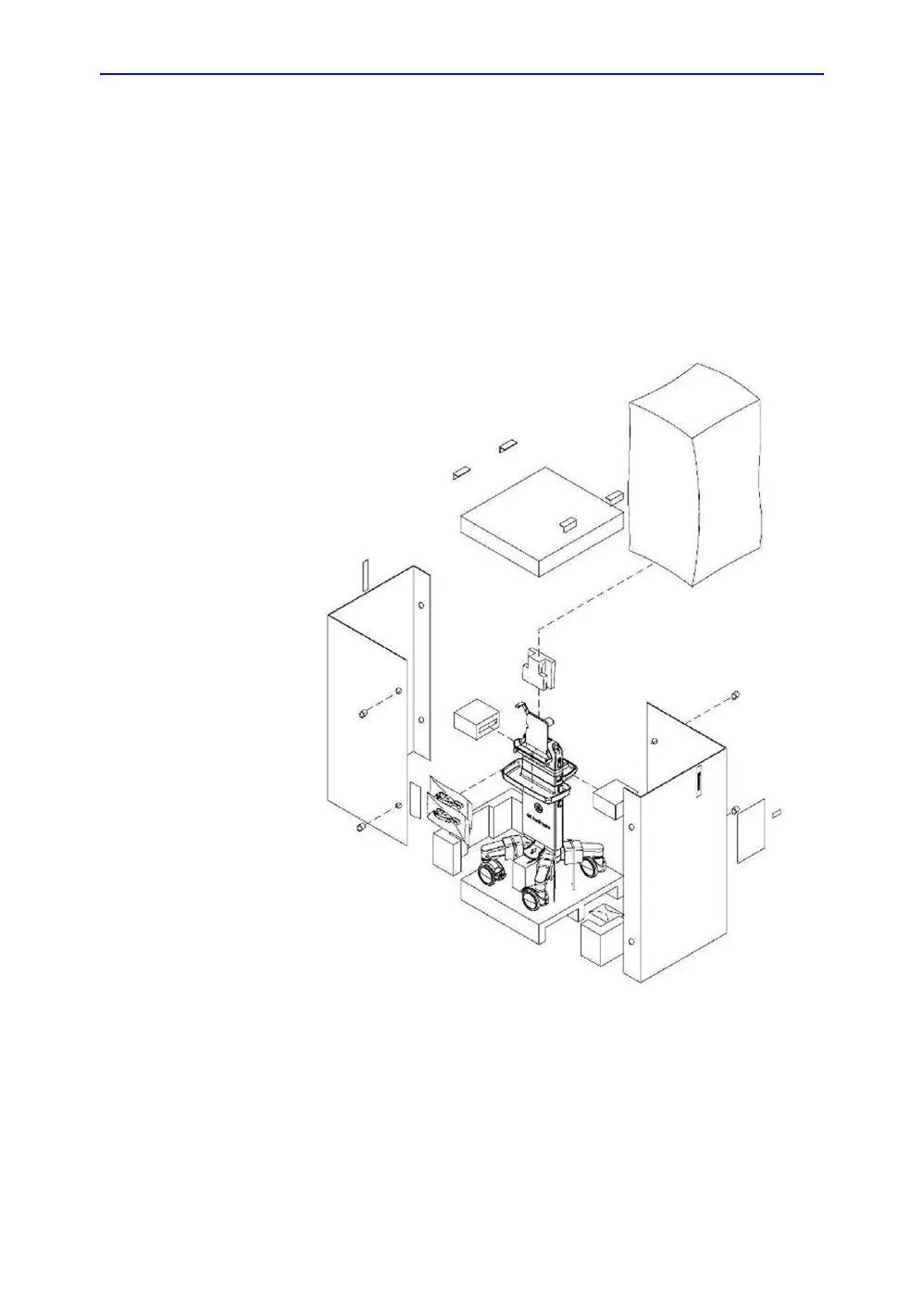

Figure 3-9. Unpack the Docking Cart
