8-2-9-5 C-FEB Installation Procedure
1.) Connect the metal bracket to the board

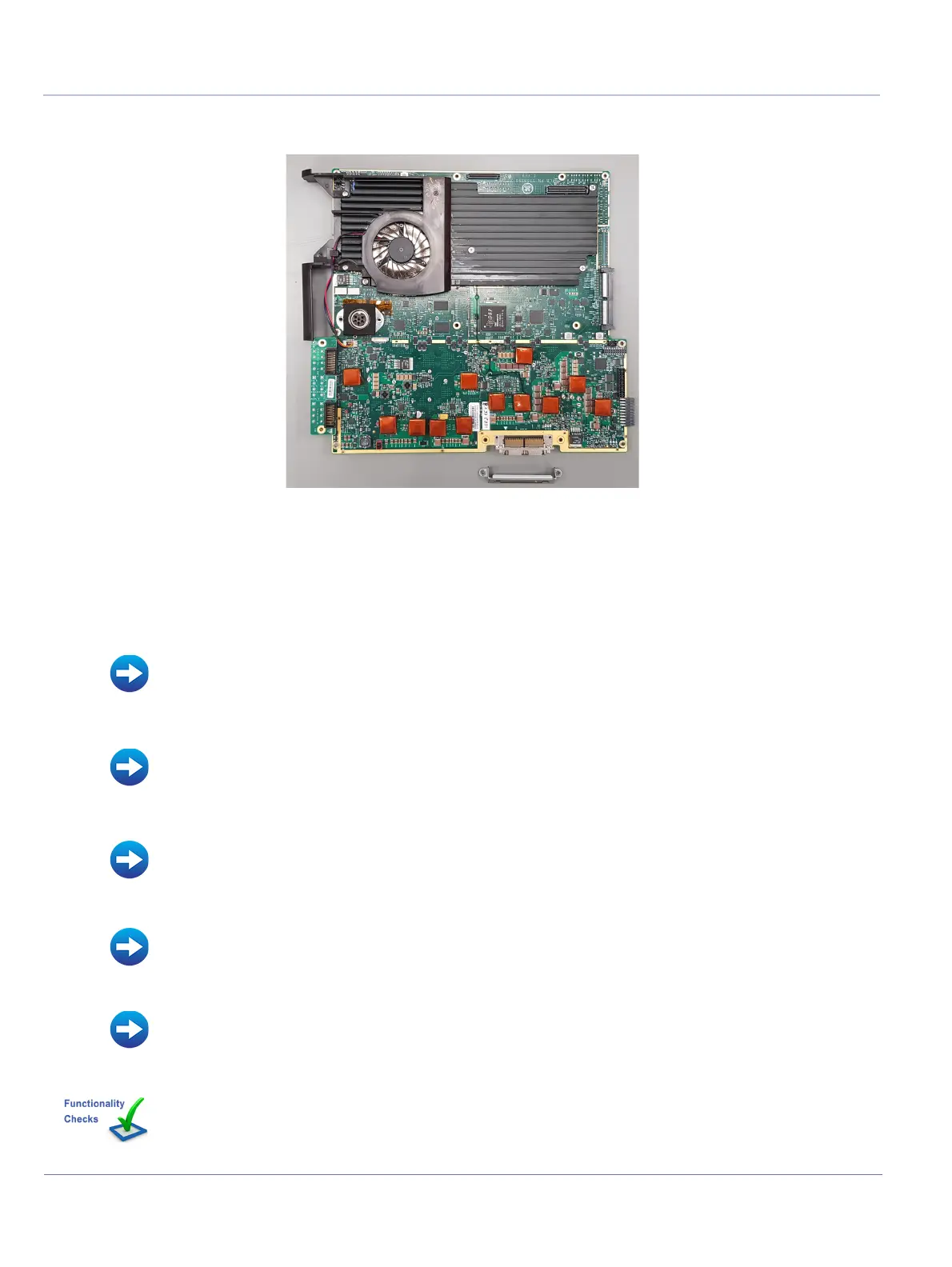

Figure 8-48 Removed C-FEB
2.) Install the C-FEB so that the docking connector goes inside the docking bracket on the Front
Display assembly.
3.) Secure the 8 holding screws.
4.) Route the Front Display Indicator Cable.
5.) Install the M-BEB.
6) Install the fan.
7.) Install the M-PSB.
8.) Install the Speakers.
9.) Install Rear cover.
• M-BEB Installation Procedure
• Fan Installation Procedure
• M-PSB Installation Procedure
• Speakers Installation Procedure
• Rear Cover Installation Procedure
Perform the checks listed in Tab l e 8-3 6 - System Parts section
