GE Venue Fit - Touch Display Assembly Installation Procedure

DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
8-24 Chapter 8 - Replacement Procedures
PRELIMINARY
Front display is now clear of all elements.

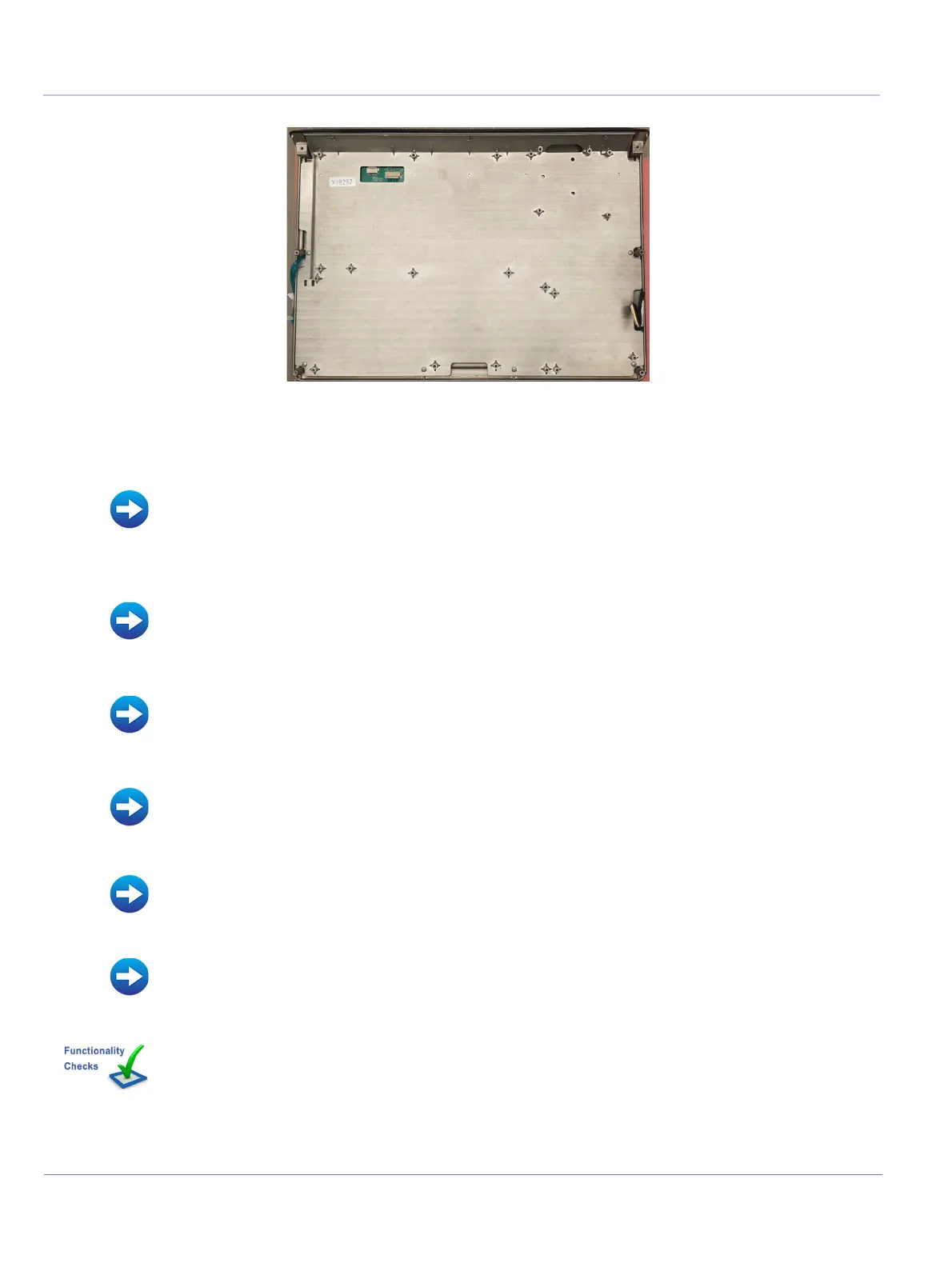

Figure 8-49 Touch Display Assembly Removed
8-2-10-5 Touch Display Assembly Installation Procedure
1.) Install the C-FEB
2.) Connect the Front Display Indicator Cable to the C-FEB.
3.) Install the M-BEB.
4) Install the fan.
5.) Install the M-PSB.
6.) Install the Speakers.
7.) Install Rear cover.
• C-FEB Installation Procedure
• M-BEB Installation Procedure
• Fan Installation Procedure
• M-PSB Installation Procedure
• Speakers Installation Procedure
• Rear Cover Installation Procedure
Perform the checks listed in Tab l e 8-3 6 - System Parts section
