DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-33
PRELIMINARY
4.) using your thumb, push down the latch and pull out the ECG module..
8-2-14-5
ECG Installation Procedure
1) Install the ECG module into its bracket.
2.) connect the USB cable and the ECG leads

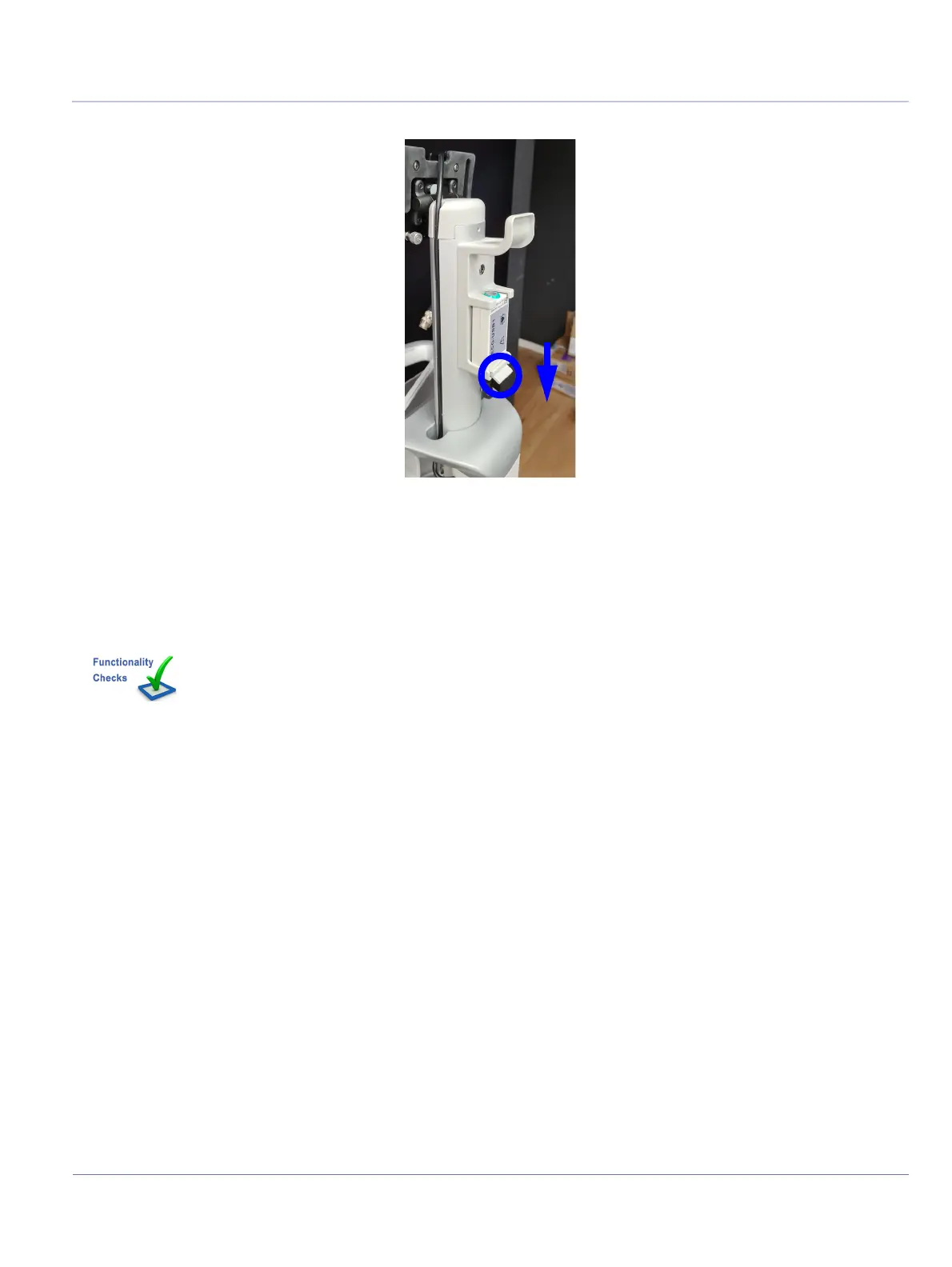

Figure 8-57 Remove ECG module
Perform the checks listed in Tab le 8 - 3 6 - Peripherals section
