GFK-1504N Chapter 5 Interposing Terminals and Auxiliary I/O Terminal Strips 5-19
IC200CHS121, Main Base
IC200CHS122, Expansion Base
Fuse-Style Interposing I/O Terminals
The Fuse-Style Interposing I/O Terminals (IC200CHS121 and IC200CHS122)
provide interface to a Connector-Style I/O Carrier to field wiring and provide an
integrated fuse solution for field devices connected to VersaMax I/O modules.
Main and Expansion Base
Two different versions of the Fuse-Style Interposing I/O Terminals are available,
the main and expansion bases. The Main Base, IC200CHS121, provides
terminals that correspond to the "A" terminals on a VersaMax I/O module. If the
I/O module also has "B" terminals, an Expansion Base (IC200CHS122), is also
needed.

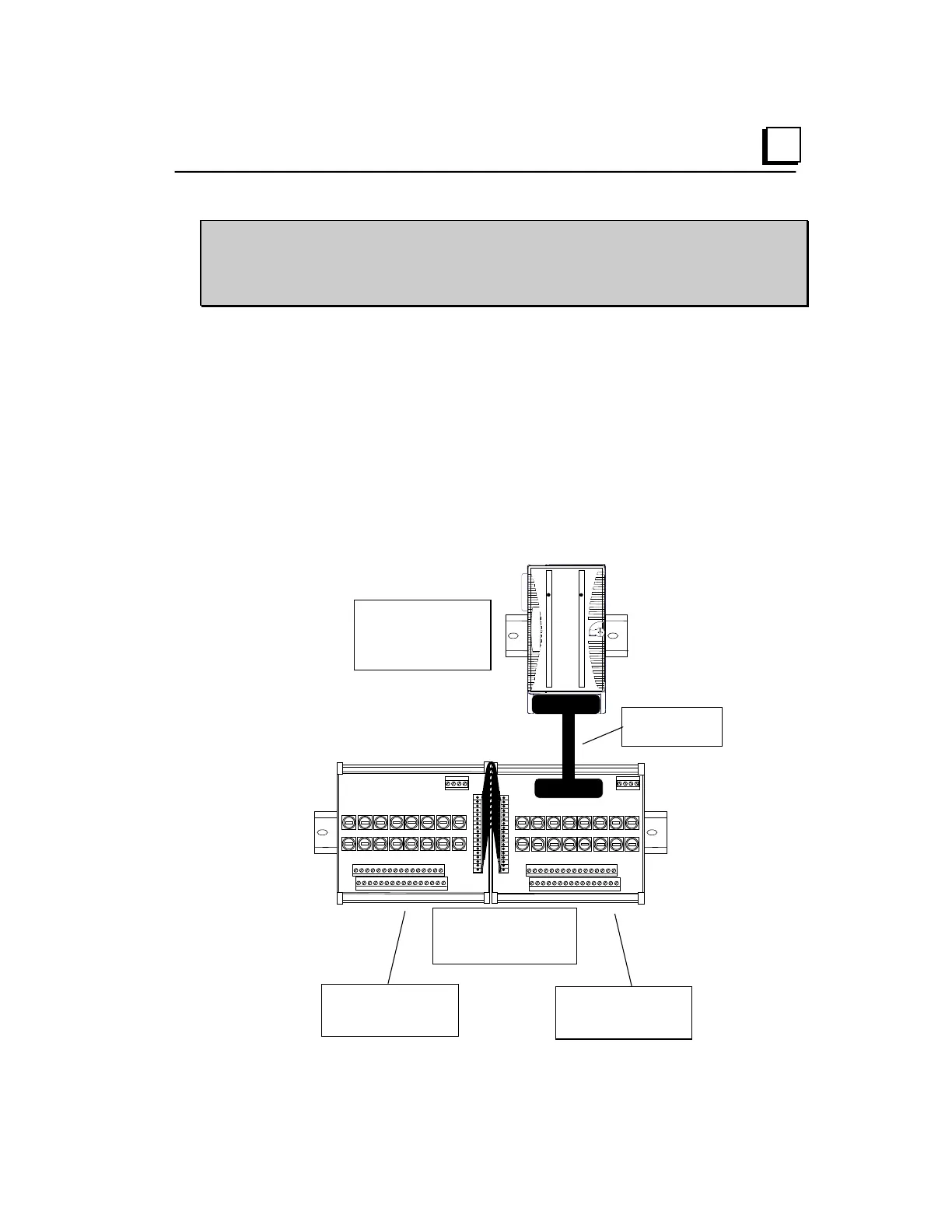

VersaMax I/O Module
mounted on
Connector Carrier
IC200CHS003
Fuse-Style Interposing
I/O Main Base
IC200CHS121
Wire Cable
(included with
IC200CHS122)
Fuse-Style Interposing
I/O Expansion Base
IC200CHS122
To Next Page
