GFK-1504N Chapter 7 Discrete Input Modules 7-7
7

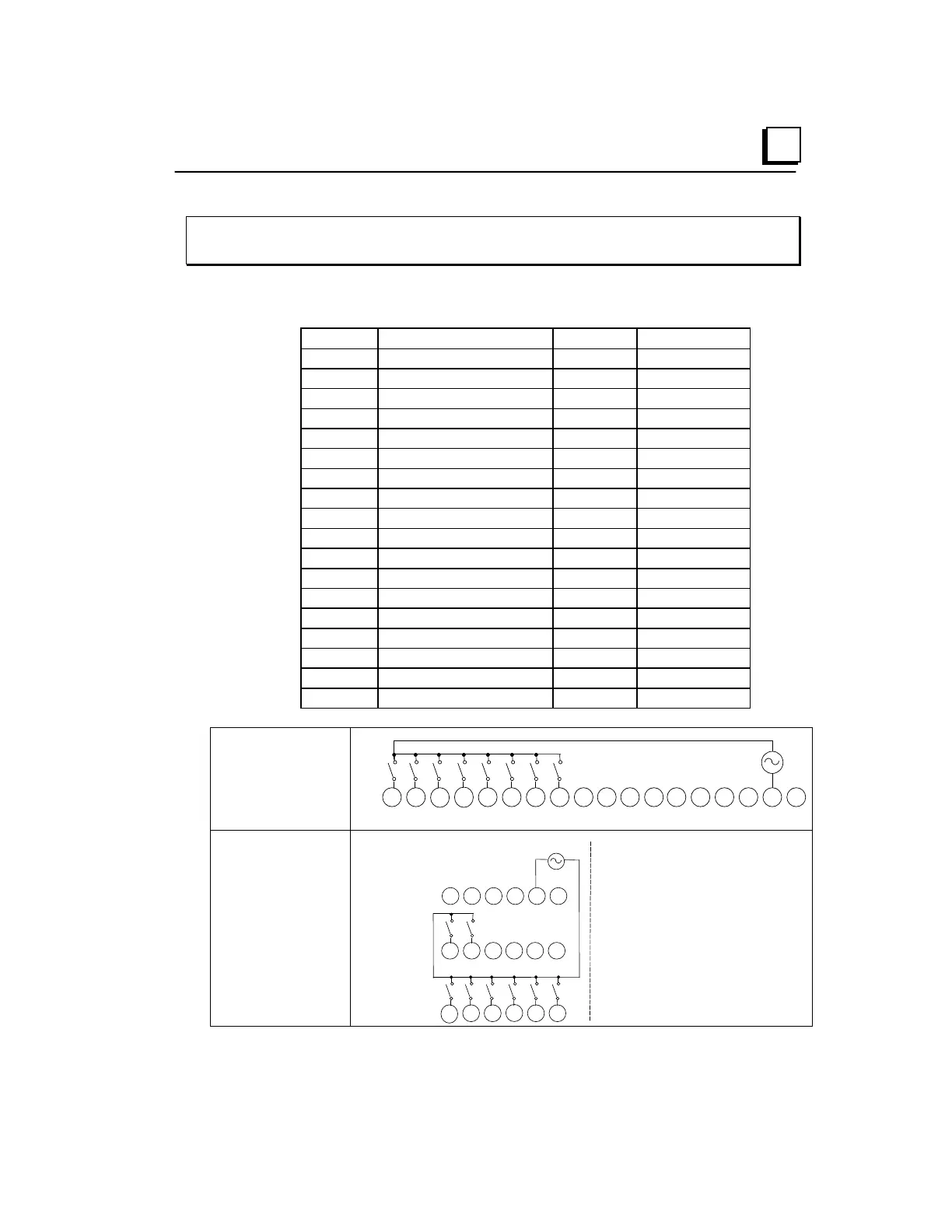

IC200MDL141
Input Module, 240 V AC 8 Points
Field Wiring
Terminal
Connection
Terminal
Connection
A1
Input 1
B1
No connection
A2 Input 2 B2 No connection
A3
Input 3
B3
No connection
A4
Input 4
B4
No connection
A5
Input 5
B5
No connection
A6
Input 6
B6
No connection
A7
Input 7
B7
No connection
A8 Input 8 B8 No connection
A9 No connection B9 No connection
A10
No connection
B10
No connection
A11 No connection B11 No connection
A12
No connection
B12
No connection
A13
No connection
B13
No connection
A14 No connection B14 No connection
A15 No connection B15 No connection
A16
No connection
B16
No connection
A17 Inputs 1-8 Common Return) B17 No connection
A18
No connection
B18
No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
I1
I2
I3
I4
I5
I6
I7
I8
N
H
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
10
A
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
I1
I2
I3
I4
I5
I6
I7
I8
N
H
A
1
2
3
4
5
6
13
14
15
16
17
18
7
8
9
11
12
10
