GFK-1504N Chapter 7 Discrete Input Modules 7-31
7
IC200MDL631
Input Module, 125 V DC Pos/Neg Logic Isolated 8 Points

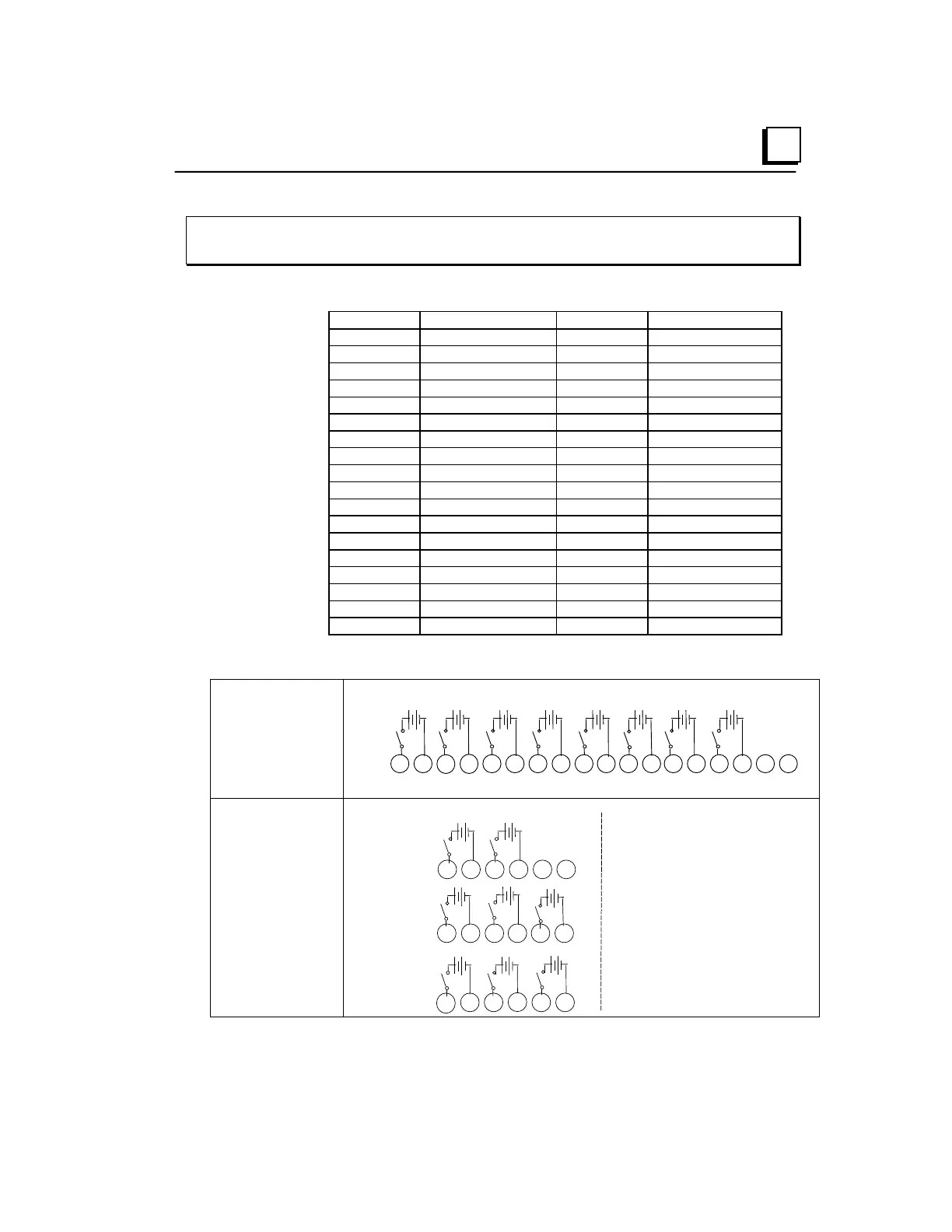

Field Wiring
Terminal
Connection
Terminal
Connection
A1
Input 1
B1
No connection
A2
Input 1 return
B2
No connection
A3
Input 2
B3
No connection
A4
Input 2 return
B4
No connection
A5
Input 3
B5
No connection
A6
Input 3 return
B6
No connection
A7
Input 4
B7
No connection
A8
Input 4 return
B8
No connection
A9
Input 5
B9
No connection
A10
Input 5 return
B10
No connection
A11
Input 6
B11
No connection
A12
Input 6 return
B12
No connection
A13
Input 7
B13
No connection
A14
Input 7 return
B14
No connection
A15
Input 8
B15
No connection
A16
Input 8 return
B16
No connection
A17
No connection
B17
No connection
A18
No connection
B18
No connection
Using a shorting bar with this module eliminates the point-to-point isolation.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
10
I1
I2
I3
I4
I5
I6
I7
I8
A
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
A
1
2
3
4
5
6
13
14
15
16
17
18
7
8
9
11
12
10
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
I1
I2
I3
I4
I5
I6
I7
I8
