8-4 VersaMax Modules, Power Supplies and Carriers User's Manual GFK-1504N
8
IC200MDL329
Output Module, 120 V AC 0.5 A, Isolated 8 Points

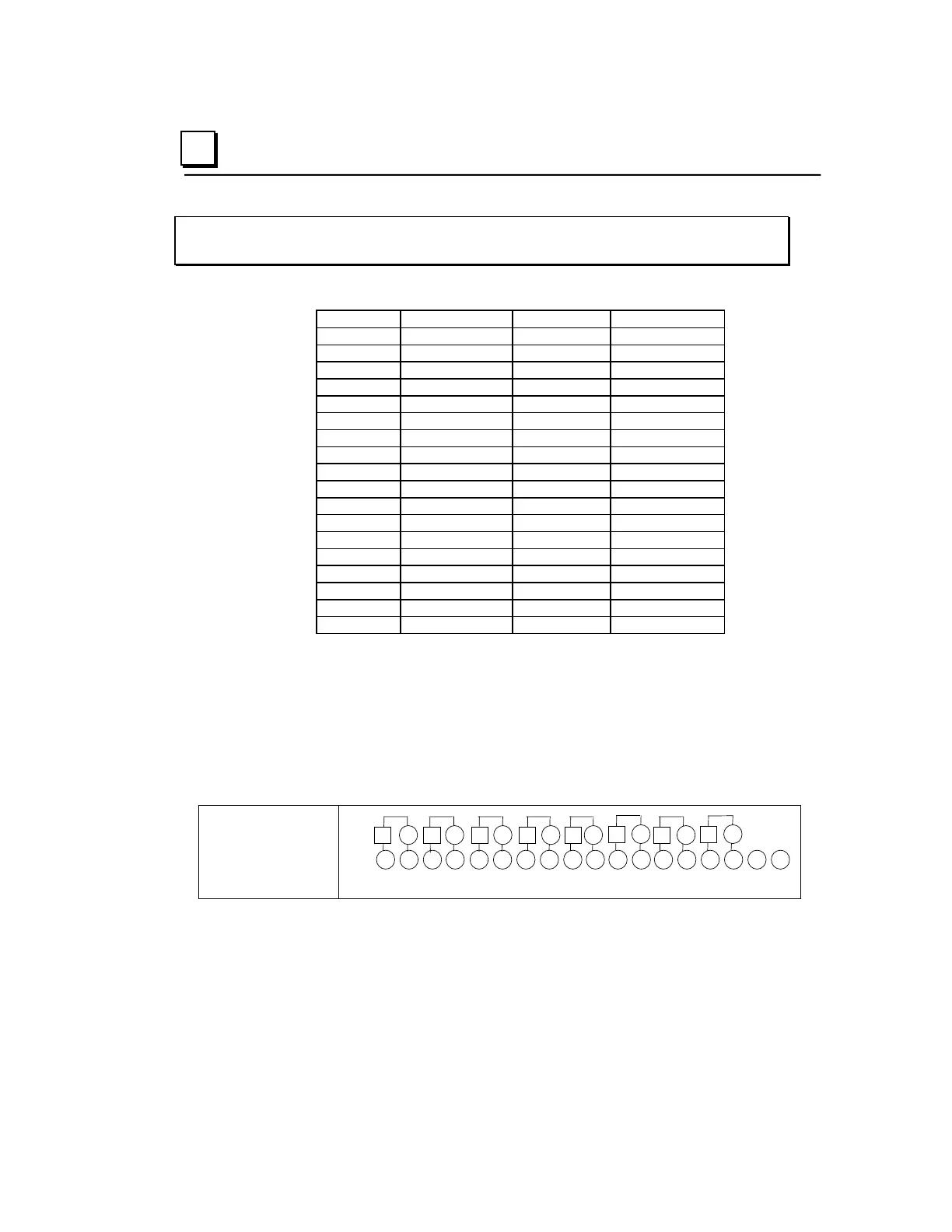

Field Wiring
Terminal
Connection
Terminal
Connection
A1
Output 1
B1
No connection
A2
Output 1 Ret
B2
No connection
A3
Output 2
B3
No connection
A4
Output 2 Ret
B4
No connection
A5
Output 3
B5
No connection
A6
Output 3 Ret
B6
No connection
A7
Output 4
B7
No connection
A8
Output 4 Ret
B8
No connection
A9
Output 5
B9
No connection
A10
Output 5 Ret
B10
No connection
A11
Output 6
B11
No connection
A12
Output 6 Ret
B12
No connection
A13
Output 7
B13
No connection
A14
Output 7 Ret
B14
No connection
A15
Output 8
B15
No connection
A16
Output 8 Ret
B16
No connection
A17
No connection
B17
No connection
A18
No connection
B18
No connection
If additional bussed terminals are needed, the B terminals can be made
available by using a shorting bar. The shorting bar has a maximum current-
carrying capacity of 2A per point. Refer to chapter 2, Installing Wiring for I/O
Devices-Wiring to Inductive Loads, for additional information about using the
shorting bar.
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. Refer to chapter 2, Refer to chapter 2, Installing Wiring for I/O
Devices-Wiring to Inductive Loads,, Installing Wiring for I/O Devices-Wiring to
Inductive Loads.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1
Q2
Q4
Q8
Q3
Q5
Q6
Q7
+
+
+
+
+
+
+
~
~
~
~
~
~
~
~
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
10
A
_
_
_
_
_
_
_
_
+
