GFK-1504N Chapter 8 Discrete Output Modules 8-13
8

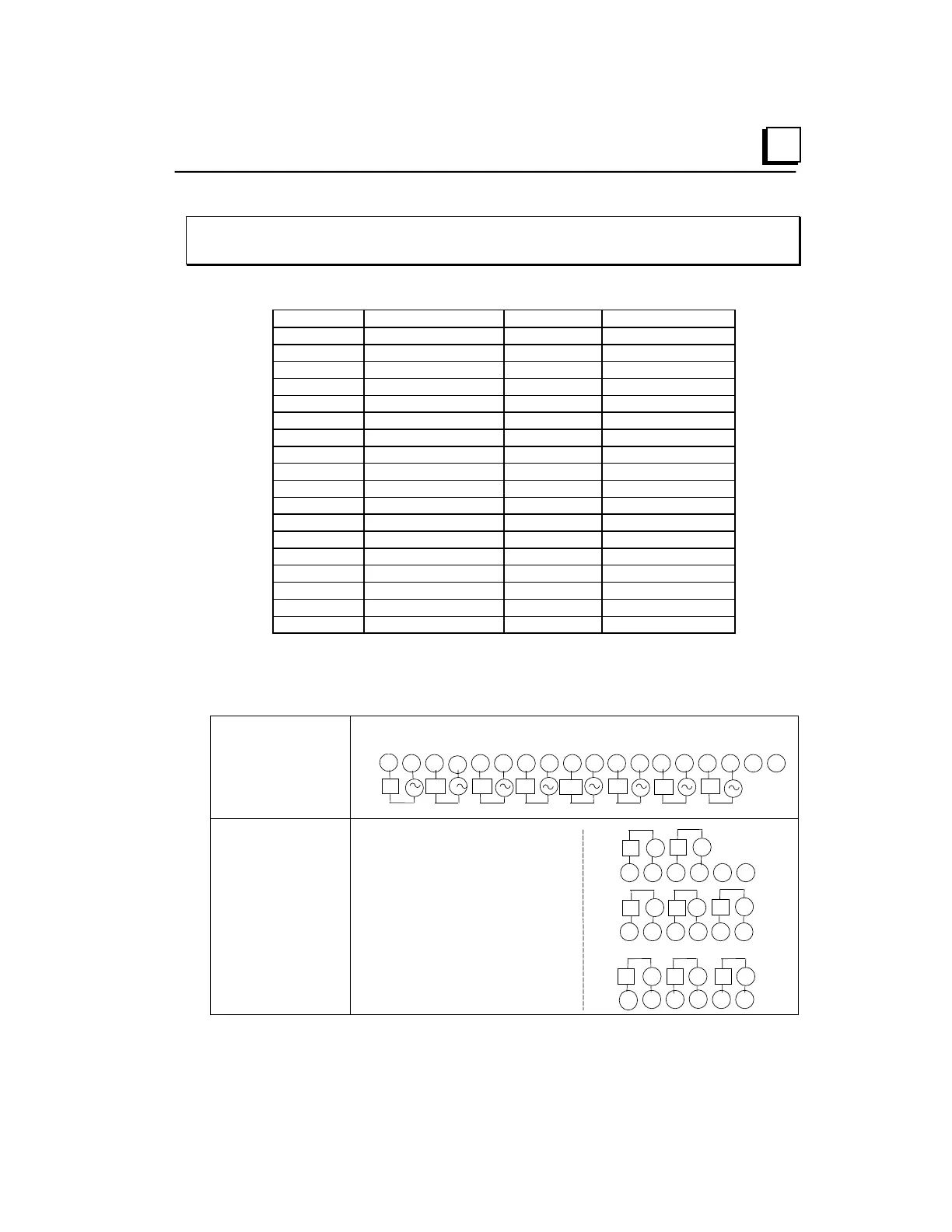

IC200MDL331
Output Module, 120 V AC 2.0 A, Isolated 8 Points
Field Wiring
Terminal
Connection
Terminal
Connection
A1
No connection
B1
Output 1
A2
No connection
B2
Output 1 Ret
A3
No connection
B3
Output 2
A4
No connection
B4
Output 2 Ret
A5
No connection
B5
Output 3
A6
No connection
B6
Output 3 Ret
A7
No connection
B7
Output 4
A8
No connection
B8
Output 4 Ret
A9
No connection
B9
Output 5
A10
No connection
B10
Output 5 Ret
A11
No connection
B11
Output 6
A12
No connection
B12
Output 6 Ret
A13
No connection
B13
Output 7
A14
No connection
B14
Output 7 Ret
A15
No connection
B15
Output 8
A16
No connection
B16
Output 8 Ret
A17
No connection
B17
No connection
A18
No connection
B18
No connection
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. Refer to chapter 2, Installing Wiring for I/O Devices-Wiring to
Inductive Loads.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1
Q2
Q3
Q4
Q5
Q6
Q6
Q8
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
10
B
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
B
1
2
3
4
5
6
13
14
15
16
17
18
7
8
9
11
12
10
Q1
Q2
Q4
Q8
Q3
Q5
Q6
Q7
~
~
~
~
~
~
~
~
