GFK-1504N Chapter 2 Installation 2-13

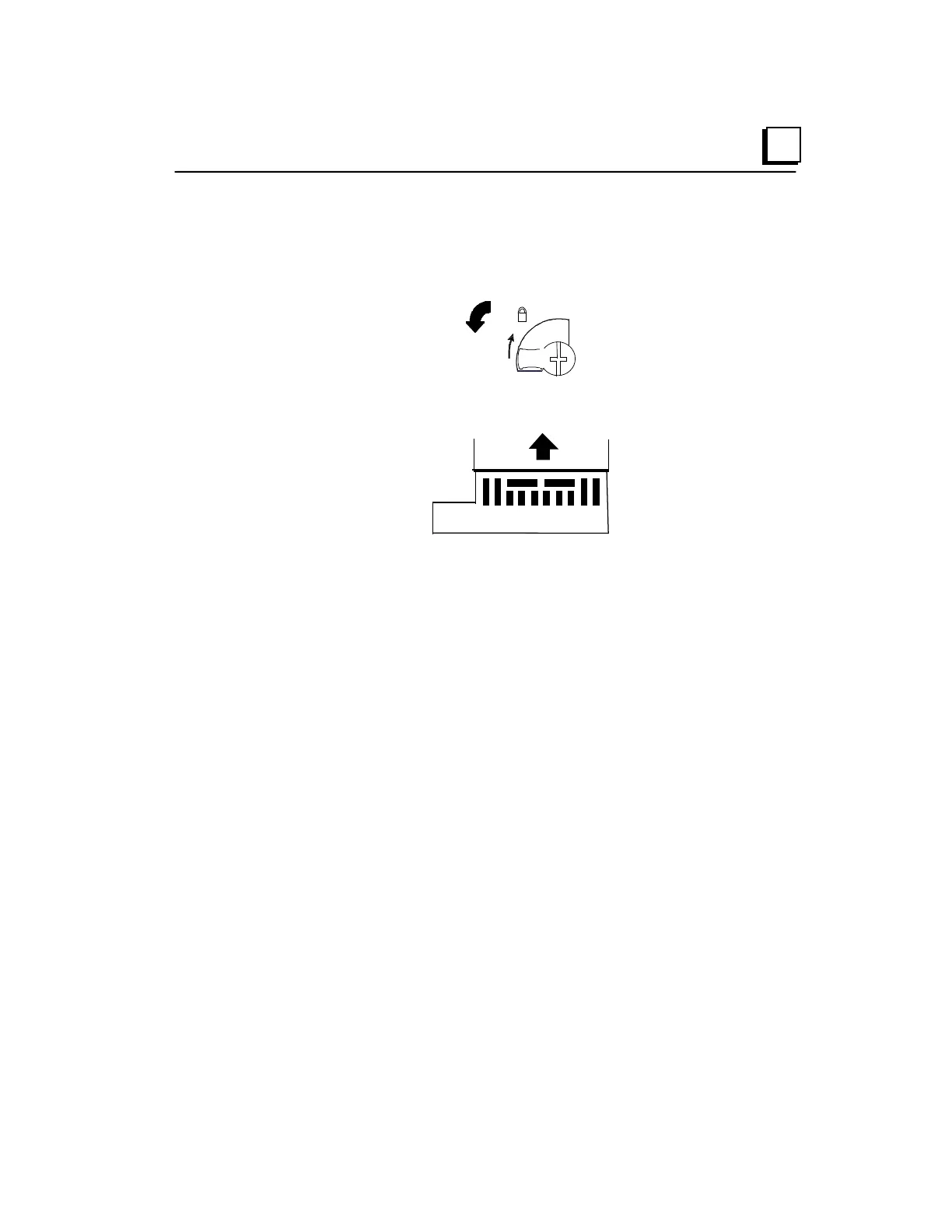

Removing a Power Supply

1. Switch off the external power source to the power supply module.

. Turn the latch to the unlocked position.

. Press in the tabs on the lower edge of the power supply

. Pull the power supply straight off.
