6-14 Section 6-6 - Monitor Operation
6-6-2 Vivid 3N 15" Monitor Operation
Most of the adjustments you make to your monitor will be accessed through the on-screen menu described
in the next section. The Contrast and Brightness features can also be accessed directly from the front of your
monitor, as described in 6-7-1 "Image Quality Calibration for the Vivid 3N 15" Monitor" on page 6-19.
6-6-2-1 On-screen Menu System
Your monitor has an on-screen menu system, accessed by the buttons on the front of your monitor, that
allows you to adjust characteristics of the screen image. Display changes are indicated by on-screen
adjustment icons. Some functions have sub-menus.

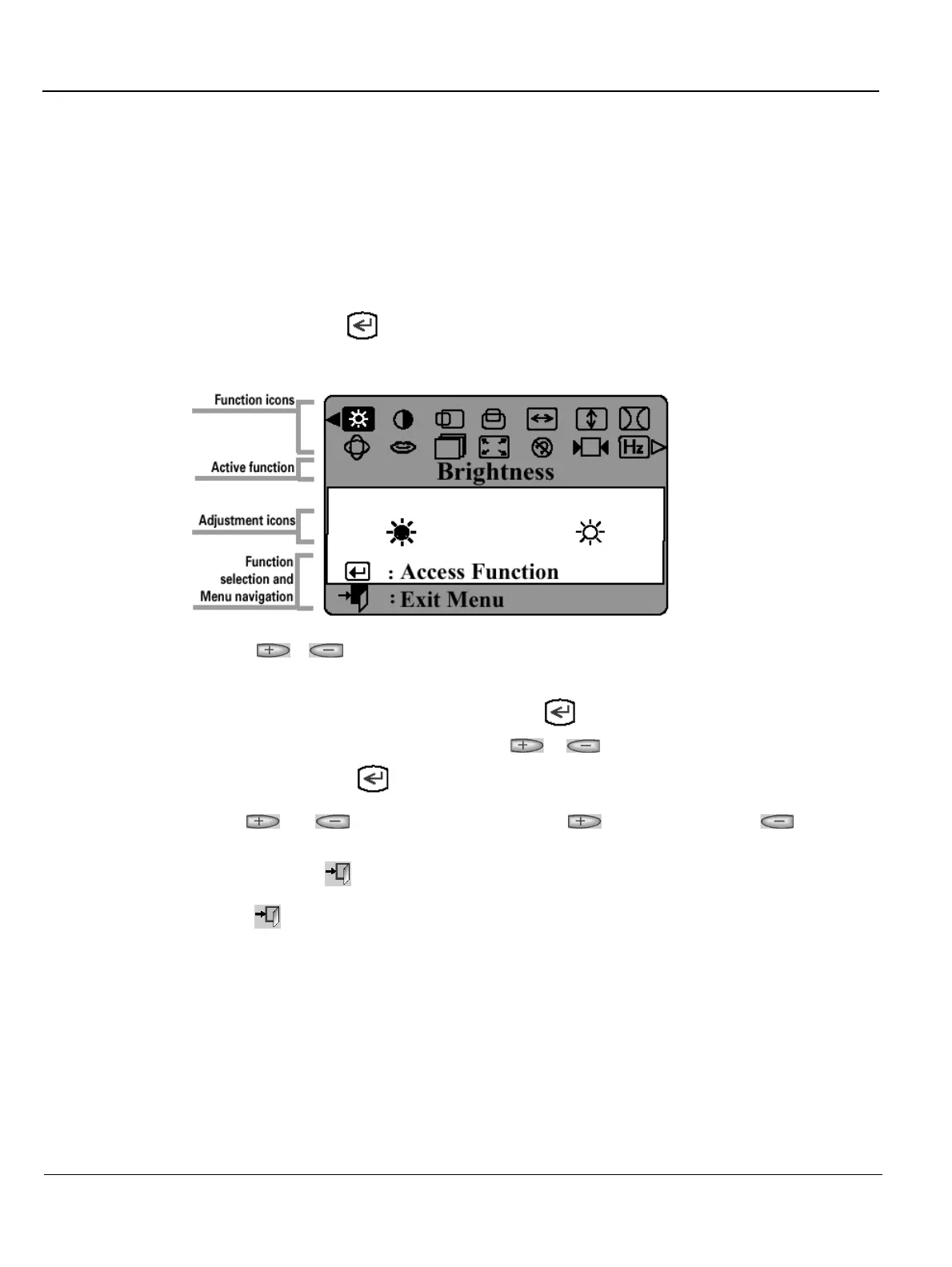

1) Push the menu button to display the main menu. Function icons are arranged across the top
of the on-screen menu.
2) Push the or button to move through the icons.The name of the function will appear below
the rows of function icons.
3) To select a function or open a sub-menu, push the button. The screen will display the options
for adjustment. If there is a sub-menu, use the or button to highlight the feature you want
to adjust, then push the button to select it.
4) Use the and buttons to make adjustments. increases values and decreases
values. On-screen calibration numbers show the effect of your adjustment. If you are in a
sub-menu, use the button to return to the previous menu.
5) Push the button to exit and save your changes.
