IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7-13
7-3-3 Image Port (IMP) Diagnostic Tests
1) Access the FE Diagnostics dialog box, as described in 7-3-1 "Accessing the Front End Diagnostic
Options" on page 7-6.
2) In the FE Diagnostics dialog box, trackball to the IMP tab and press Select,
OR
Trackball to the IMP button in the Data Flow Map and press Select.
The IMP tab is displayed, as shown below:

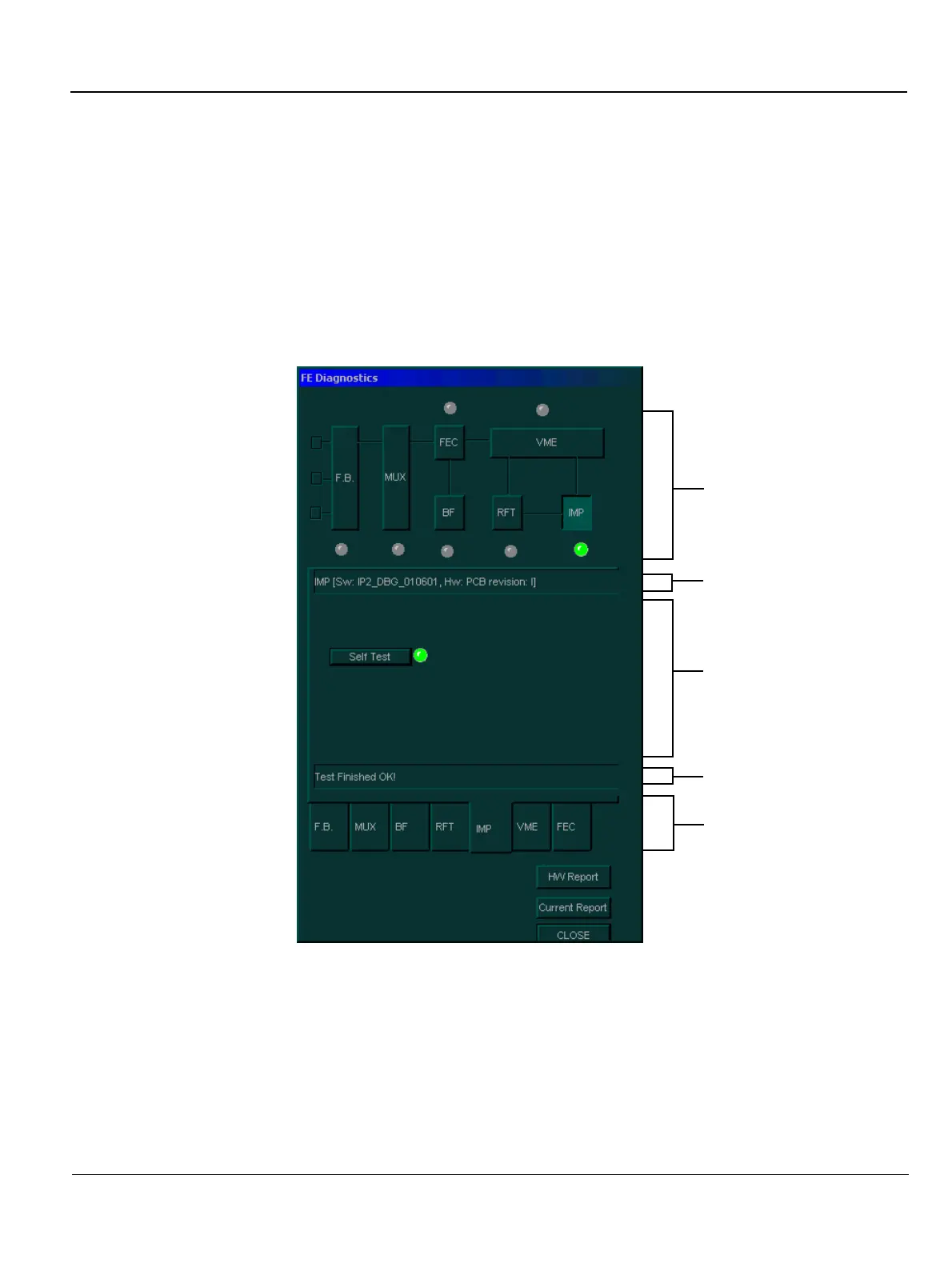

Figure 7-7 IMP Tab - FE Diagnostics Dialog Box
Data Flow Map
Test Description Area
Test Area
Comment Area
Tabs
To Next Page
