GE MEDICAL SYSTEMS
D
IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
8-62 Section 8-5 - Back End Parts Replacement
8-5-2 BEP1 Cover Replacement Procedure
NOTE: BEP1 refers to a Pentium III-based BEP (earlier type).
8-5-2-1 Tools
Use the appropriate flat and Phillips-type screw drivers, as indicated in the Cover & Octopus Card
Holder replacement procedure.
8-5-2-2 Preparation
Shut down the Vivid 3N Pro/Expert ultrasound unit, as described in Chapter 3 - Installation.
8-5-2-3 BEP1 - Left and Right Side Cover Removal Procedure
Note: The procedure is the same for Left and Right side covers.
1) Remove the two screws that hold the cover in position (refer to Figure 8-57 below).
2) Slide the side of the BEP1 backwards and outwards away from the BEP.
8-5-2-4 BEP1 - Left and Right Side Cover Installation Procedure
Note: The procedure is the same for Left and Right side covers.
1) Return the cover and slide it into position on the side of the BEP1.
2.) Replace and tighten the two screws to hold the cover firmly in position (refer to Figure 8-57, above).

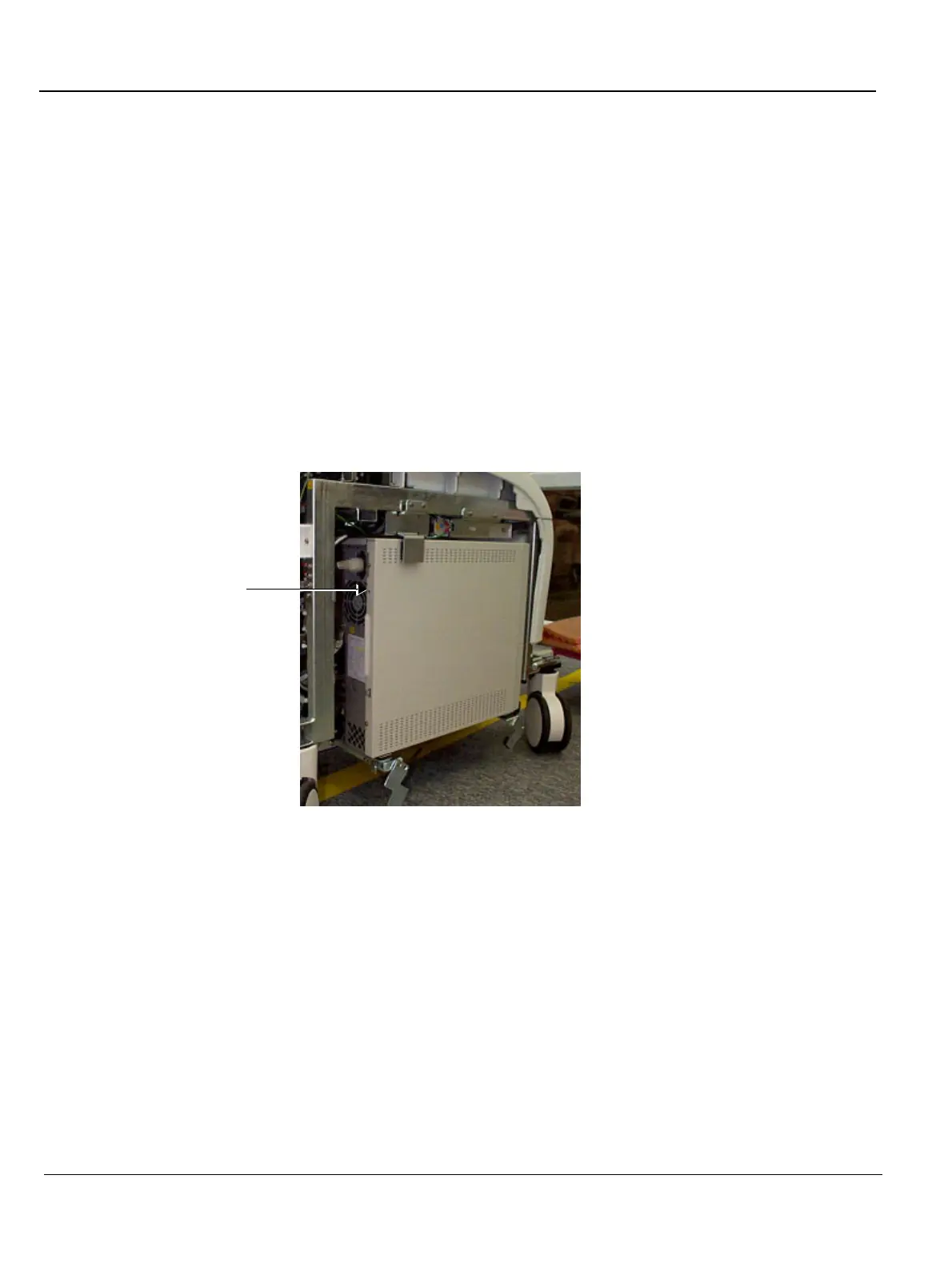

Figure 8-57 BEP1 - Side Cover Screws
Screw
